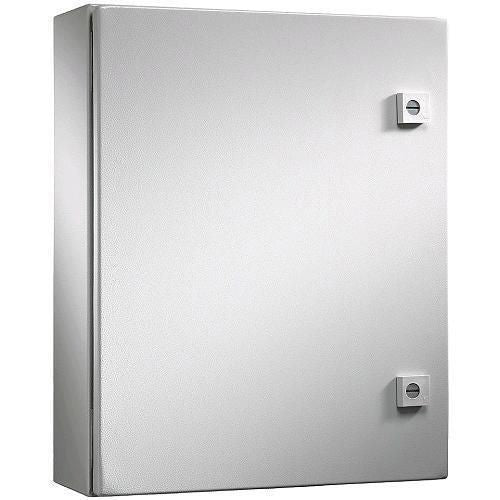

Rittal 8017562 Wm Wall-Mounted Enclosure Single-Door (23.6 inches x 23.6 inches x 9.84 inches)

Product Description

The RITTAL 8017562 WM series single door wallmount enclosure can be used for virtually any application. NEMA protection ratings are ensured through a secure locking system, foamed-in-place gasket and knife-edge perimeter. Features include a cold rolled steel body and door, and a zinc plated mounting panel.

• Secure locking system
• Foamed-in-place gasket
• Cold rolled steel body and door

Product Highlights

The RITTAL WM series ensures NEMA protection through a secure locking system, foamed-in-place gasket, and knife-edge sealing surface.

Product Information

Standard Information

• Brand: RITTAL
• Manufacturer Part Number: 8017562
• Country of Origin: US

Technical Specifications

• Article no.: WM 8017562
• Model no.: WM242410NC
• Material: Door: Carbon steel, all-round foamed-in PU seal Housing: Carbon steel
• Surface finish: Housing and door: Dipcoat primed, powder-coated on the outside, textured paint Mounting panel: Zinc-plated
• Color: RAL 7035
• Supply includes: Housing with door(s) Door hinged on left Mounting plate Rear wall mounting holes Quarter turn latch with slotted head insert
• Width: 23.6 "
• Height: 23.6 "
• Depth: 9.84 "
• Dimensions of mounting plate (W x H): 549 mm x 570 mm
• Protection category NEMA: NEMA 1 NEMA 3R NEMA 4 NEMA 12
• Material thickness - door: 2 mm
• Material thickness - enclosure: 1.5 mm
• Material thickness ">– mounting plate: 2.5 mm
• Cover Type: Concealed Hinged
• Finish: Dipcoat Primed/Powder Coated
• Insulation: Foamed-In PU Seal
• Lock: Quarter-Turn Slotted Latch
• Manufacturer Name: Rittal
• Mounting Type: Wall
• NEMA Rating: NEMA 4/IP66
• Panel Size: 22 x 22 in
• Series: WM Series
• Type: 1-Door Compact
• Enclosure Depth: 9.84"
• Enclosure NEMA Rating: NEMA Type 1
• Manufacturer: Rittal
• Enclosure Width: 23.6"
• Enclosure Height: 23.6"
• Enclosure Composition: Carbon Steel
• Component: Steel Enclosure
• Brand: RITTAL
• Manufacturer Part Number: 8017562
• Application: Industrial and Plant Floor Environment
• Standard & Approvals: UL, cUL Listed, RoHS Complaint
