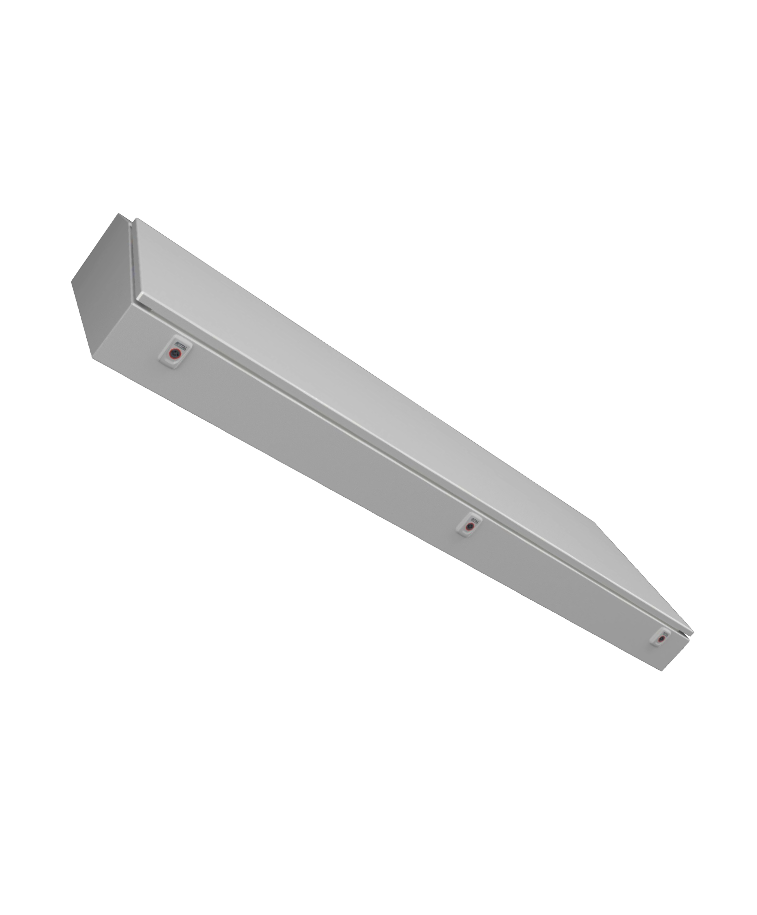

Rittal 6712000 Cx Desk Unit 1200 mm replaces 6712500

Product Description

The RITTAL 6712000 Cx Desk Unit, with four widths, forms the bridge for a two- or three-part construction of the CX desk system. It features an enclosure cover hinged at the rear with automatic locking stays, an opening for cable entry into the enclosure base, and a 3 mm double-bit lock.

• Housing made of 1.5 mm carbon steel
• Console cover made of 2.0 mm carbon steel with foamed-in PU seal
• IP 55 and NEMA 1, NEMA 12 protection categories

Product Highlights

The RITTAL Cx Desk Unit is designed for modular setups of the CX console system, offering a robust and secure housing for desk applications.

Product Information

Standard Information

• Brand: RITTAL
• Manufacturer Part Number: 6712000

Technical Specifications

• Article no.: CX 6712000
• Version: Center section
• Material: Carbon steel
• Surface finish: Housing and cover: Dipcoat primed, powder-coated on the outside, textured paint
• Color: RAL 7035
• Supply includes: Housing Cover hinged at rear, 2 stays with automatic locking. Unlatching automatically on the left, manually on the right Opening for cable entry into the enclosure base Lock: 3 mm double-bit
• Width: 1200 mm
• Depth: 745 mm
• Height, front: 130 mm
• Height rear: 200 mm
• Number of doors: 2
• IK code: IK10
• Protection category IP to IEC 60 529: IP 55
• Protection category NEMA: NEMA 1, NEMA 12
• Base material: Carbon steel
• No. of locks: 3
• Lock version: Cam
• Lock Insert: 3 mm double-bit
• Manufacturer: Rittal
• Component: Desk Unit
• Design: Desk section
• Brand: Rittal
• Part Number #: 6712000
• Type: CX 6712000
• IP rating: IP55
