Rittal 3364100 Heat Exchanger 230 VAC 3412 Btu

Product Description

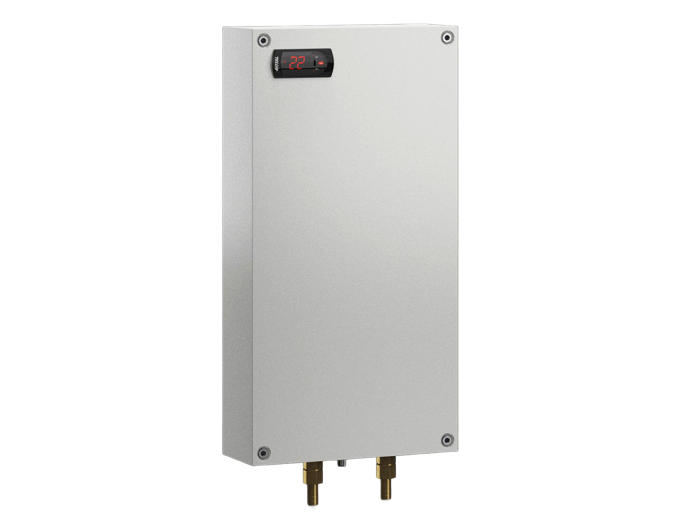

The RITTAL 3364100 heat exchanger is a 1-Phase Air/Water SK Series unit operating at 230 VAC and 50/60 Hz. It features an IP55 enclosure and provides an airflow of 170.7/203.1 cfm with a 3412 Btu capacity. Designed for ambient temperatures from 1 to 70 deg C and pressures from 1 to 10 bar, it supports wall mounting.

• Integral non-return valve for version with e-comfort controller
• Output classes 375 to 5000 W, for use in tough environments
• 170.7 cfm at 50 Hz, 203.1 cfm at 60 Hz

Product Highlights

This Rittal heat exchanger is suitable for use in tough environments, offering convenient mounting and flexible water connection options.

Product Information

Standard Information

• Brand: RITTAL
• Manufacturer Part Number: 3364100

Technical Specifications

• Brand: Rittal
• Part Number #: 3364100
• SKU #: 2208431
• Air Flow Rate: 170.7/203.1 cfm
• Ambient Temperature Rating: 1 to 70 deg C
• Amperage Rating: 0.18 A
• Capacity: 3412 Btu
• Pressure Rating: 1 to 10 bar
• Type: 1-Phase Air/Water
• UNSPSC: 40101802
• Manufacturer Part Number: 3364100
• Nominal Voltage: 240 V
• Power: 37 W
• Composition: Copper/Brass
• NEMA Rating: NEMA 1, NEMA 12, NEMA 3R
• Approvals: CSA, cUL, UL, UR
• Comments: Wall Mount, Light Gray, 3412 BTU
