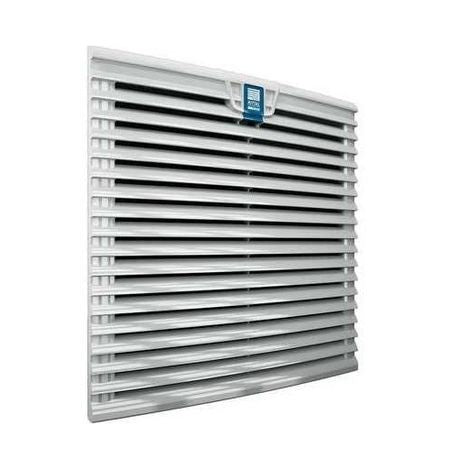

Rittal 3241110 TopTherm 1-Phase Filter Fan Unit 115 VAC 40/42 W

Product Description

The Rittal TopTherm 3241110 is a 1-phase filter fan unit designed for effective climate control solutions. It operates at 115 VAC with a power rating of 40/42 W. This unit generates an airflow of 135.4/147.1 cfm and meets various enclosure standards including NEMA 3, 3R, 4, 4X, 12, IP54, IP55, and IP56.

• Diagonal self-starting shaded pole motor
• Ambient temperature range from negative thirty to fifty-five degrees Celsius
• Complete fan unit for tool-free mounting on surfaces

Product Highlights

This fan unit is ready to install and includes a filter mat. It operates at a frequency of either fifty or sixty Hertz and is suitable for a variety of applications in climate control.

Product Information

Standard Information

• Brand: Rittal
• Manufacturer: Rittal

Technical Specifications

• Power Rating: 40/42 W
• Series: TopTherm
• Enclosure Type: NEMA 3/3R/4/4X/12/IP54/IP55/IP56
• Voltage Rating: 115 VAC
• Amperage Rating: 0.52/0.48 A
• Motor Type: AC
• Sound Level: 54/56 dB
• Mounting Type: Screw/Surface
• Air Flow: 135.4/147.1 cfm
• Dimensions: 10 inches W x 0.98 inches D x 10 inches H
• Standard & Approvals: UL 20130211-E76083, CSA C22.2 No. 14, CAN/CSA C22.2 No. 94, UL508A, RoHS Compliant
