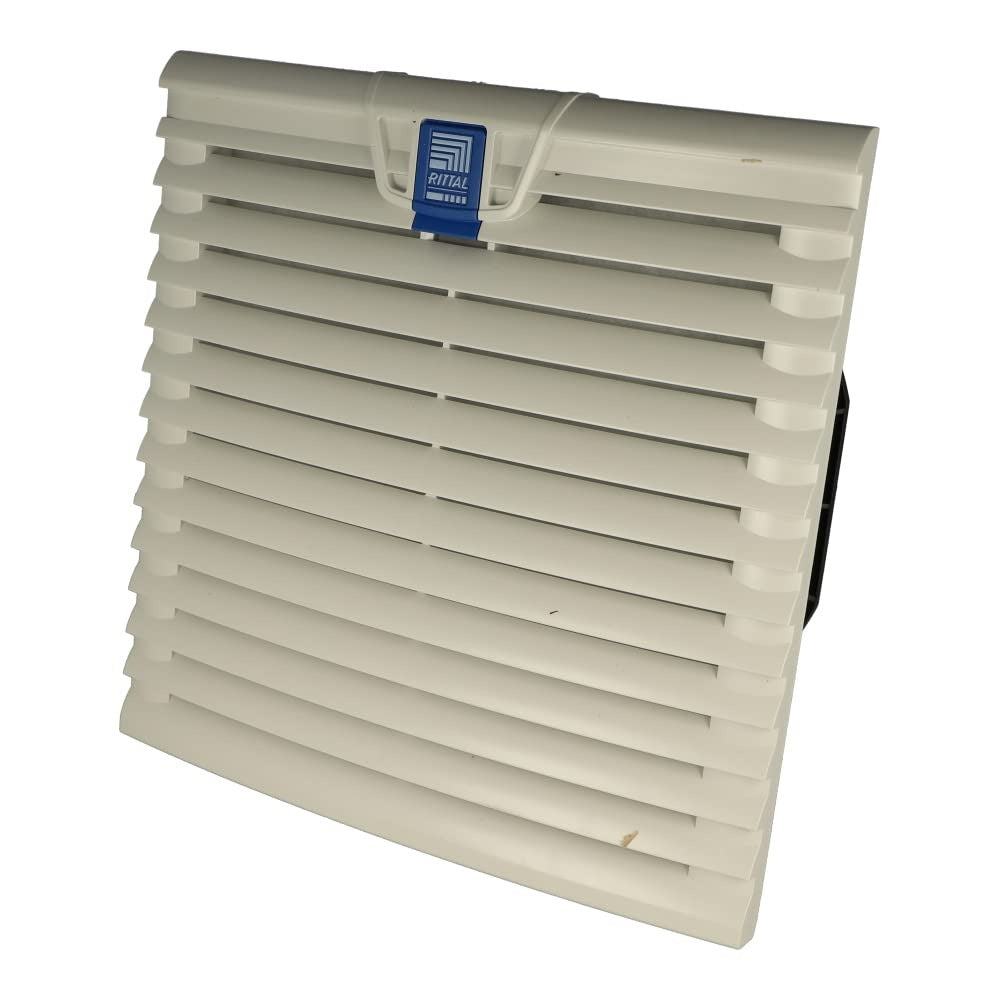

Rittal 3241100 Fan and Filter Unit 230V 46W

Product Description

The RITTAL 3241100 is a TOPTHERM fan and filter unit designed to provide active ventilation and particulate filtration for electrical enclosures and control panels. Operating at 230 volts AC at 50/60 Hz and drawing 46 watts, this unit moves air through the enclosure to prevent heat buildup that can damage sensitive electronics and control components. The reversible airflow direction makes it adaptable to a range of mounting positions and thermal management configurations. Licensed electricians and panel builders install this type of unit as part of enclosure climate control strategies in industrial and commercial settings.

This fan and filter unit is suited for use in electrical enclosures, switchgear panels, and control cabinets where maintaining safe operating temperatures is critical. With an airflow rating of 230 to 250 cubic meters per hour, it is appropriate for medium to large enclosure installations in manufacturing, automation, and commercial electrical applications. It is installed on enclosure cutouts at top or side panel locations to draw cool air in or exhaust heated air out, depending on orientation.

Key Features

• Operates at 230 volts AC, 50/60 Hz for broad mains compatibility
• 46-watt power draw with 230 to 250 cubic meters per hour airflow capacity
• Reversible airflow direction for flexible installation orientation
• Integrated filter media reduces particulate ingress into enclosure interior
• TOPTHERM series design for consistent thermal management performance
• Copper material construction in key internal components

Compatibility

Designed as an OEM-style replacement or direct-fit fan and filter unit for electrical enclosures requiring active 230V AC ventilation with integrated particulate filtration.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC or local electrical code requirements. Disconnect and lock out all power to the enclosure before installing or servicing this unit. Ensure the enclosure cutout dimensions match the unit footprint before mounting, and verify airflow direction is set correctly for the intended intake or exhaust position. Replace the filter media at regular intervals to maintain rated airflow and enclosure protection.
