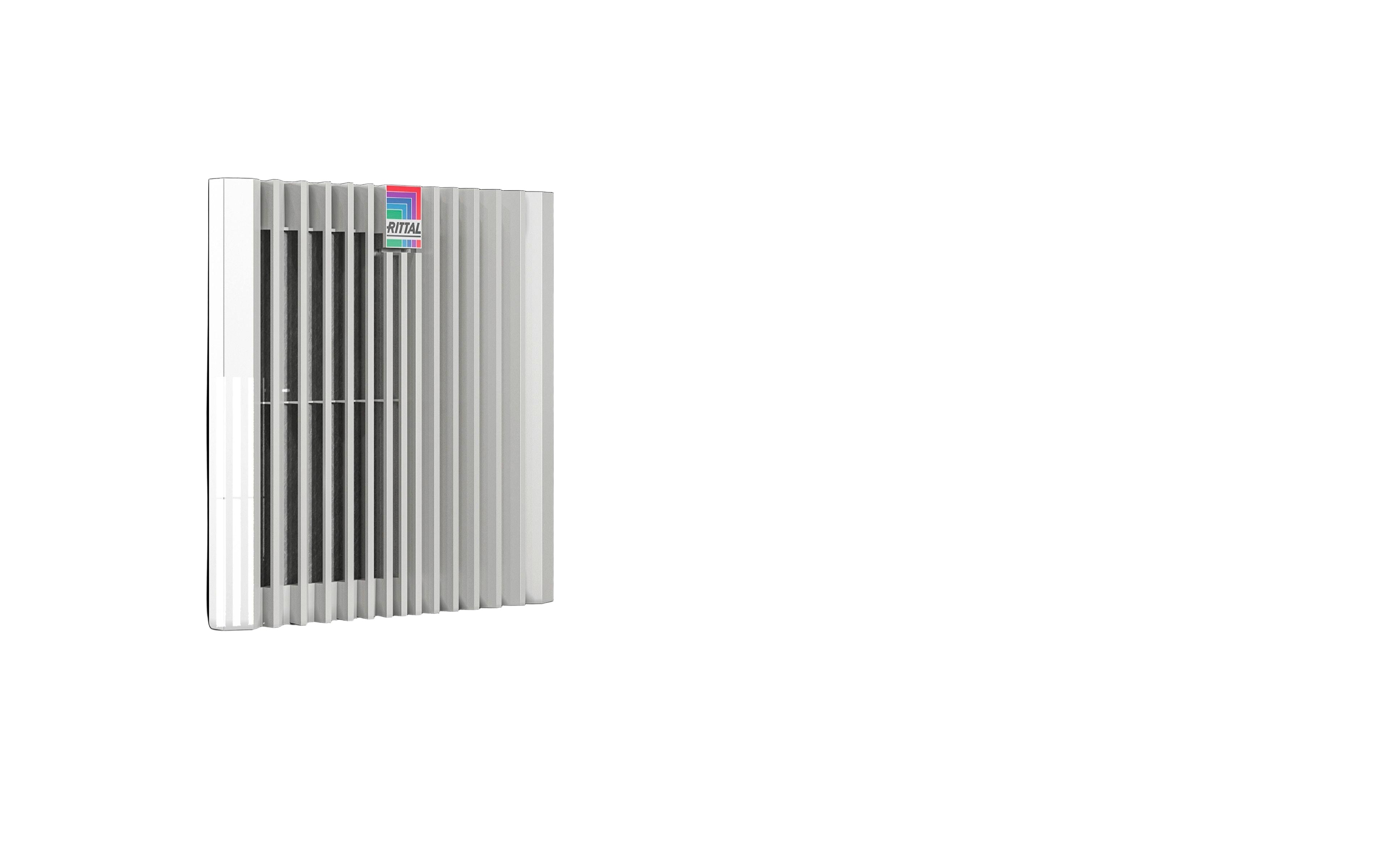

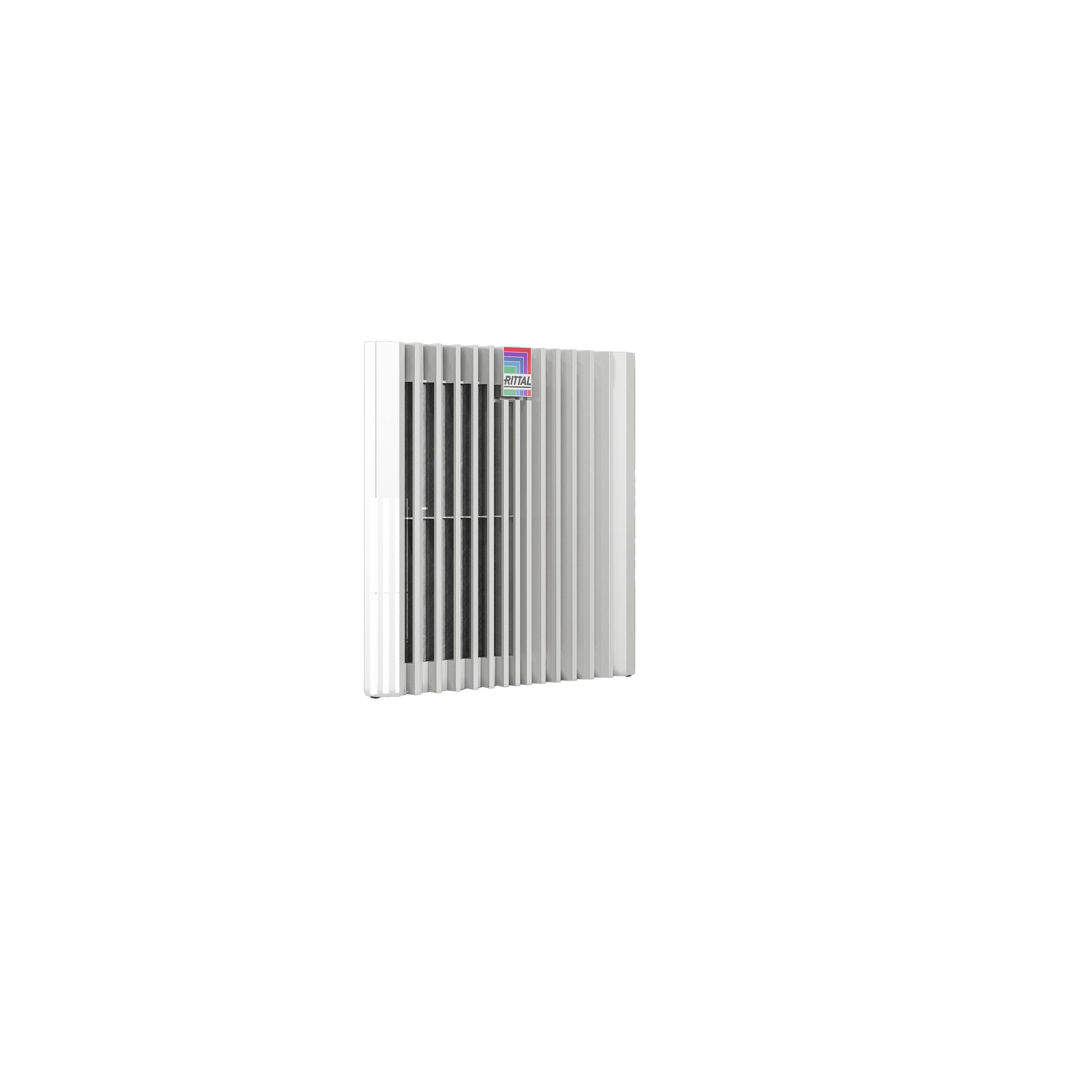

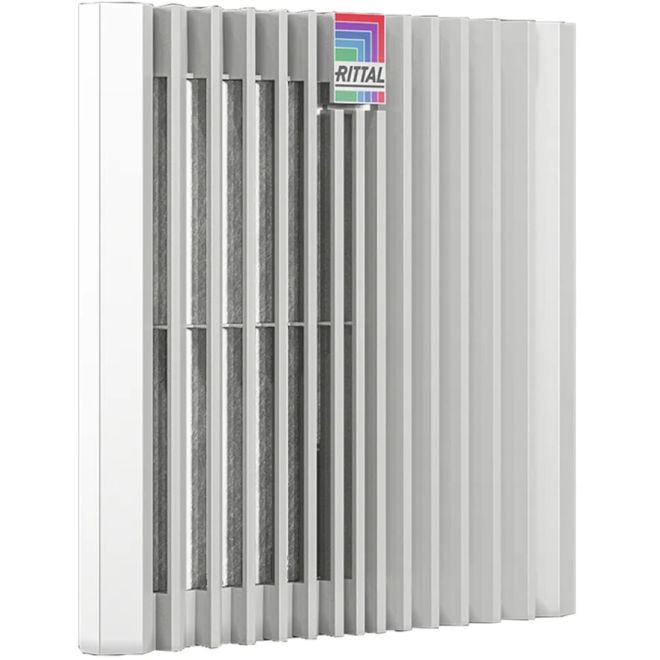

Rittal 3240300 Blue e+ outlet filter 255 x 255 x 45.2 mm (1 pc)

Product Description

The Rittal 3240300 is a Blue e+ outlet filter designed to work with SK series filter fans (models 3240.7xx / 3240.9xx / 3241.7xx / 3241.9xx) to ventilate enclosures and dissipate lost heat by supplying ambient air below the permissible internal temperature. The wall-mounted plastic housing includes a pleated filter element and mounting cut-out and provides tool-free installation and a louvre grille opening mechanism for filter changes.

• Includes pleated filter and mounting cut-out; tool-free mounting with optimized snap hooks and new louvre grille opening mechanism
• Wall-mounted outlet filter compatible with Rittal SK Blue e+ filter fans (3240.7xx / 3240.9xx / 3241.7xx / 3241.9xx)
• Cut-out 224 x 224 mm; overall dimensions 255 x 255 x 45.2 mm; protection ratings IP54/IP55/IP56 and NEMA Type 12/3/3R/4/4X depending on configuration

Product Highlights

Wall-mounted outlet filter with pleated element, tool-free mounting, and multiple IP/NEMA protection options

Product Information

Standard Information

• Brand: RITTAL
• Manufacturer Part Number: 3240300

Technical Specifications

• Brand: Rittal
• Manufacturer Part Number: 3240300
• Manufacturer alternate number: SK 3240.300
• Article Number: SK 3240300
• Series: SK / Blue e+
• Compatibility: Suitable for models 3240.7xx / 3240.9xx / 3241.7xx / 3241.9xx
• Type: Outlet filter (filter fan accessory)
• Mounting Type: Wall-mounted
• Material: Plastic
• Dimensions (W x H x D): 255 x 255 x 45.2 mm (10 x 10 x 1.78 in)
• Cut-out (W x H): 224 x 224 mm (8.82 x 8.82 in)
• Protection (IP to IEC 60529): IP54 with chopped fiber/pleated filter; IP55 with pleated filter and absorber mat; IP56 with chopped fiber/pleated filter and hose-proof hood
• Protection (NEMA): Type 12 with chopped fiber/pleated filter; Type 3, 3R, 4, 4X with chopped fiber/pleated filter and hose-proof hood
• Includes: Outlet filter, pleated filter, mounting cut-out
• Net weight: 0.4 kg
• Gross weight: 0.67 kg
• Packaging unit: 1 pc
• Customs tariff number: 39269097
• EAN (GTIN-13): 4028177998360
• ETIM 9: EC002513
• ETIM 8: EC002513
• ECLASS 8.0: 27180706
• UNSPSC: 39120000
• RoHS Compliance: RoHS compliant
• Product lifecycle: Active (New)
• ECCN: EAR99
• HTSUS: 3926.90.9989
