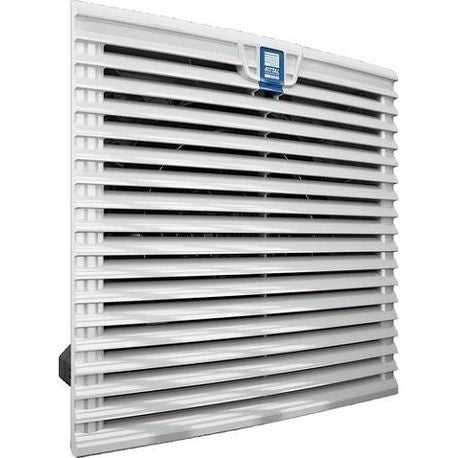

Rittal 3239124 TopTherm Filter Fan Unit 24 VDC 0.23 A 5.5 W Power Rating

Product Description

The Rittal TopTherm Filter Fan Unit, MPN 3239124, is designed for effective climate control solutions in various environments. This unit operates on a voltage of twenty-four VDC and has an amperage of zero point twenty-three A. It provides an airflow of sixty-one point eight cubic feet per minute with a power rating of five point five watts.

• Diagonal DC motor for efficient operation
• Temperature range from -fifteen to fifty-five degrees Celsius
• Tool-free mounting for easy installation

Product Highlights

This fan unit is built to meet NEMA standards, ensuring durability and performance in challenging conditions. It includes a complete installation kit with a filter mat, making it ready to use upon arrival.

Product Information

Standard Information

• Brand: Rittal
• Manufacturer: Rittal

Technical Specifications

• Power Rating: 5.5 W
• Voltage Rating: 24 VDC
• Air Flow: 61.8 cfm
• Amperage Rating: 0.23 A
• Dimensions: 8 in W x 0.94 in D x 8 in H
• Sound Level: 46 dB
• Mounting Type: Screw/Surface
• Enclosure Type: NEMA 3/3R/4/4X/12/IP54/IP55/IP56
