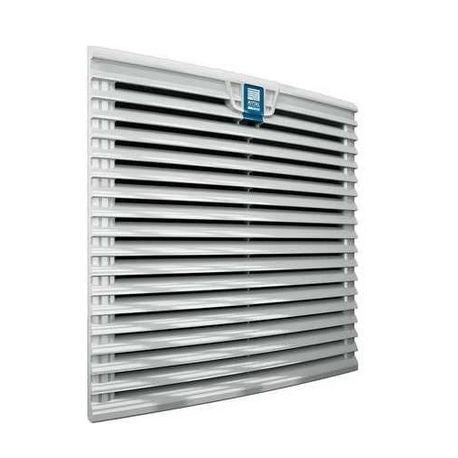

Rittal 3239110 TopTherm 1-Phase Filter Fan Unit 115 VAC NEMA 3/3R/4/4X/12

Product Description

The Rittal TopTherm 3239110 is a filter fan unit designed for efficient climate control. It operates at 115 VAC with a power rating of 19/18 W. The unit features a self-starting shaded pole motor and operates effectively in ambient temperatures from -15 to 55 degrees Celsius.

• Diagonal self-starting shaded pole motor
• Complete fan unit for tool-free mounting on surfaces
• Noise level at 46/49 dB

Product Highlights

This filter fan unit is a complete unit ready to install, including a filter mat. It provides airflow of 61.8/70.6 cubic feet per minute (cfm) and installs easily on surfaces.

Product Information

Standard Information

• Brand: Rittal
• Manufacturer: Rittal

Technical Specifications

• Enclosure Type: NEMA 3/3R/4/4X/12/IP54/IP55/IP56
• Sound Level: 46/49 dB
• Power Rating: 19/18 W
• Series: TopTherm
• Air Flow: 61.8/70.6 cfm
• Amperage Rating: 0.24/0.22 A
• Voltage Rating: 115 VAC
• Dimensions: 8 inches W x 0.94 inches D x 8 inches H
• Mounting Type: Screw/Surface
