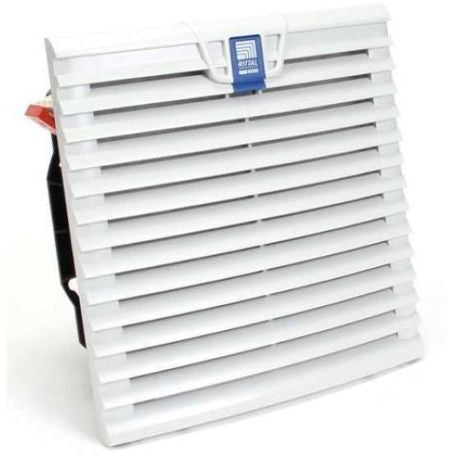

Rittal 3238124 TopTherm Filter Fan Unit 24 VDC 32.4 cfm NEMA 3/3R/4/4X/12

Product Description

The Rittal TopTherm 3238124 Filter Fan Unit is designed for effective air circulation in electronic enclosures. It operates at twenty-four volts DC with a power rating of five point five watts and a current draw of zero point twenty-four amperes. The fan offers an airflow of thirty-two point four cubic feet per minute, making it suitable for climate control applications.

• Self-starting shaded pole motor for reliability
• Temperature range from negative fifteen to fifty-five degrees Celsius
• Completely assembled unit for easy installation

Product Highlights

This fan unit is built to ensure proper ventilation and is ideal for maintaining optimal temperatures in enclosures.

Product Information

Standard Information

• Brand: Rittal
• Manufacturer: Rittal

Technical Specifications

• Motor Type: DC
• Voltage Rating: 24 VDC
• Sound Level: 46 dB
• Amperage Rating: 0.24 A
• Mounting Type: Screw/Surface
• Power Rating: 5.5 W
• Enclosure Type: NEMA 3/3R/4/4X/12/IP54/IP56
• Dimensions: 5.8 in W x 0.63 in D x 5.8 in H
• Air Flow: 32.4 cfm
• Minimum Order Quantity: 1
• Standard & Approvals: UL 20130211-E76083, CSA C22.2 No. 14, CAN/CSA C22.2 No. 94, UL508A, RoHS compliant
• Application: Climate Control Solutions
