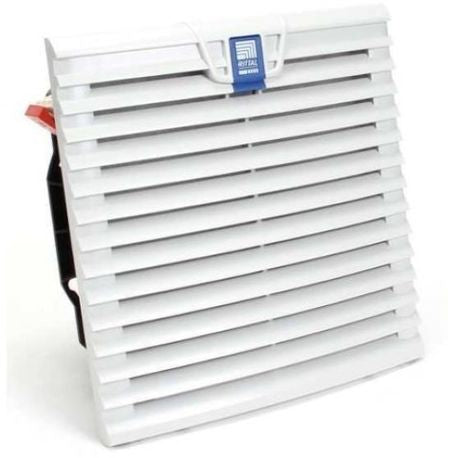

Rittal 3238110 TopTherm 1-Phase Filter Fan Unit 115 VAC 19/18 W

Product Description

The Rittal TopTherm 3238110 is a reliable 1-phase filter fan unit designed to provide optimal climate control in various environments. With a voltage rating of 115 VAC and power ratings of 19/18 watts, this unit ensures efficient airflow and is suitable for multiple applications.

• Features a diagonal self-starting shaded pole motor.
• Operates efficiently in ambient temperatures ranging from -15 to 55 degrees Celsius.
• Includes a complete fan unit ready for tool-free mounting.

Product Highlights

This unit provides a maximum airflow of 32.4/38.8 cfm, meeting diverse cooling needs in various settings. The Rittal TopTherm is compliant with NEMA 3/3R/4/4X/12/IP54/IP56 standards, ensuring reliable performance in harsh environments.

Product Information

Standard Information

• Brand: Rittal
• Manufacturer: Rittal

Technical Specifications

• Voltage Rating: 115 VAC
• Power Rating: 19/18 W
• Amperage Rating: 0.24/0.22 A
• Dimensions: 5.8 in W x 0.63 in D x 5.8 in H
• Air Flow: 32.4/38.8 cfm
• Sound Level: 46/49 dB
• Mounting Type: Screw/Surface
• Enclosure Type: NEMA 3/3R/4/4X/12/IP54/IP56
• Minimum Order Qty: 1
• UNSPSC: 40101604
