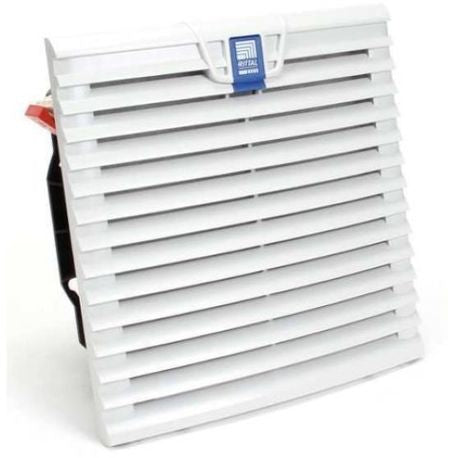

Rittal 3237110 TopTherm 1-Phase Filter Fan Unit 115 VAC NEMA 3/3R/12/IP54/IP56

Product Description

The Rittal TopTherm 3237110 is a 1-phase filter fan unit designed for effective climate control. It operates on 115 VAC and features an amperage rating of 0.12/0.1 A. This unit provides a power rating of 11/9 watts and offers an air flow of 11.8/14.7 cubic feet per minute (cfm). The enclosure complies with NEMA 3, 3R, 12, IP54, and IP56 standards, ensuring durability and reliability in various environments.

• Operates at ambient temperatures from -15 to 55 degrees Celsius.
• Tool-free mounting for easy installation.
• Includes a filter mat for efficient air filtration.

Product Highlights

The TopTherm fan unit is an ideal solution for applications requiring reliable climate control.

Product Information

Standard Information

• Brand: Rittal
• Manufacturer: Rittal

Technical Specifications

• MPN: 3237110
• Voltage Rating: 115 VAC
• Dimensions: 4.6 inches W x 0.63 inches D x 4.6 inches H
• Air Flow: 11.8/14.7 cfm
• Motor Type: AC
• Sound Level: 38/43 dB
• Amperage Rating: 0.12/0.1 A
• Power Rating: 9/11 W
• Mounting Type: Screw/Surface
• Enclosure Type: NEMA 3/3R/12/IP54/IP56
• Standard & Approvals: UL 20130211-E76083, CSA C22.2 No. 14, CAN/CSA C22.2 No. 94, UL508A, RoHS Complaint
