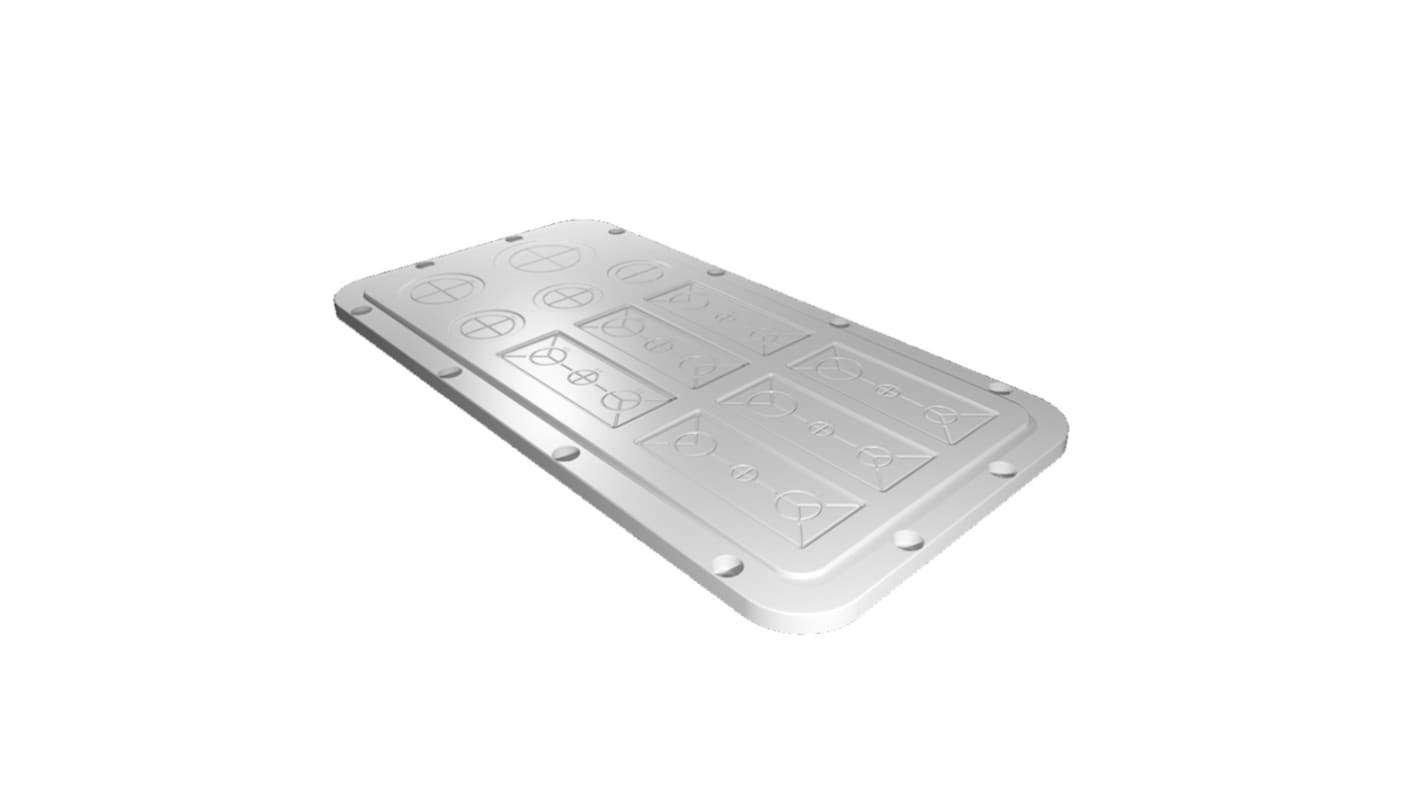

Rittal 2567200 sz plastic gland plates for ax, 436x221 mm

Product Description

The RITTAL 2567200 SZ plastic gland plates are designed for AX enclosures, facilitating cable entry. The plastic knockouts allow for easy cable gland installation. Additional rectangular cut-outs and reinforcement frames allow direct installation. Suitable for gland plate size 7.

• Simply break through the plastic on the knockouts for cable glands.
• Additional rectangular cut-outs and reinforcement frames allow the cable gland to be installed directly (modular).
• Note: The allocation of gland plate sizes is indicated on the relevant enclosures

Product Highlights

The Rittal plastic gland plate has 436x221 mm dimension and IP 66 protection category.

Product Information

Standard Information

• Brand: RITTAL
• Manufacturer Part Number: 2567200
• Country of Origin: DE

Technical Specifications

• Material: Plastic to UL 94-V0
• Color: RAL 7035
• Number of rectangular cutouts information: 1x rectangular cutout takes 10 sealing inserts, small
• Number of rectangular cutouts: 6
• Note: The assignment of the flange plate size can be found on the respective housings
• No. of metric knockouts: 4 × M12 5 × M16 5 × M20 4 × M25 3 × M32 1 × M40 1 × M50
• Width: 436 mm
• Depth: 221 mm
• Suitable for: Enclosure type: AX Gland plate Size: 7
• Operating temperature range: -40 °C...80 °C ( -40 °F...176 °F )
• Protection category IP to EN 60 529: IP 66 if correctly installed
• Type rating according to UL 50E: Type 1 Type 12
• Packaging unit: 1 pc(s).
• Net weight: 0.58 kg
• Gross weight: 0.601 kg
• Customs tariff number: 39269097
• EAN: 4028177938458
• ETIM 9: EC000211
• ETIM 8: EC000211
• ECLASS 8.0: 27142421
• Brand: Rittal
• Part Number #: 2567200
• SKU #: 2390984
• UNSPSC: 46182103
• UPC: 00063988991611
• Component: Gland Plate
• Manufacturer: Rittal
• Gland Plate Width: 8.7"
• Gland Plate Height: 17.2"
• Product Type: Gland Plate
• Thickness: 436mm
• Number of Holes: 28
• Length: 221mm
• Mounting plate type: Plain
• For Use With: AX
• Standards/Approvals: UL 94-V0, eClss 6.0/6.1:27189190, eClss 8.0/8.1:27142421, ETIM 6.0:EC000211, ETIM 7.0:EC000211, IP 66
• Execution: Membrane
• Type: just
• Surface protection: untreated
• Knockouts: no
• Number of connector openings: 103
• Thread: without
• Suitable for thread dimension metric/PG: 5..110
• Dim: (L x W) 221 mm x 436 mm
