Rittal 2537100 Mini-comfort Handle Cam Lock Ax Kx Series

Product Description

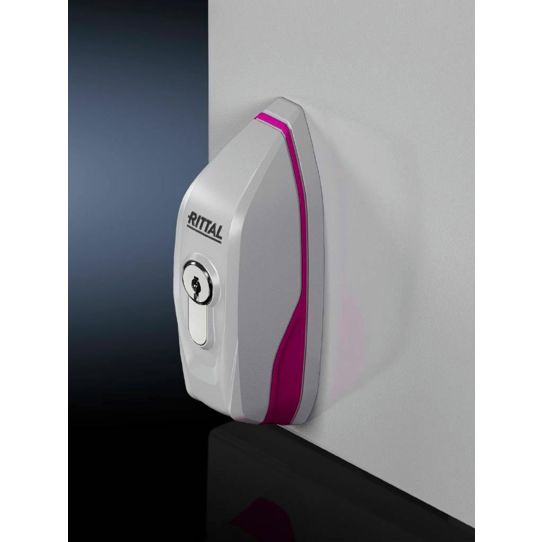

The RITTAL 2537100 is a mini-comfort handle with integrated cam lock designed for compact and modular electrical enclosures. Constructed from die-cast zinc with a powder-coated finish in RAL 7035 light gray, this handle provides a durable, corrosion-resistant closure point for enclosure doors. When unlocked, the handle folds outward and pivots to allow the door to open, combining access control and door operation in a single fitting. It is sized to accept 40 mm and 45 mm lock inserts, semi-cylinders, and compatible lock systems. Licensed electricians, panel builders, and enclosure technicians are the typical installers.

This handle is designed for use with RITTAL AX series compact enclosures as well as KX series E-Box enclosures and VX partial doors. It suits industrial, commercial, and OEM panel-build applications where a compact, lockable handle is required on smaller enclosure formats. The 40/45 mm lock insert compatibility makes it straightforward to standardize across multiple enclosure types within the same installation or facility.

Key Features

• Integrated cam lock mechanism for secure enclosure closure and access control
• Unlocked handle folds outward and pivots to open the door in a single motion
• Accepts 40 mm and 45 mm lock inserts, semi-cylinders, and standard lock systems
• Die-cast zinc construction with powder-coated finish for durability
• RAL 7035 light gray finish matches standard industrial enclosure aesthetics
• Compact mini-comfort profile suited to smaller enclosure formats

Compatibility

Designed for use with RITTAL AX series compact enclosures with 40 mm or 45 mm lock inserts, semi-cylinders, or the AX lock system, as well as KX series E-Box enclosures and VX partial doors.

Installation Notes

Installation is performed by qualified electricians or panel technicians. De-energize all circuits and lock out the enclosure before servicing door hardware. Verify that the lock insert or semi-cylinder being installed matches the 40 mm or 45 mm cam lock opening before final assembly. Follow applicable NEC and local electrical code requirements for enclosure integrity and access control on live panel installations.

Technical Specifications

• Material: Die-cast zinc, powder coated
• Color: RAL 7035
• Lock Insert Compatibility: 40 mm and 45 mm
• Country of Origin: Germany
• UPC: 639889915534

Standard Information

• Brand: RITTAL
• Manufacturer Part Number: 2537100
