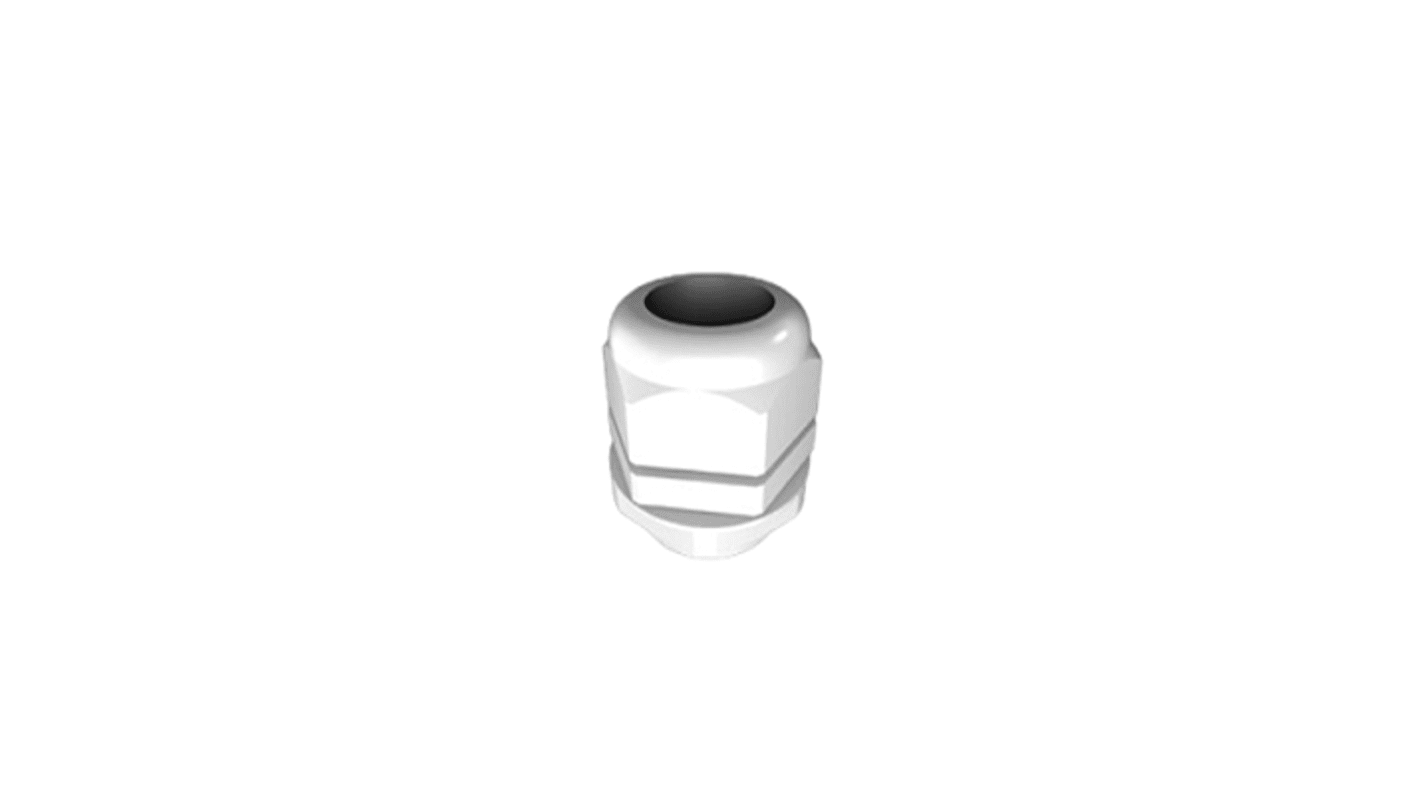

Rittal 2411661 SZ Cable Gland M50x1,5 (30-38 mm)

Brand: RITTAL
SKU: 2411661
Availability: Out Of Stock
$107.84
$107.84
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The RITTAL 2411661 SZ cable gland, made of polyamide, is designed for cables with a diameter of 30-38 mm. Integrated clamping membranes ensure reliable tightening and strain relief to protect the cables. The gland and lock nut are sold together in a single pack, saving on ordering and storage.

  • Clamping membranes for even tightening and strain relief to protect the cables
  • Gland and lock nut are sold together in a single pack
  • Reliable tightening and strain relief

Product Highlights

This polyamide cable gland features integrated clamping membranes for secure cable protection and strain relief.

Product Information

Standard Information

  • Brand: RITTAL
  • Manufacturer Part Number: 2411661
  • Country of Origin: Romania
Technical Specifications
Material
Polyamide 6
Seal
CR/NBR
Colour
RAL 7035
IP protection category to IEC 60 529
IP 68 (5 bar, 30 min)
Height
53.5 mm
Thread
M50 x 1.5
Thread length
18 mm
Min. cable diameter
30 mm
Max. cable diameter
38 mm
Operating temperature range
-30 ```json,
string
Rittal SZ Series Grey Polyamide Cable Gland, M50 Thread, 38 mm min., 30 mm max., IP68
Packed Quantity
5
Range
SZ
Degree of protection (IP)
IP68 (5bar,30min)
Alternative Product SKU
2411661
Barcode
4028177809949
Thread Size
M50
Product Type
Cable Gland
Maximum Cable Diameter
30mm
Minimum Cable Diameter
38mm
Series
SZ
IP Rating
IP68
Locknut Included
Yes
Hazardous Area Certification
No
Minimali darbinė temperatūra
-20°C
Maksimali darbinė temperatūra
-20°C
Standards/Approvals
No
Width across flats
60 mm
torque
12 Nm
Type rating to UL 50E
Type 1, Type 4, Type 4X, Type 12, Type 13
Packs of
5 pc(s).
Net weight
0,535 kg
Gross weight
0,541 kg
Customs tariff number
39269097
EAN
4028177809949
ETIM 9
EC000441
ETIM 8
EC000441
ECLASS 8.0
27149109
Minimum Operating Temperature
-20°C
Maximum Operating Temperature
-20°C
