Rittal 1576000 E-Box KX Sheet Steel (380x300x155mm) Replacement 1030.500

Brand: RITTAL
SKU: 1576000
Availability: In Stock

Ships same day if ordered by 12 pm
$100.67
$100.67
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

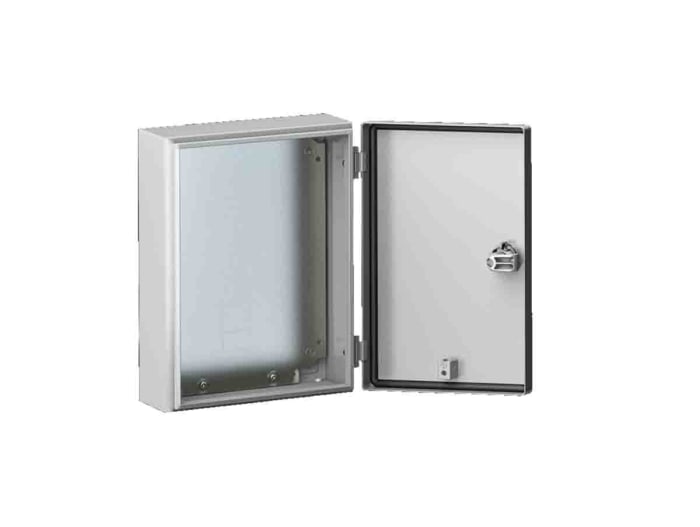

The RITTAL 1576000 E-Box KX is a small sheet steel enclosure offering ease of assembly and flexibility in lock system selection. Constructed from sheet steel with a foamed-in PU seal, it features a dipcoat primed, powder-coated finish. Designed for wall mounting, this enclosure is suitable for various industrial applications.

  • Offers remarkable ease of assembly
  • Offers flexibility when selecting lock systems
  • All enclosure panels may be taken directly from the packaging, without dismantling and machined

Product Highlights

The RITTAL E-Box KX provides a robust and versatile enclosure solution with easy assembly and secure mounting options.

Product Information

Standard Information

  • Brand: RITTAL
  • Manufacturer Part Number: 1576000
  • Country of Origin: Germany
Technical Specifications
Material
powder-coated painted Carbon steel Carbon steel door with all-round foamed-in PU seal
Surface finish
Enclosure and door: Dipcoat primed, powder-coated on the outside, textured paint Mounting plate: Zinc-plated
Colour
RAL 7035
Supply includes
Housing with door, Mounting panel, Cam lock with 3 mm double-bit insert, 180 hinge
Protection category NEMA
NEMA 1, NEMA 3R, NEMA 4, NEMA 12
Protection category to IEC 60 529
IP 66
Type rating to UL 50E
Type 1, Type 3R, Type 4, Type 12
IK Code
IK08
Dimensions mounting plate (W x H)
365 mm x 275 mm
Material thickness - enclosure
1.25 mm
Material thickness - door
1.25 mm
Material thickness of mounting plate
2 mm
Lock
3 mm Double-Bit Cam
Basic material
Sheet steel
Depth
155 mm
Electrical Ratings
1000 V AC/1500 V DC
Finish
dipcoat-primed & outside powder-coated textured paint housing / door Zinc-plated mounting plate
Insulation
Foamed-In PU Seal
Mounting Type
Wall
NEMA Rating
NEMA 4
Series
KX
Temperature Rating
-20 to 80 deg C
Type
Small
Design
hinged door 1 cam lock (3mm double-bit insert) mounting plate
Ratings
IP66, NEMA 1,3R,4,12
Thickness (mm)
(door) 1.25 mm (enclosure) 1.25 mm (mounting plate) 2 mm
Equivalent to
KX 1576.000
Replaces
1030.500
Shock protection (IK)
IK08
IP Rating
IP66
Mounting plate
Yes
External Height
300mm
External Depth
155mm
Body Material
Sheet Steel
External Width
380mm
Standards/Approvals
UL
