Description

Product Description

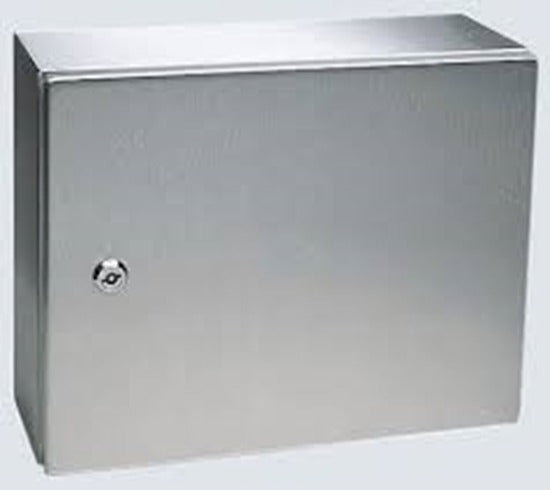

Rittal 1012600 is a wall-mounted AE stainless steel enclosure designed to protect electrical and electronic components in harsh environments. The unit is constructed from stainless steel 1.4301 (AISI 304) with a brushed finish and an all-round foamed-in PU seal, and it includes a zinc-plated mounting plate. The enclosure provides IP66 / NEMA 4X ingress protection and IK08 impact resistance for external wall mounting.

  • Construction: stainless steel 1.4301 (AISI 304) with brushed finish; mounting plate (carbon steel, zinc-plated) included
  • Protection ratings: IP66 to EN 60529, NEMA 4X, IK08; door seal: foamed-in PU
  • Dimensions and access: 600 x 760 x 210 mm (W x H x D); single door with two cam locks (3 mm double-bit); door opening approx. 130°

Product Highlights

Stainless steel wall enclosure AE, IP66/NEMA 4X, 600 x 760 x 210 mm, mounting plate included, cam lock access

Product Information

Standard Information

  • Brand: RITTAL
  • Manufacturer Part Number: 1012600
  • Country of Origin: Germany
Technical Specifications
Brand
Rittal
MPN
1012600
Series
AE
Material
Stainless steel 1.4301 (AISI 304)
External Width
600 mm
External Height
760 mm
External Depth
210 mm
External Dimensions (W x H x D)
600 x 760 x 210 mm
Mounting Type
Wall-mounted (external mounting via brackets)
Internal Mounting Type
Panel (mounting plate included)
Mounting Plate Dimensions
549 mm x 730 mm
Mounting Plate Material
Carbon steel, zinc-plated
Supply Includes
Housing with door(s), mounting panel, lock (3 mm double-bit)
Number of Doors
1
Number of Locks
2
Lock Type
Cam
Lock Insert
3 mm double-bit
Surface Finish
Brushed, grain 400, peak-to-valley height < 0.8 µm
Protection (IP)
IP66 (to EN 60529)
Protection (NEMA)
NEMA 4X
Impact Protection (IK)
IK08
Door Opening Angle
Approximately 130°
Transparent Door
No
Chassis Plate
No
Gland Plate
No
Fixing Kit
No
Net Weight
28.5 kg
Gross Weight
30 kg
Country of Origin
Germany
Standards/Certifications
UL, CSA, CUL, TUV, VDE
ETIM
EC000261
ECLASS
27180101
Packaging Unit
1 pc(s)
