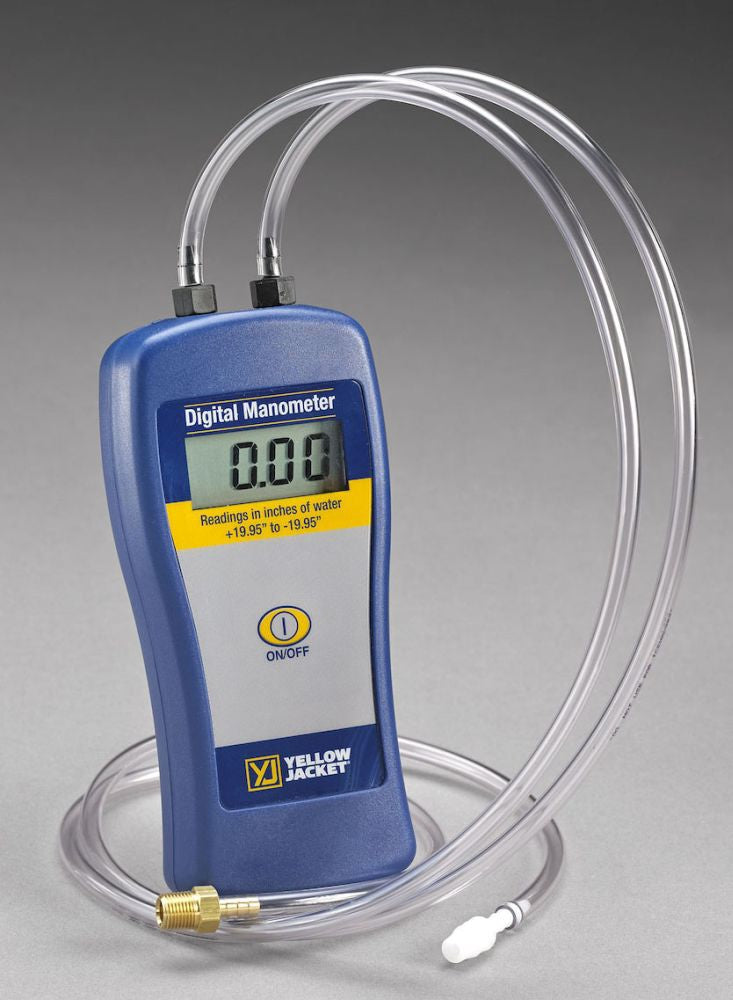

Ritchie Engineering 78052 Digital Electronic Manometer -19.55 to 19.95 WC

Product Description

The Ritchie Engineering 78052 is a portable digital electronic manometer designed for HVAC applications. It measures pressure from -19.55 to 19.95 inches of water column (WC). This manometer is equipped with a large LCD display and has an automatic shut-off feature for energy efficiency.

• Portable and rugged design
• Accuracy of +/-1.5 percent
• Includes essential accessories like tubing and fittings

Product Highlights

This device is simple to use, featuring single-button operation and clear readings that enhance workflow in the field.

Product Information

Standard Information

• Part Number: 78052
• Manufacturer: Ritchie Engineering

Technical Specifications

• Pressure Rating: -19.55 to 19.95 inches WC
• Display Type: Large LCD
• Operation Type: Automatic Shut-Off, Single Button
• Water Column Resolution: 0.05 inches
• Accuracy: +/-1.5 percent (+/-0.3 inches of water)
• Includes: 30 inch tubing, clear hose, tube splice, and 1/8 inch threaded brass fitting
• Battery Type: 9V
• Application: HVAC
