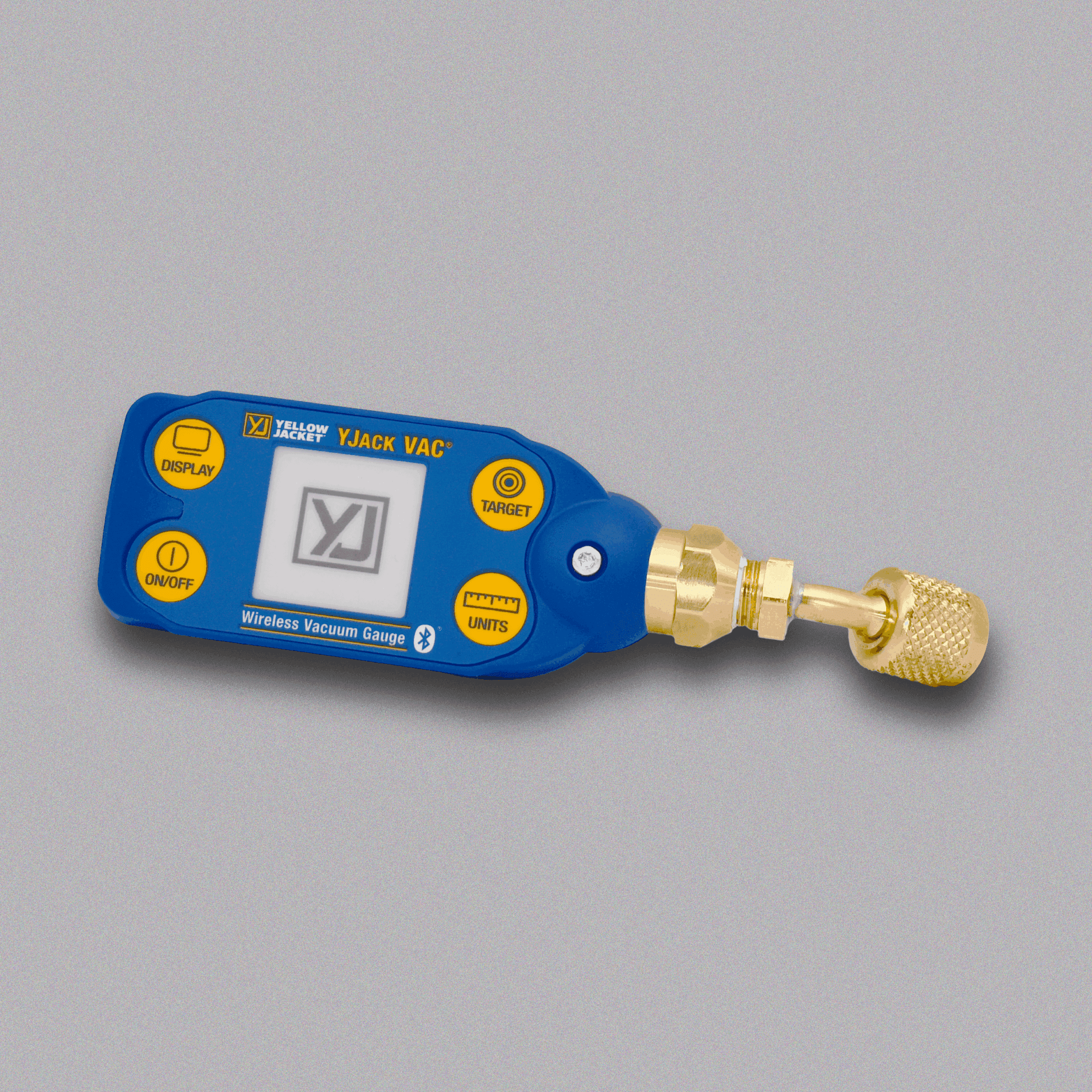

RITCHIE ENGINEERING 67066 Yellow Jacket YJACK VAC Wireless Vacuum Gauge 1 Micron 1/4 Quick Connect

Product Description

The Ritchie Engineering 67066 Yellow Jacket YJACK VAC Wireless Vacuum Gauge provides a complete solution for vacuum measurement in HVAC applications.

• Measures vacuum from atmospheric pressure down to one micron.
• Robust sensor design that resists damage from pressure shock.
• Compatible with YJACK VIEW App for remote monitoring.

Product Highlights

This gauge features an electronic paper display for clear readings in various lighting conditions. Users can connect the gauge via Bluetooth to compatible devices for effortless operation.

Product Information

Standard Information

• Brand: Ritchie Engineering
• Model: YJACK 67066

Technical Specifications

• Measuring Range: 1 micron-atmospheric pressure overall; 1-760,000 microns with YJACK VIEW App; 1-99,999 microns on integrated display
• Accuracy: ± 20% RDG (10-25,000 microns)
• Pressure Rating: 450 PSI (Proof)
• Display Type: Electronic Paper
• Fitting Size: 1/4 inch
• Connection Type: 1/4 Quick Connect at 45 degrees
• Battery Type: AAA (included)
• Battery Life: 240 hours with power-saving mode
• Operating Temperature: 32-104 °F
• Storage Temperature: -4-122 °F
• Line of Sight Bluetooth Range: 1000 ft for units with serial number YJVAC-2434-9755 or later
