Ritchie Engineering 49511 yellow jacket lig fill pressure gauge 3-1/2 in

Product Description

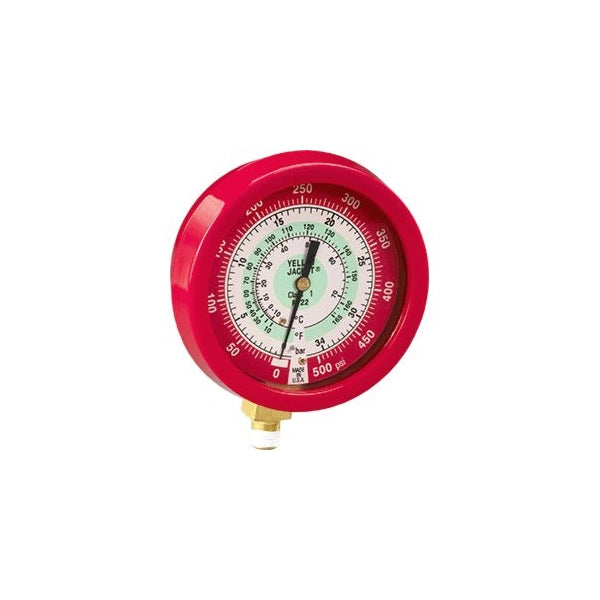

The RITCHIE ENGINEERING 49511 is a Yellow Jacket series glycerin liquid-filled analog pressure gauge designed for servicing R-22-based systems. This 3-1/2 inch (90 mm) diameter gauge provides 1% accuracy (Class 1) and features a 1/8" NPT male connection, ensuring steady readings and extended life by protecting against pulsation and vibration.

• Liquid-filled with glycerin for maximum protection from pulsation and vibration.
• High accuracy calibration to 1% (Class 1) for precise measurements.
• Large 3-1/2 inch (90 mm) diameter dial with color-coded scales for R-22 refrigerant.

Product Highlights

Durable, liquid-filled gauge with 1% accuracy for R-22 system servicing.

Product Information

Standard Information

• Brand: RITCHIE ENGINEERING
• Manufacturer Part Number: 49511
• Country of Origin: US

Technical Specifications

• Gauge Color: Red (High Side)
• Gauge Fill Type: Liquid-Filled (Glycerin)
• Pressure Range: 0 to 500 PSI (0 to 34 Bar)
• Connection Size: 1/8" NPT Male
• Dial Diameter: 3-1/2 inches (90 mm)
• Accuracy: 1% (Class 1)
• Temperature Rating: 0°F to 122°F (-18°C to 50°C)
• Units Measured: Celsius, Fahrenheit, PSI, Bar
• Product Line: Yellow Jacket
