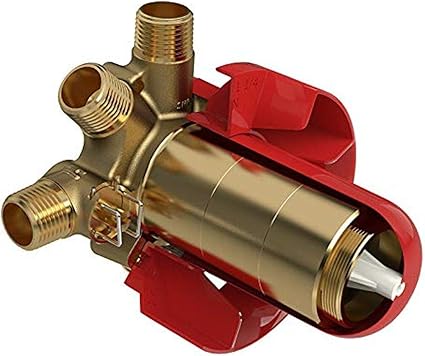

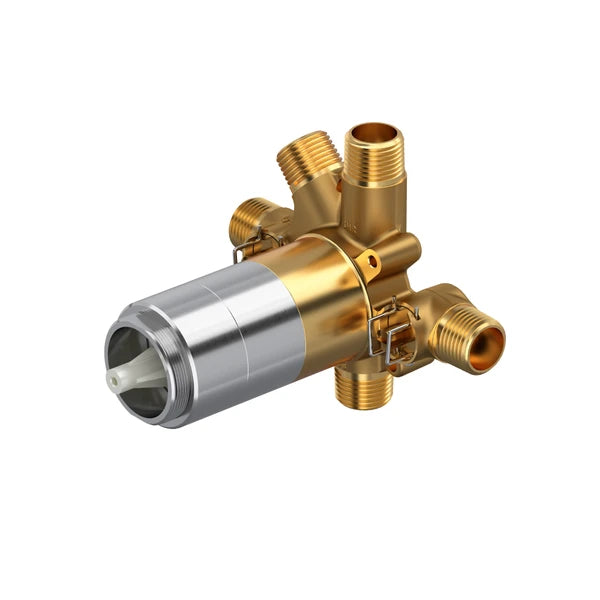

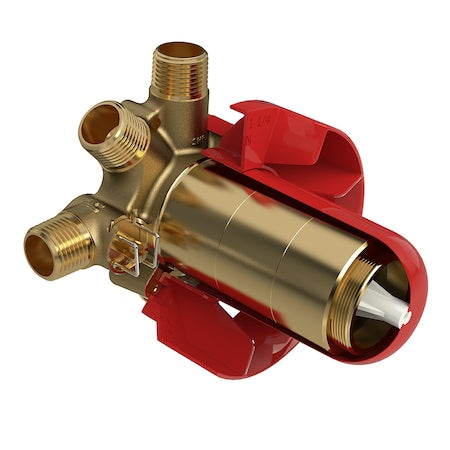

Riobel R45 Therm & Pressure Balance Rough-In Valve With Up To 5 Functions

Product Description

The Riobel R45 thermostatic and pressure balance rough-in valve supports up to 5 functions. It combines thermostatic and pressure balance technologies in one valve. The valve delivers volume control, temperature memory and multi-function capability all from one valve. Solid brass construction delivers durability and long-lasting performance.

• Delivers volume control, temperature memory and multi-function capability all from one valve, simplifying installation and eliminating clutter to deliver the customized experience you desire
• Combines both thermostatic and pressure balance technologies in one valve
• No need to plumb in a separate shut-off or diverter valve, allowing for a more streamlined shower design with less clutter on the wall

Product Highlights

Thermostatic valve pressure balance rough-in with service stop that allows the valve to be serviced without shutting off the water supply.

Product Information

Standard Information

• Brand: RIOBEL
• Manufacturer Part Number: R45
• Country of Origin: Canada

Technical Specifications

• product type: ROUGHS
• style: Transitional
• prop 65: No
• ansi approved: No
• asme approved: No
• csa approved: No
• flow rate: 6.3 gpm at 60 psi
• material: Brass
• ada compliant: No
• Inlet Connection Size: 0.5 Inches
• Inlet Connection Type: National Pipe Tapered
• Outlet Connection Type: National Pipe Tapered
• Number of Ports: 5
• Outlet Connection Size: 0.5 Inches
• Specification Met: ASSE, ASTM, CSA, IAPMO, NSF, UPC
• Brand: Riobel
• MFR Part No: R45
• TSCO Part Number: 180153
• Recommended inlet connection: 1/2 in NPT
• Compatible with: all Riobel trims ending in -45 for shared and -47 for non-shared functionality, sold separately
• Standard Approvals: PROP65
• Domestic/Import: Import
• Finish: Unfinished
• Flow Rate: 6.3 gpm
