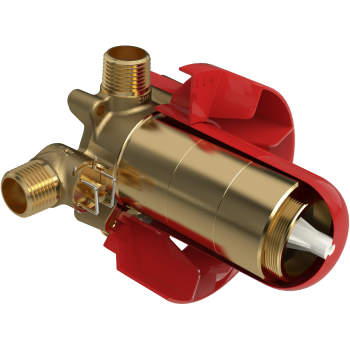

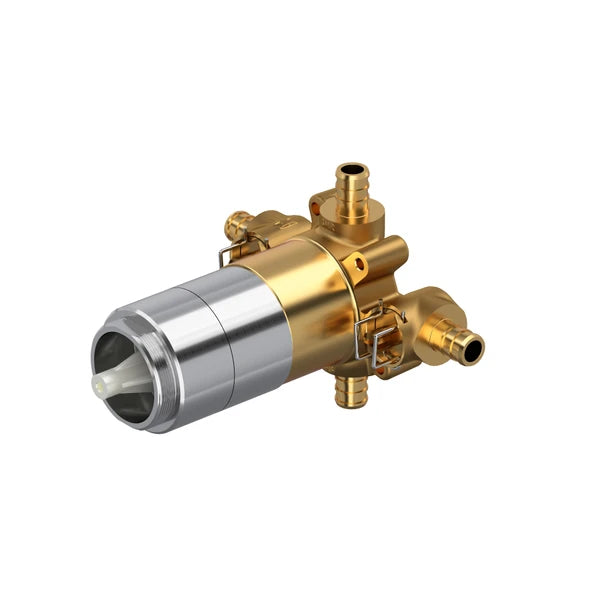

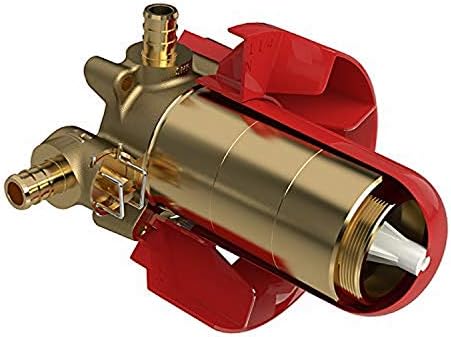

Riobel R23 2-way type t/p coaxial valve rough

Product Description

The RIOBEL R23 is a 2-way Type T/P (thermostatic/pressure balance) coaxial valve rough. It delivers volume control, temperature memory and multi-function capability all from one valve, simplifying installation. It combines both thermostatic and pressure balance technologies in one valve. Solid brass construction delivers durability and long-lasting performance.

• Delivers volume control, temperature memory and multi-function capability all from one valve
• Combines both thermostatic and pressure balance technologies in one valve
• Solid brass construction delivers the utmost in beauty, durability and long-lasting performance

Product Highlights

This coaxial valve rough features a test cap and service stop, allowing the valve to be serviced without shutting off the water supply.

Product Information

Standard Information

• Brand: RIOBEL
• Manufacturer Part Number: R23

Technical Specifications

• Brand: Riobel
• Part Number: R23
• product type: ROUGHS
• style: Transitional
• prop 65: Yes
• ansi approved: No
• asme approved: No
• csa approved: No
• flow rate: 6.3
• material: Brass
• ada compliant: No
• Exterior Finish: Solid brass
• Inlet Connection Type: Cross Linked Polyethylene
• Outlet Connection Type: PEX
• Number of Ports: 3
• Outlet Connection Size: 0.5 Inches
• Specification Met: Prop 65
• Number of Packs: 1
• Thread Type: PEX
• Connector Type: PEX
• Thread Size: 1/2"
• Valve Type: Thermostatic Pressure Balance Valve
• Size: 1/2 inch
• Rough Size: 1/2
• Valve has maximum working temperature of: 115°F
• inlet and outlet diameter: 1/2in.
• connection: male pipe thread
