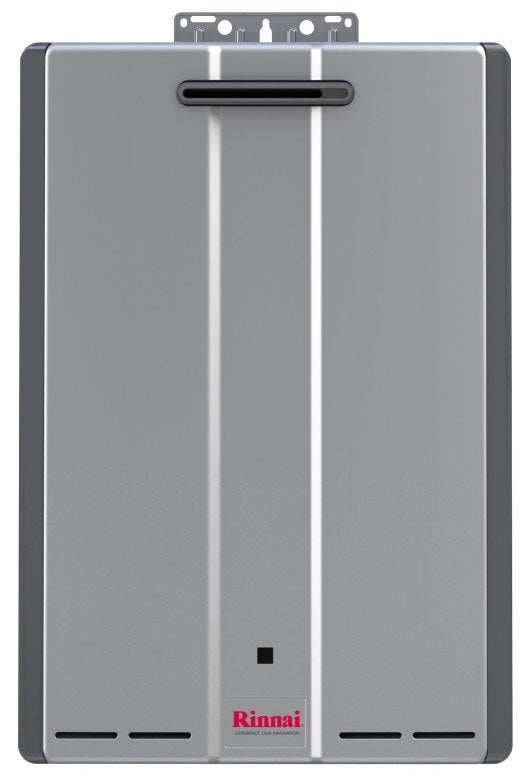

Rinnai RUR199EP 15000 to 199000 BTU/Hr Tankless Liquid Propane Gas Water Heater

Product Description

The RINNAI RUR199EP is a 3/4" NPT, 15000 to 199000 BTU/Hr tankless liquid propane gas water heater with direct electronic ignition. Designed for residential and outdoor applications, this super high efficiency, condensing unit operates at 120 VAC and 60 Hz. It features lead-free construction and is ideal for providing on-demand hot water.

• 3/4" NPT Connection
• Lead-Free Construction
• Tankless Design

Product Highlights

The Rinnai RUR199EP tankless water heater provides an efficient and space-saving solution for your hot water needs.

Product Information

Standard Information

• Brand: RINNAI
• Manufacturer Part Number: RUR199EP
• Country of Origin: Japan

Technical Specifications

• BTU/Hr: 15000 to 199000
• Voltage: 120 VAC
• Frequency: 60 Hz
• Amperage: 4 A
• Wattage: 81 W
• Ignition: Direct Electronic Ignition
• Application: Residential, Outdoor
• Efficiency: Super High Efficiency, Condensing
• Gas Type: Liquid Propane
• Series: Super High Efficiency Plus
• Mounting: Wall
• Standards: AHRI, CSA, CEC, Energy Star, Mobile Home Certified
• Vent Type: Outdoor
• Temp. Range: 98-140 deg. F
• Gas Connection: 3/4" MNPT
• Flow Rate (GPM): 0.26 to 11
• Additional Features: ENERGY STAR® Qualified with an Energy Factor of 0.96 / Uniform Energy Factor of 0.93
• Residential / Commercial: Residential / Commercial
• Country of Origin (subject to change): Japan
• Product Type: Tankless Heater
• Installation Type: Outdoor Only
• Energy Factor: 0.92
• Energy Star Rated: Yes
• BTU (Max): 199000
• BTU (Min): 15000
• Type: Condensing
• Temperature Range (F): 98°F to 140°F
• Flow Range (GPM): 0.26 - 9.8
• Hot Water Outlet (NPTF): 3/4"
• Cold Water Inlet (NPTM): 3/4"
• Depth (Inches): 11.4"
• Height (Inches): 26.4"
• Width (Inches): 18-1/2"
• Flow Rate at 70F Temp Rise (GPM): 5.5
• Flow Rate at 60F Temp Rise (GPM): 6.4
• Flow Rate at 40F Temp Rise (GPM): 9.8
• Flow Rate at 50F Temp Rise (GPM): 7.6
• Product Line: RE Series
• Product Sub-line: High Efficiency (HE)
• Product Category: Water Heater - Tankless
• Medium: Hot Water
• Venting Category: III
• Storage Type: Tankless
• Maximum Altitude: 10200 Feet
• Gas Conversion Kit: Not Available
• Subscription Eligible: No
• Maximum Input Capacity: 199000 BTU
• Minimum Input Capacity: 10400 BTU
• Flow Rate at 45F Temperature Rise: 7.3 GPM
• Uniform Energy Factor: 0.82
• Minimum Flow Rate: 0.4 GPM
• Ultra Low NOx Emissions: Yes
• Phase: 1
• Gas Connection Size: 3/4 Inch
• Cold Water Inlet: 3/4 Inch
• Hot Water Outlet: 3/4 Inch
• CSA Listed: Yes
• AHRI Certified: Yes
• NSF Certified: Yes
• AHRI Reference Number: 208210675
• Parts Warranty: 5 Years
• Heat Exchanger Warranty: 15 Years
• Maximum BTU Output: 199000 BTU
