Product Description

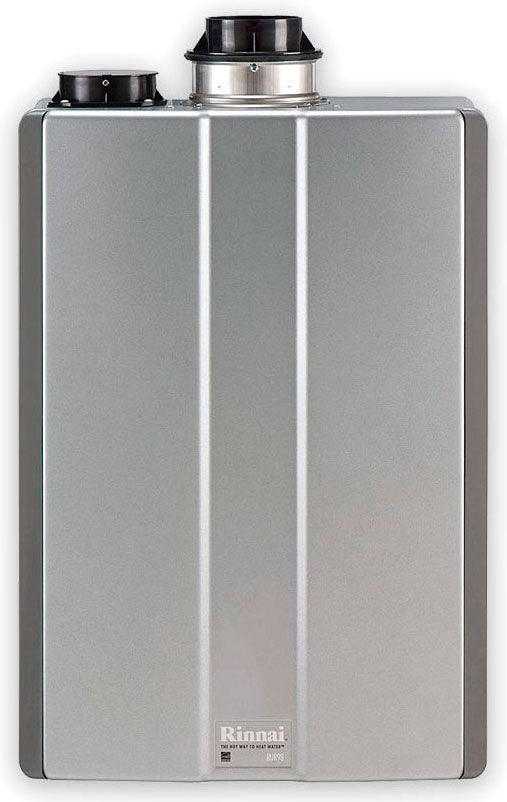

The Rinnai RUR199EN Sensei tankless water heater is designed for residential, outdoor use. This natural gas water heater features an inlet/outlet connection of 3/4 Inch Threaded x 3/4 Inch Threaded and a gas input supply rating of 15000 to 199000 BTU/Hour. It operates on a 120 Volt AC at 60 Hertz, 12 Volt DC electrical input supply.
- Offers automatic frost protection and boiling protection.
- Includes an integrated controller and water flow sensor.
- Features direct electronic ignition and complies with ANSI Z21.10.3, CSA 4.3, and AHRI standards.
Product Highlights
The Rinnai Sensei tankless water heater provides on-demand hot water with energy-saving features and a compact design, ideal for residential use.
Product Information
Standard Information
-
Brand: RINNAI
-
Manufacturer Part Number: RUR199EN
-
Country of Origin: USA
Technical Specifications
-
Applicable Standard: ANSI Z21.10.3, CSA 4.3, AHRI
-
Electrical Input Supply Rating: 120 Volt AC at 60 Hertz, 12 Volt DC, 4 Amp, 81 Watt
-
Energy Saver Conformance: Yes
-
Gas Input Supply Rating: 15000 to 199000 BTU/Hour
-
Gas Type: Natural Gas
-
Ignition Type: Direct Electronic
-
Inclusions/Features: Automatic Frost Protection, Boiling Protection, Combustion Fan RPM Check, Flame Failure-Flame Rod, Over Current Glass Fuse, Remaining Flame, 22 AWG Non-Polarized 2-Core Cable, Integrated Controller, Water Flow Sensor, Electronic Water Control Device
-
Inlet/Outlet Connection: 3/4 Inch Threaded x 3/4 Inch Threaded
-
Options: Condensate Neutralizer, ScaleCutter, Drain Down Kit, Additional Controller, Recess Box, Pipe Cover, Recirculation Pump, DPS/MIS Switch, EZConnect Cable, Control-R Wi-Fi Module, Wireless Accessory, Room Air Screen
-
Relief Valve Details: Isolation and Pressure Relief Valve Supplied
-
Temperature Rating: 98 to 140 Deg F
-
Type: Residential, Outdoor
-
Brand: Rinnai
-
Series/Model: RUR199
-
Energy Factor: 0.95
-
Pressure Rating: 50 to 150 PSI
-
Flow Rating: 9.8 GPM
-
Sound Level: 53 Decibel
-
Max. BtuH Input: 199,000
-
Min. BtuH Input: 15,000
-
ENERGY STAR® Qualified: Yes
-
Wifi Capable: Yes
-
Product Type: Tankless Heater
-
Installation Type: Outdoor Only
-
Fuel Type: Natural Gas
-
Energy Star Rated: Yes
-
BTU (Max): 199000
-
BTU (Min): 15000
-
BTU Input: 199000
-
Temperature Range (F): 98°F to 140°F
-
Flow Range (GPM): 0.26 - 9.8
-
Voltage: 120V
-
Gas Connection: 3/4"
-
Hot Water Outlet (NPTF): 3/4"
-
Cold Water Inlet (NPTM): 3/4"
-
Warranty: 15 Year Ltd. Heat Exchanger/ 5 Year Ltd. Parts/ 1 Year Ltd. Labor
-
Features: Wifi
-
AHRI Certified: Yes
-
CSA 4.3 Certified: Yes
-
Flow Rate at 70F Temp Rise (GPM): 5.5
-
Flow Rate at 40F Temp Rise (GPM): 9.8
-
Flow Rate at 60F Temp Rise (GPM): 6.4
-
Flow Rate at 50F Temp Rise (GPM): 7.6
-
Application: Residential
-
Power source: Natural Gas
-
Special feature: Tankless Water Heater, Endless Supply of Hot Water, Space-saving design, Smart-Circ Intelligent Recirculation (select models), Wi-Fi Ready (select models)
-
Material: Stainless Steel Copper
-
Installation Method: Wall Mounted
-
Flow Rate: 11 Gallons Per Minute
-
Mounting Type: Wall
-
Included Components: Water Heater
-
Batteries Included?: No
-
Batteries Required?: No
-
End Connection: NPT x NPT
-
End Connection 1: NPT
-
End Connection 2: NPT
-
Energy Star Compliant: Yes
-
Ignition System: Electronic
-
Lead Law Compliant: Yes
-
Maximum Temperature: 140F
-
MBH: 15
-
Power Source: Gas
-
Pressure - Maximum: 300 psi
-
Specifications - NSF Certified: No
-
Specifications - UL Listed: No
-
Supply Pipe Connection Size: 3/4 in.
-
Vent Type: Direct Vent
-
Volts: 120V
-
Specifications - CEC Compliant: Not for Sale in CA
-
Depth (Inches): 11.4
-
Width (Inches): 18.5
-
Height (Inches): 26.4
