Product Description

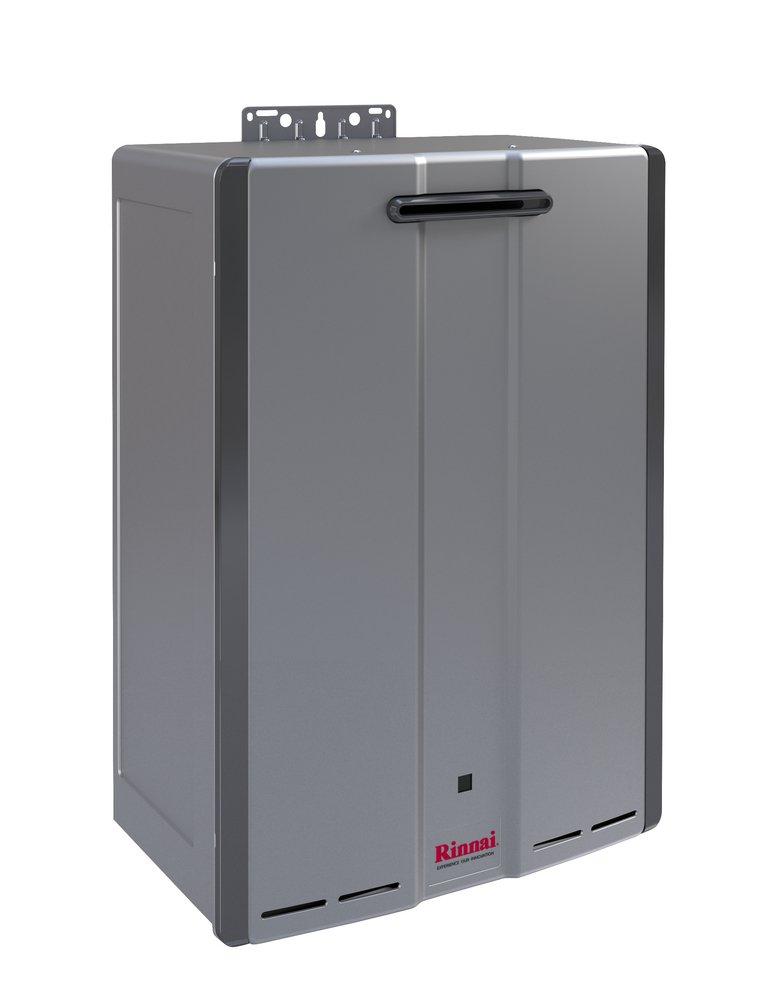

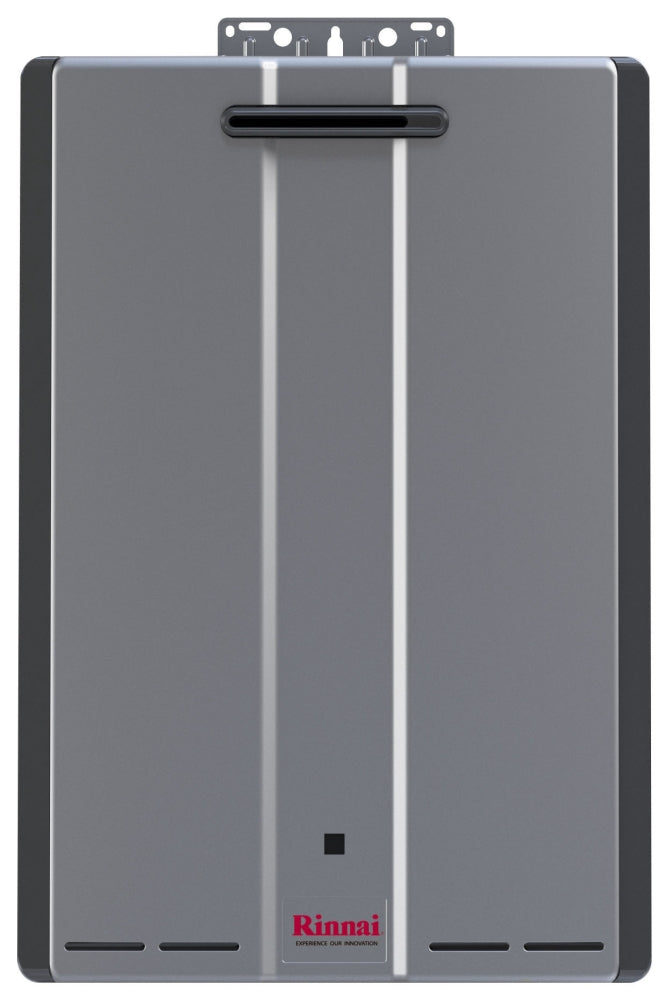

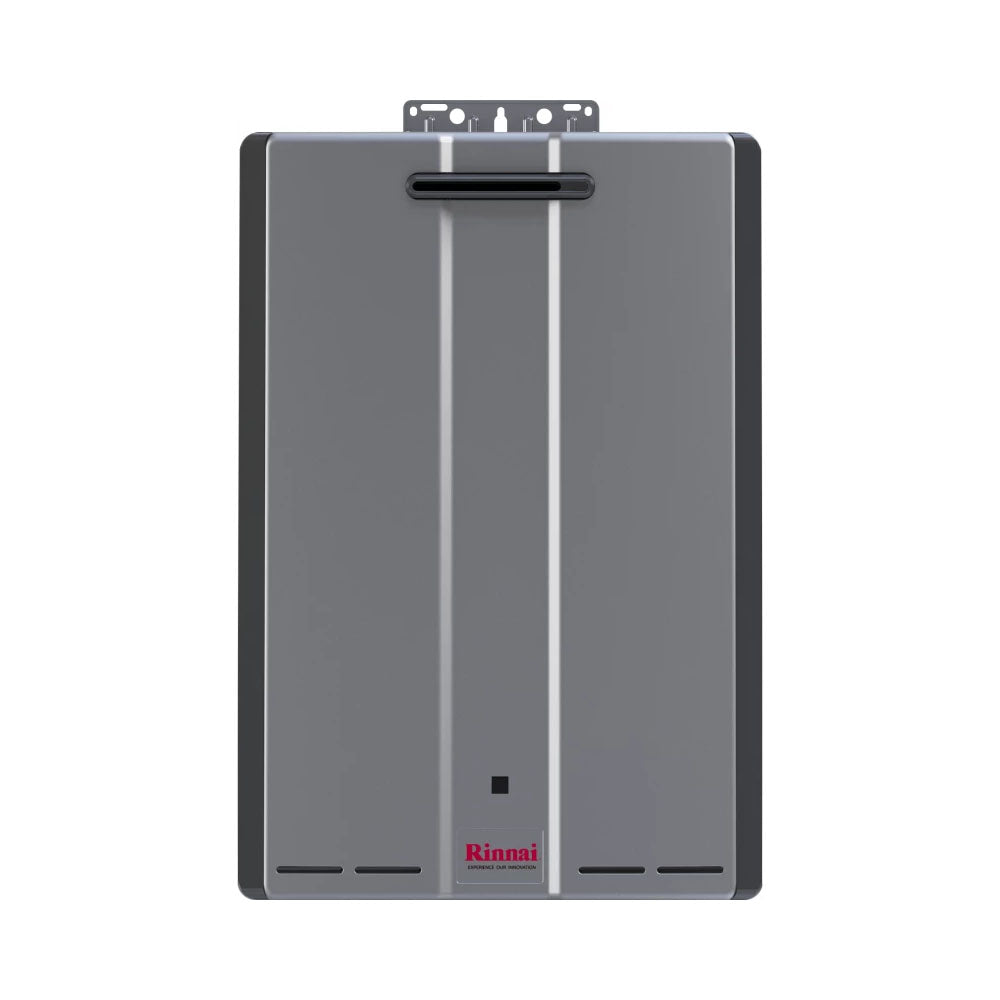

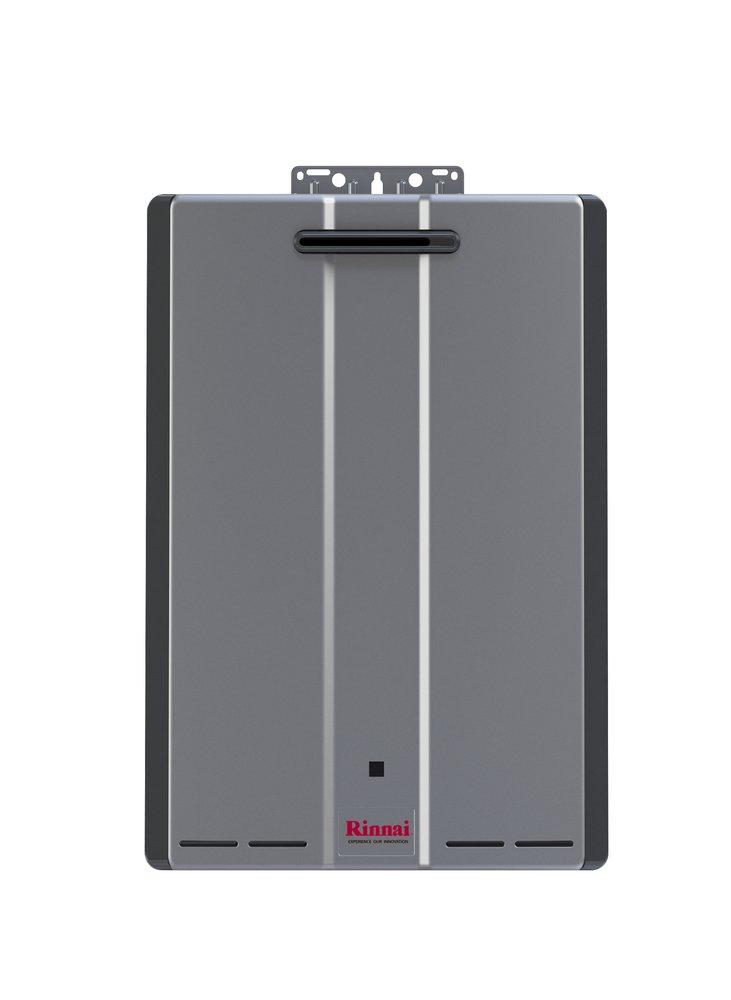

The Rinnai RU199EP Sensei™ tankless water heater raises the bar in tankless heating technology. Designed for simple installation and efficient performance, it features flexible venting options and corrosion-resistant stainless steel heat exchanger. This outdoor unit easily adapts to colder climates with freeze protection down to -4° F. It delivers continuous hot water for multiple applications.
- Continuous Water for Multiple Applications
- Energy Efficient Promise
- Wi-Fi Compatible
Product Highlights
The Rinnai Sensei RU199EP tankless water heater provides an endless supply of hot water with efficient performance and flexible venting.
Product Information
Standard Information
-
Brand: RINNAI
-
Manufacturer Part Number: RU199EP
-
Country of Origin: Japan
Technical Specifications
-
Product Category: Water Heater - Tankless
-
Type: Tankless Water Heater
-
Fuel Type: Liquid Propane
-
Installation Location: Outdoor
-
Maximum Input Capacity (BTU/Hr): 199,000
-
Product Depth: 11 19/48 Inches
-
Product Width: 18 1/2 Inches
-
CSA Listed: Yes
-
Product Height: 26 19/48 Inches
-
Frequency: 60 Hz
-
Shipping Weight: 72 Pounds
-
Medium: Hot Water
-
Cold Water Inlet: 3/4 Inch
-
Hot Water Outlet: 3/4 Inch
-
AHRI Certified: Yes
-
Vent Type: Outdoor (No Venting)
-
Minimum Flow Rate: 0.4 GPM
-
Gas Connection Size: 3/4 Inch
-
Mount Type: Wall
-
Application: Residential
-
Product Line: Sensei
-
Storage Type: Tankless
-
Energy Star Listed: Yes
-
Includes Pump: No
-
Uniform Energy Factor: 0.92
-
Maximum Input Capacity: 199000 BTU
-
Minimum Input Capacity: 15000 BTU
-
Combustion Type: Condensing
-
Ultra Low NOx Emissions: Yes
-
Parts Warranty: 5 Years
-
AHRI Reference Number: 10595466
-
Maximum Altitude: 10200 Feet
-
Product Sub-line: Super High Efficiency Plus (SE+)
-
Gas Conversion Kit: Not Available
-
Heat Exchanger Warranty: 15 Years
-
Flow Rate at 40F Temperature Rise: 9.8 GPM
-
Flow Rate at 45F Temperature Rise: 8.4 GPM
-
Flow Rate at 50F Temperature Rise: 7.6 GPM
-
Flow Rate at 60F Temperature Rise: 6.4 GPM
-
Flow Rate at 70F Temperature Rise: 5.5 GPM
-
Applicable Standard: ANSI Z21.10.3, CSA 4.3, AHRI
-
Electrical Input Supply Rating: 120 Volt AC at 60 Hertz, 12 Volt DC, 4 Amp, 81 Watt
-
Energy Saver Conformance: Yes
-
Gas Input Supply Rating: 15000 to 199000 BTU/Hour
-
Gas Type: Liquid Propane
-
Ignition Type: Direct Electronic
-
Inclusions/Features: Automatic Frost Protection, Boiling Protection, Combustion Fan RPM Check, Flame Failure-Flame Rod, Over Current Glass Fuse, Remaining Flame, 22 AWG Non-Polarized 2-Core Cable, Integrated Controller, Water Flow Sensor, Electronic Water Control Device
-
Inlet/Outlet Connection: 3/4 Inch Threaded x 3/4 Inch Threaded
-
Options: Condensate Neutralizer, ScaleCutter, Drain Down Kit, Additional Controller, Recess Box, Pipe Cover, Recirculation Pump, DPS/MIS Switch, EZConnect Cable, Control-R Wi-Fi Module, Wireless Accessory
-
Relief Valve Details: Isolation and Pressure Relief Valve Supplied
-
Tank Dimensions: 18.5 Inch Width x 11.45 Inch Depth x 26.4 Inch Height
-
Temperature Rating: 98 to 140 Deg F
-
Brand Name: SENSEI
-
Series/Model: RU199
-
Energy Factor: 0.96
-
Voltage: 120v
-
BTU (Max): 199000
-
BTU (Min): 15000
-
Depth (Inches): 11.4"
-
Gas Connection: 3/4"
-
Width (Inches): 18-1/2"
-
Height (Inches): 26.4"
-
Flow Range (GPM): 0.26 - 9.8
-
Temperature Range (F): 98°F to 120°F
-
Cold Water Inlet (NPTM): 3/4"
-
Hot Water Outlet (NPTF): 3/4"
-
Wifi: Yes
-
Residential/Commercial: Residential
