Product Description

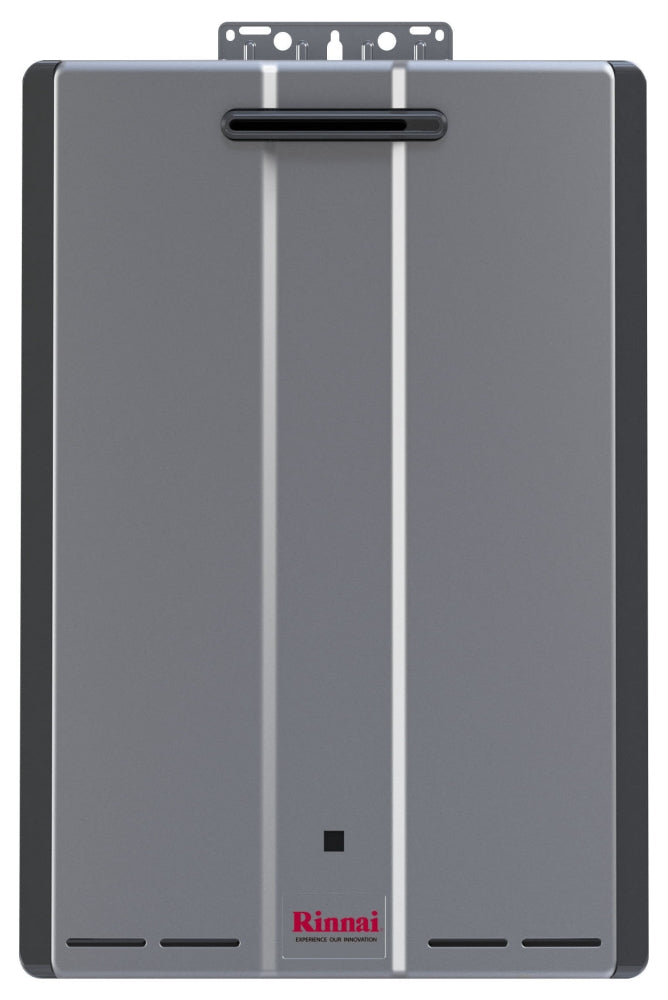

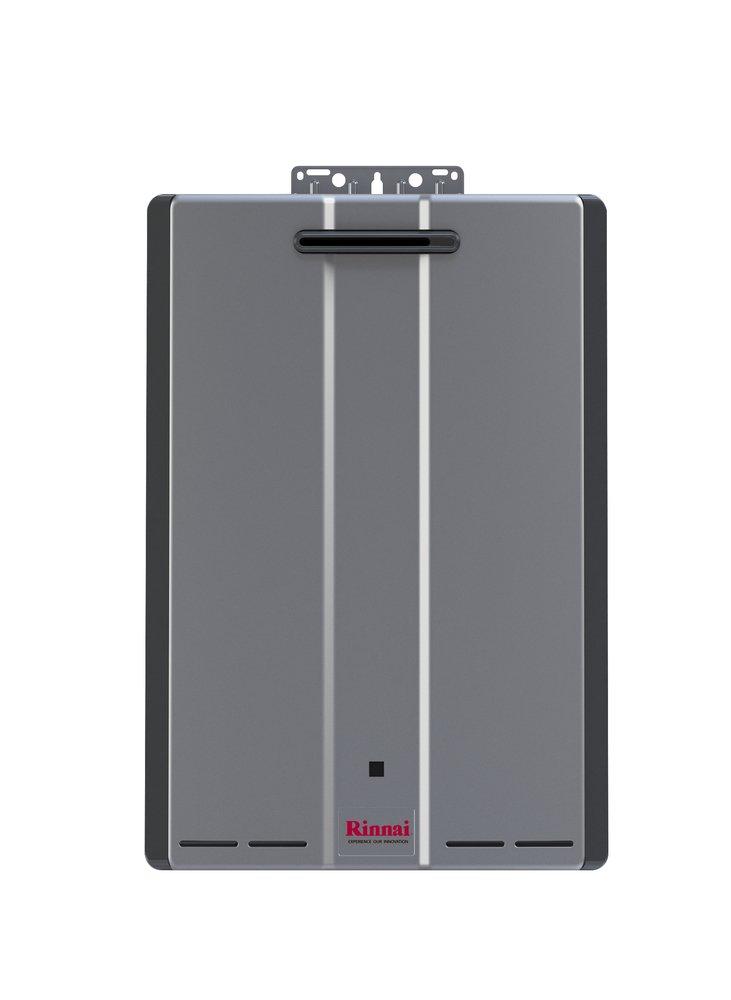

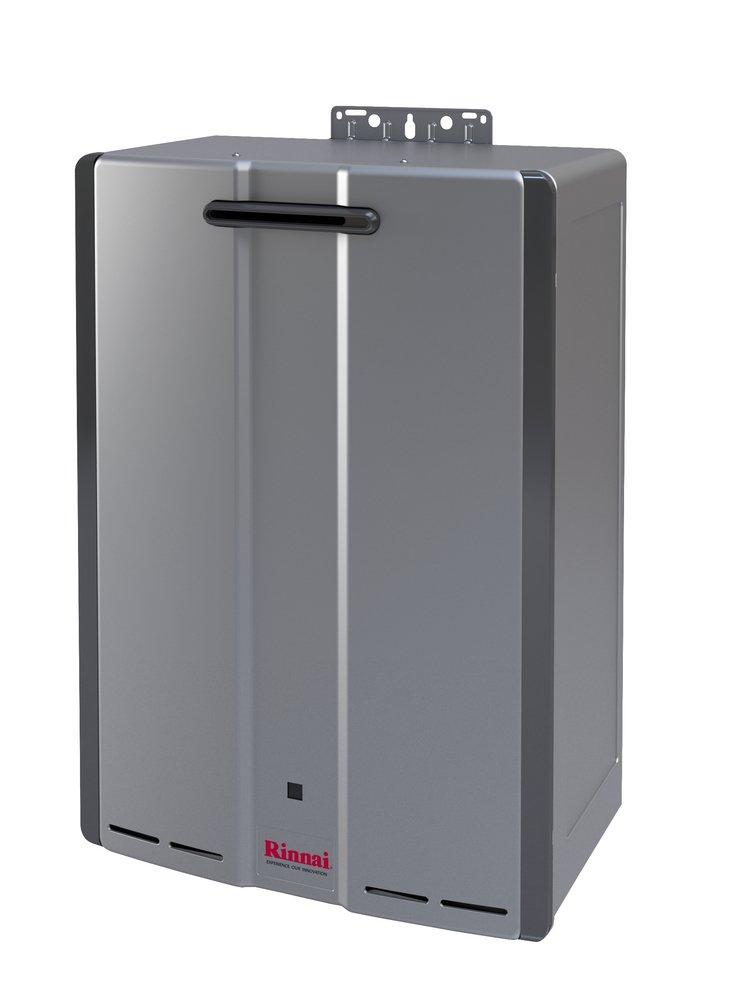

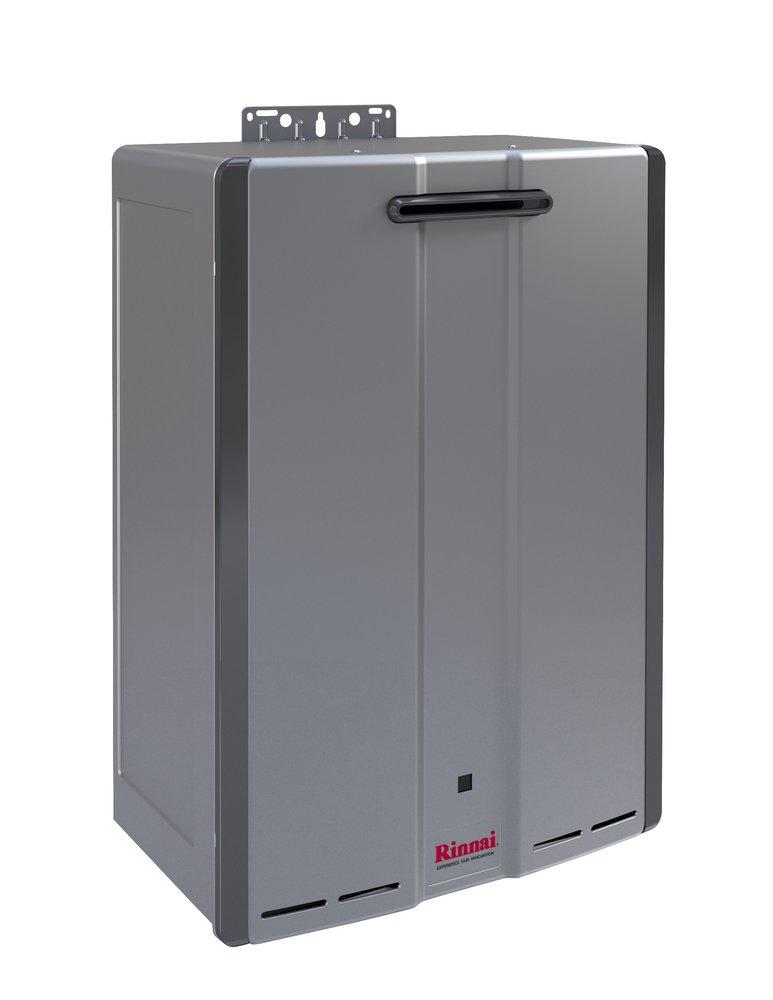

The RINNAI RU199EN tankless water heater is designed for residential, outdoor use, providing 15000 to 199000 BTU/Hour. This natural gas unit features direct electronic ignition and operates at 120 Volt AC at 60 Hertz, 12 Volt DC, 4 Amp, 81 Watt. It includes automatic frost protection and boiling protection.
- Easy of Installation and Serviceability
- Compact Design to Save Space
- Wi-Fi Technology for Remote Monitoring and Management
Product Highlights
The RINNAI RU199EN tankless water heater delivers on-demand hot water with a compact design and user-friendly features.
Product Information
Standard Information
-
Brand: RINNAI
-
Manufacturer Part Number: RU199EN
-
Country of Origin: Japan
Technical Specifications
-
Applicable Standard: ANSI Z21.10.3, CSA 4.3, AHRI
-
Electrical Input Supply Rating: 120 Volt AC at 60 Hertz, 12 Volt DC, 4 Amp, 81 Watt
-
Energy Saver Conformance: Yes
-
Gas Input Supply Rating: 15000 to 199000 BTU/Hour
-
Gas Type: Natural Gas
-
Ignition Type: Direct Electronic
-
Inclusions/Features: Automatic Frost Protection, Boiling Protection, Combustion Fan RPM Check, Flame Failure-Flame Rod, Over Current Glass Fuse, Remaining Flame, 22 AWG Non-Polarized 2-Core Cable, Integrated Controller, Water Flow Sensor, Electronic Water Control Device
-
Inlet/Outlet Connection: 3/4 Inch Threaded x 3/4 Inch Threaded
-
Options: Condensate Neutralizer, ScaleCutter, Drain Down Kit, Additional Controller, Recess Box, Pipe Cover, Recirculation Pump, DPS/MIS Switch, EZConnect Cable, Control-R Wi-Fi Module, Wireless Accessory
-
Relief Valve Details: Isolation and Pressure Relief Valve Supplied
-
Temperature Rating: 98 to 140 Deg F
-
Type: Residential, Outdoor
-
BTU/Hr: 15000 to 199000
-
Voltage: 120 VAC
-
Frequency: 60 Hz
-
DC Voltage: 12 VDC
-
Amperage: 4 A
-
Wattage: 81 W
-
GPM: 9.8
-
Material: Lead-Free
-
Application: Residential, Outdoor
-
Max. BtuH Input: 199,000
-
Min. BtuH Input: 15,000
-
Wifi Capable: True
-
Energy Star Rated: Yes
-
Product Type: Tankless Heater
-
Energy Factor: 0.95
-
Depth (Inches): 11.4
-
Width (Inches): 18.5
-
Height (Inches): 26.4
-
Flow Range (GPM): 0.26 - 9.8
-
Installation Type: Outdoor Only
-
Temperature Range (F): 98°F to 120°F
-
Cold Water Inlet (NPTM): 3/4"
-
Hot Water Outlet (NPTF): 3/4"
-
Flow Rate at 40F Temp Rise (GPM): 9.8
-
Flow Rate at 50F Temp Rise (GPM): 7.6
-
Flow Rate at 60F Temp Rise (GPM): 6.4
-
Flow Rate at 70F Temp Rise (GPM): 5.5
-
Flow Rate (GPM): 0.26 to 11
-
Gas Connection: 3/4"
-
Uniform Energy Factor: 0.93
-
Domestic Hot Water Flow Rate (Maximum): 11 GPM / (41.6 l/min)
-
SCAQMD Approved: Ultra Low NOx
-
Warranty – Residential Heat Exchanger (months): 180
-
Warranty – Residential Labor (months): 12
-
Warranty – Residential Parts (months): 60
