Product Description

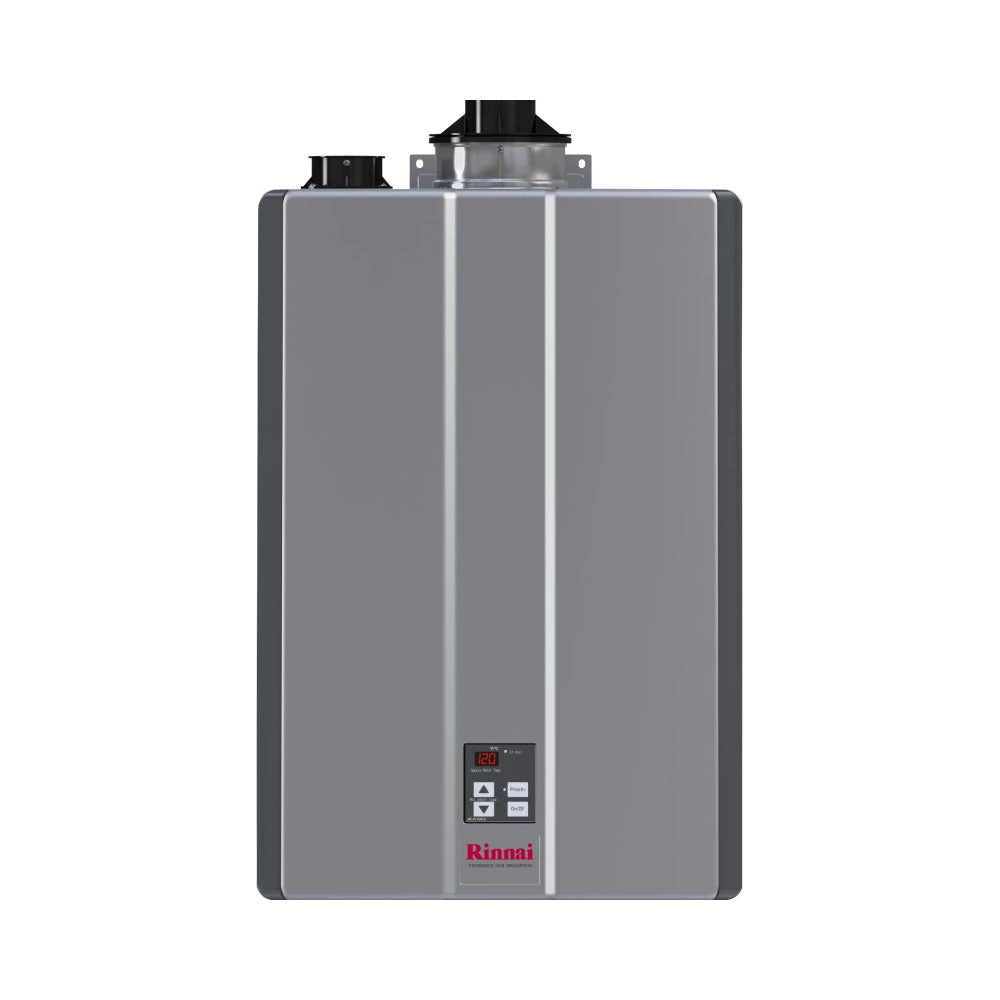

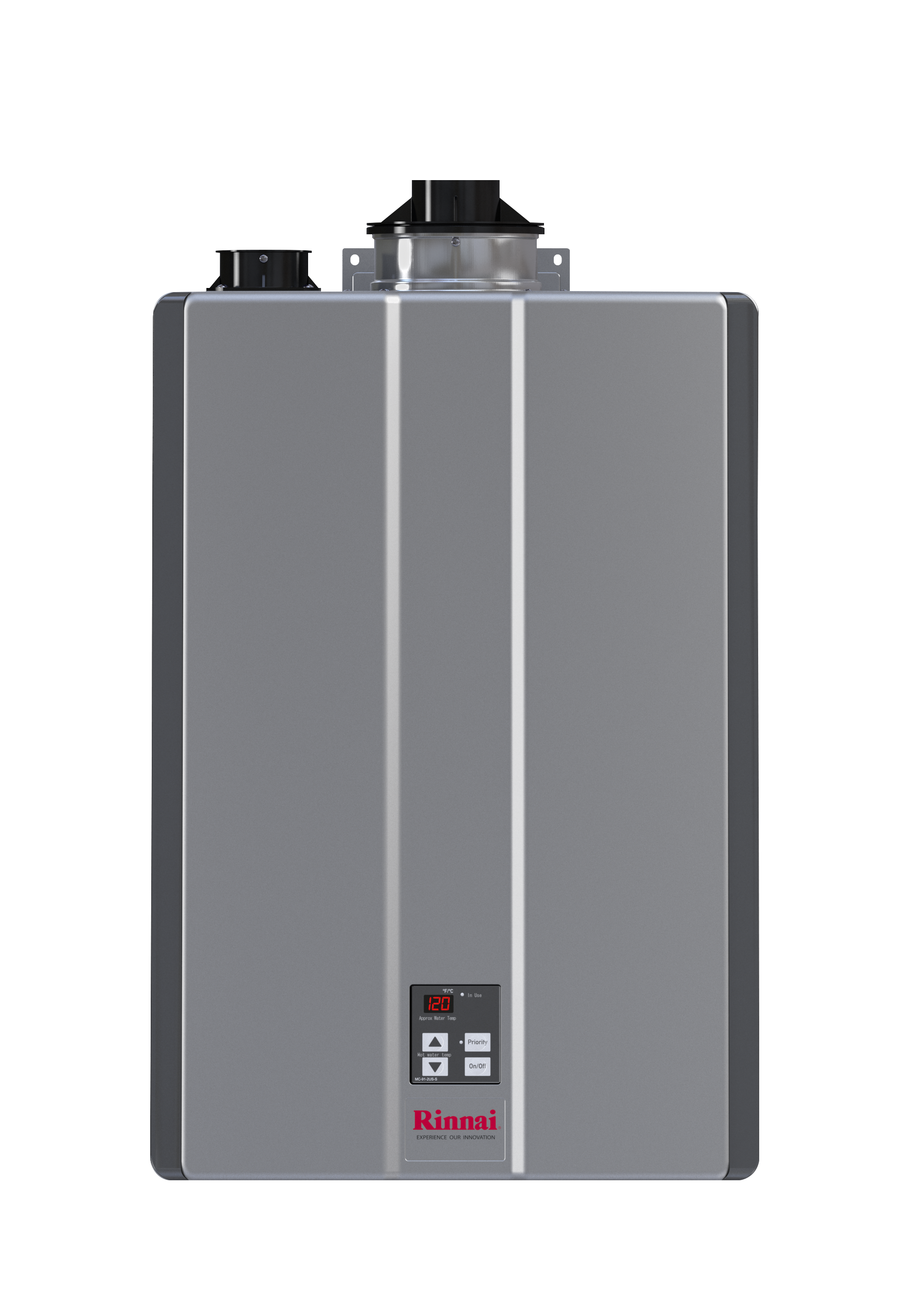

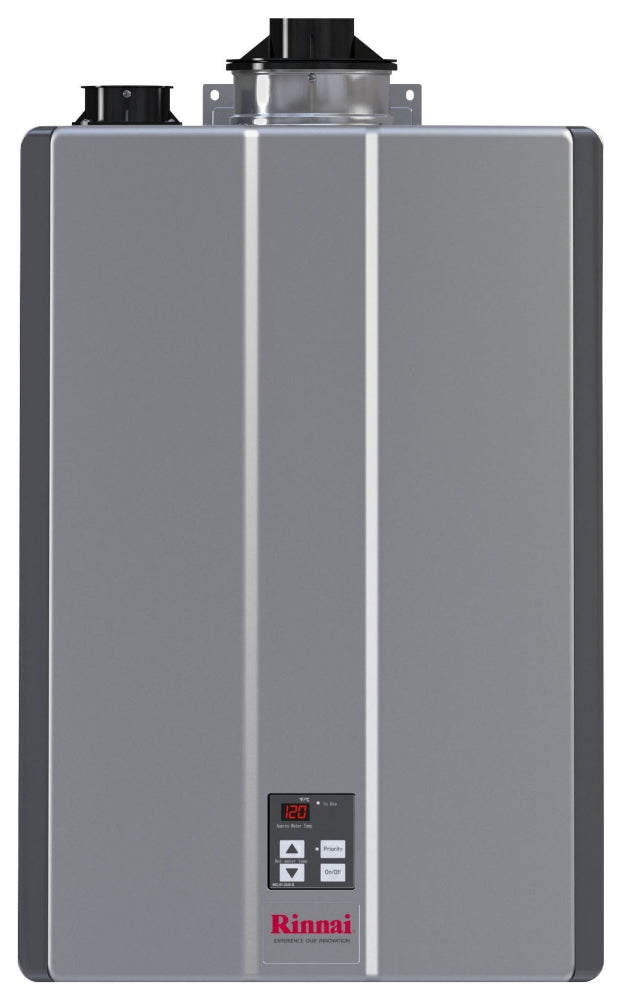

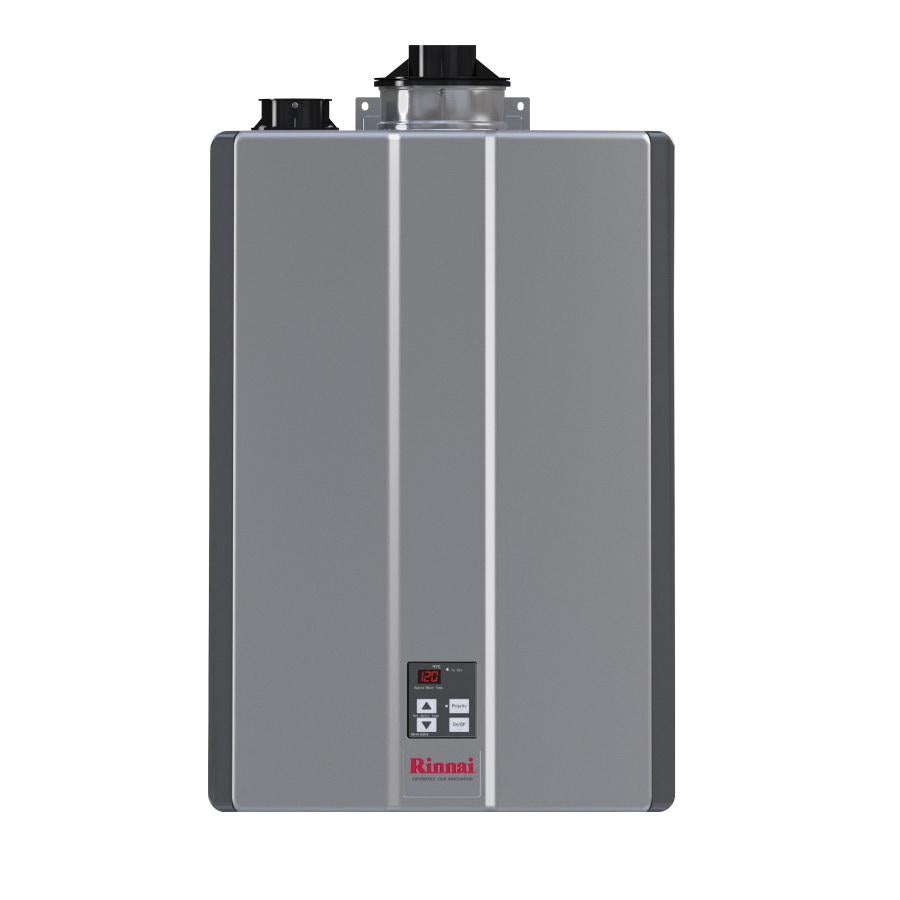

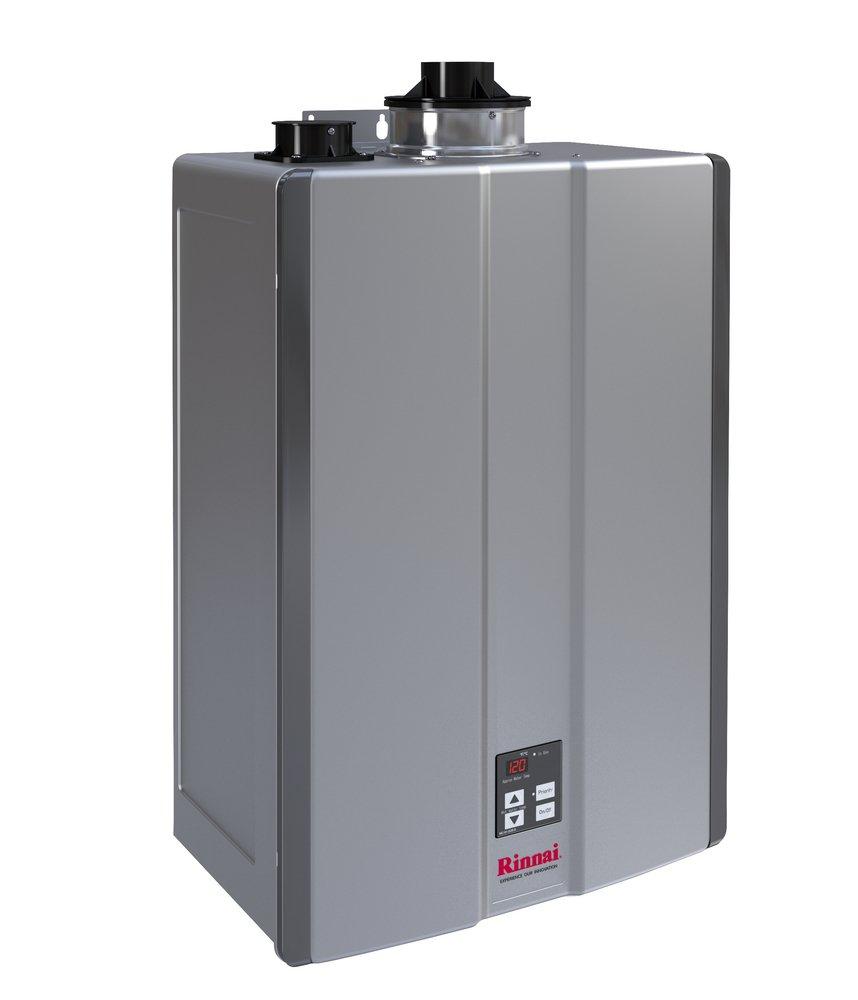

The RINNAI RU180IN tankless water heater is designed for residential, indoor use with a gas input supply rating of 15000 to 180000 BTU/Hr. This natural gas unit features direct electronic ignition and operates at 120 VAC 60 Hz, 12 VDC, 4 A, and 65 W, with a flow rating of 9 GPM. It includes automatic frost protection and boiling protection.
- Easy of Installation and Serviceability
- Compact Design to Save Space
- Wi-Fi Technology for Remote Monitoring and Management
Product Highlights
This tankless water heater offers easy installation, a compact design, and Wi-Fi technology for remote monitoring.
Product Information
Standard Information
-
Brand: RINNAI
-
Manufacturer Part Number: RU180IN
-
Country of Origin: Japan
Technical Specifications
-
Type: Residential, Indoor
-
Inlet/Outlet Connection: 3/4 Inch Threaded x 3/4 Inch Threaded
-
Gas Type: Natural Gas
-
Relief Valve Details: Isolation and Pressure Relief Valve Supplied
-
Electrical Input Supply Rating: 120 Volt AC at 60 Hertz, 12 Volt DC, 4 Amp, 65 Watt
-
Gas Input Supply Rating: 15000 to 180000 BTU/Hour
-
Temperature Rating: 98 to 140 Deg F
-
Ignition Type: Direct Electronic
-
Energy Saver Conformance: Yes
-
Inclusions/Features: Automatic Frost Protection, Boiling Protection, Combustion Fan RPM Check, Flame Failure-Flame Rod, Over Current Glass Fuse, Remaining Flame, 22 AWG Non-Polarized 2-Core Cable, Integrated Controller, Water Flow Sensor, Electronic Water Control Device
-
Applicable Standard: ANSI Z21.10.3, CSA 4.3, AHRI
-
Pressure Rating: 50 to 150 psi
-
Flow Rating: 9 GPM
-
Sound Level: 47 Decibel
-
Energy Factor: 0.95
-
Voltage: 120 VAC
-
Frequency: 60 Hz
-
DC Voltage: 12 VDC
-
Amperage: 4 A
-
Wattage: 65 W
-
GPM: 9
-
Material: Lead-Free
-
Fuel Type: Natural Gas
-
Application: Residential, Indoor
-
Product Type: Tankless Condensing Internal
-
Series: Super High Efficiency Plus
-
Mounting: Wall
-
Standards: AHRI, CSA, CEC, Energy Star, Mobile Home Certified
-
Vent Type: Concentric, Twin Pipe, Room Air
-
Temp. Range: 98-185 deg. F
-
Gas Connection: 3/4" MNPT
-
Flow Rate (GPM): 0.26 to 10
-
Additional Features: ENERGY STAR® Qualified with an Energy Factor of 0.95 / Uniform Energy Factor of 0.93
-
Residential / Commercial: Residential / Commercial
-
Country of Origin (subject to change): Japan
-
Max. BtuH Input: 180,000
-
Min. BtuH Input: 15,000
-
Energy Star Qualified: Yes
-
Wifi Capable: Yes
-
Includes service valve kit: Yes
-
Direct Vent: Yes
-
Depth (Inches): 11.4"
-
Width (Inches): 18-1/2"
-
Height (Inches): 26.4"
-
Flow Range (GPM): 0.26 - 9.0
-
Energy Star Rated: Yes
-
Installation Type: Indoor Only
-
Temperature Range (F): 98°F to 120°F
-
Cold Water Inlet (NPTM): 3/4"
-
Hot Water Outlet (NPTF): 3/4"
-
Flow Rate at 40F Temp Rise (GPM): 8.6
-
Flow Rate at 50F Temp Rise (GPM): 6.9
-
Flow Rate at 60F Temp Rise (GPM): 5.8
-
Flow Rate at 70F Temp Rise (GPM): 4.9
-
mobile home certified: yes
-
natural gas connection: 3/4"
-
install location: indoor
-
wifi: yes
-
1/2" natural gas line compatible: yes
-
btu: 180k
-
vent pipe diameter: 2"
-
venting option: concentric, sch40 pvc/cpvc
-
CONTROLLER (STANDARD): INTEGRATED
-
CONTROLLERS (OPTIONAL): MC-195T-US, MC-91-2US, MCC-91-2US
-
Minimum/Maximum BTU: 15,000 – 180,000 BTU
-
Manufacturer Trade Model Number - U.S: RU180iN
-
Product Depth: 11.45 in
-
Product Width: 18.5 in
-
Product Height: 31.3 in
-
Recirculation Capable: Yes
-
Residential ENERGY STAR: Yes
-
Uniform Energy Factor: 0.93
-
Domestic Hot Water Flow Rate (Maximum): 10 GPM
-
SCAQMD Approved: Ultra Low NOx
-
Altitude: 10200 ft
-
Amperage Rating: 4 A
-
BTU Rating: 15000 to 180000 Btu/hr
-
Connection Type: NPT
-
Dimensions: 31.3 in H x 18.5 in W x 11.45 in D
-
Efficiency: 0.95 %
-
Ignition System: Electronic
-
Model: REU-N2934FF-US
-
Mounting Type: Wall
-
Power Rating: 65 W
-
Standby Loss: 1.3 W
-
Voltage Rating: 12/120 V
-
Item Name: Condensing Tankless Water Heater
-
Sub Brand: Sensei™
-
Model No: RU
-
Flow Rate: 0.26 - 10 gpm
-
Activation GPM: 0.4 gpm
-
Water Connection: 3/4 inch MNPT
-
Vent Size: 3 inch, 1800 inch Maximum Run
-
Applications: For Indoor Only
-
Includes: Isolation Valve Kit
-
Standards/Approvals: AHRI Certified, ANSI Z21.10.3, CSA Certified, Energy Star® Certified
-
Minimum Activation Rate: 0.4 GPM (1.5 l/min)
-
Hot Water Flow Rate Range: 0.26 - 9.0 GPM (1.0 - 34 l/min)
-
Approved Gas Types: Natural Gas or Propane
-
Flow rate: 70°/50° temp. rise: 4.9 / 6.9
