Product Description

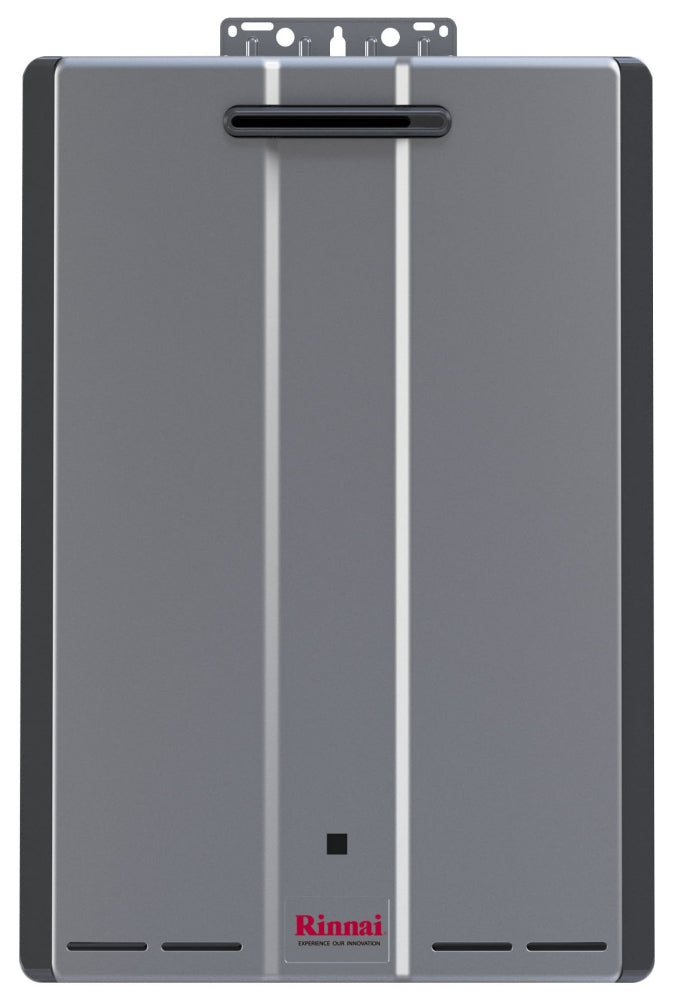

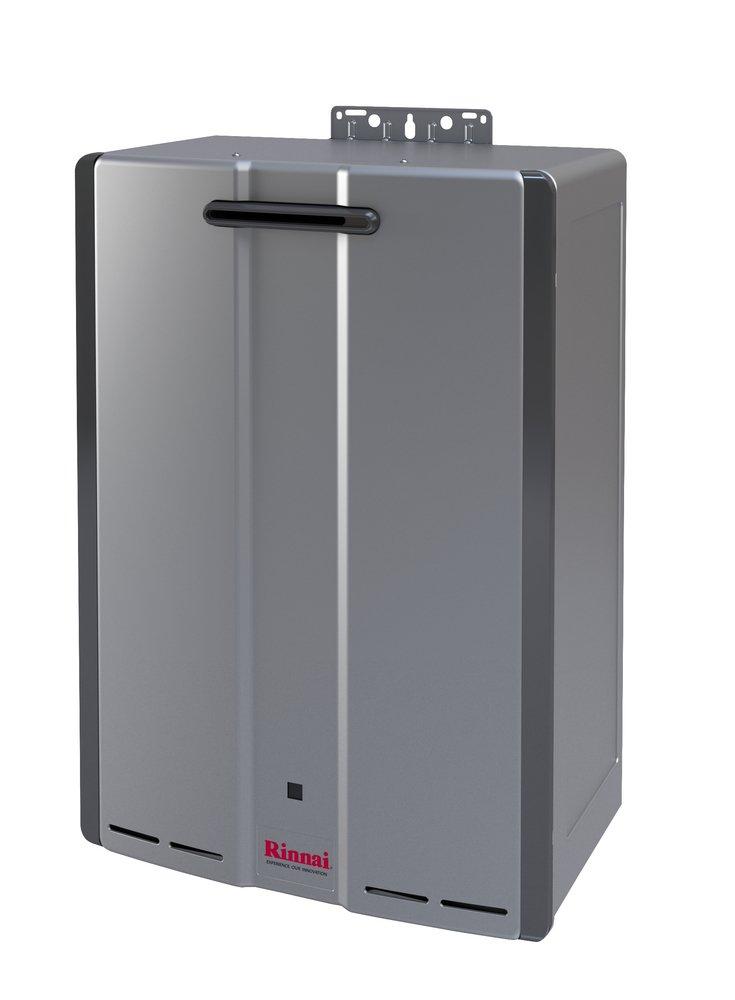

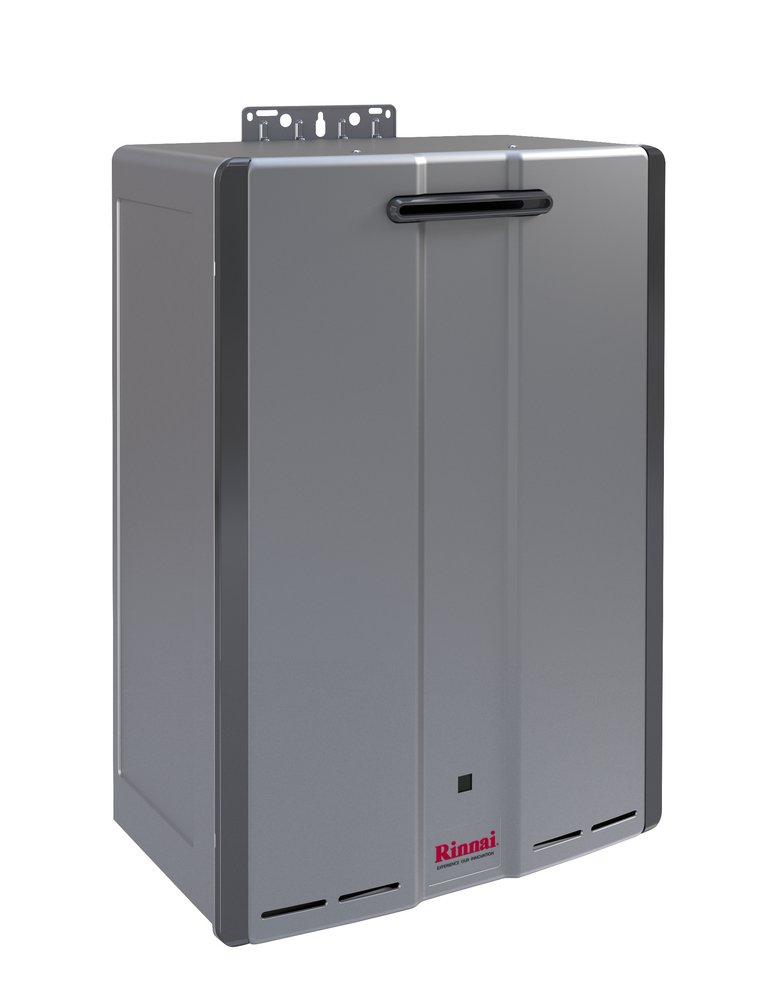

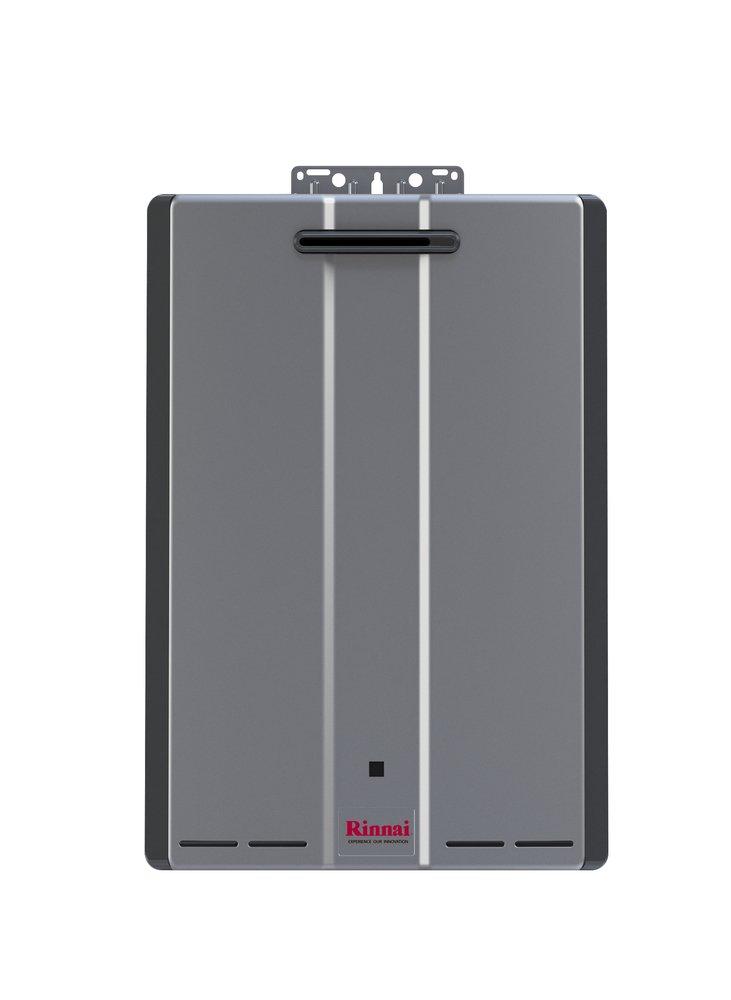

The Rinnai RU180EN is a tankless water heater designed for residential, outdoor use. It features a 3/4 Inch Threaded x 3/4 Inch Threaded inlet/outlet connection and uses natural gas. The gas input supply rating is 15000 to 180000 BTU/Hour and the temperature rating is 98 to 140 Deg F. The tank dimensions are 18.5 Inch Width x 11.45 Inch Depth x 26.4 Inch Height.
- Easy of Installation and Serviceability
- Compact Design to Save Space
- Wi-Fi Technology for Remote Monitoring and Management
Product Highlights
This tankless water heater offers easy installation, a compact design, and Wi-Fi technology for remote monitoring.
Product Information
Standard Information
-
Brand: RINNAI
-
Manufacturer Part Number: RU180EN
-
Country of Origin: Japan
Technical Specifications
-
Applicable Standard: ANSI Z21.10.3, CSA 4.3, AHRI
-
Electrical Input Supply Rating: 120 Volt AC at 60 Hertz, 12 Volt DC, 4 Amp, 62 Watt
-
Energy Saver Conformance: Yes
-
Gas Input Supply Rating: 15000 to 180000 BTU/Hour
-
Gas Type: Natural Gas
-
Ignition Type: Direct Electronic Ignition
-
Inclusions/Features: Automatic Frost Protection, Boiling Protection, Combustion Fan RPM Check, Flame Failure-Flame Rod, Over Current Glass Fuse, Remaining Flame, 22 AWG Non-Polarized 2-Core Cable, Integrated Controller, Water Flow Sensor, Electronic Water Control Device
-
Inlet/Outlet Connection: 3/4 Inch Threaded x 3/4 Inch Threaded
-
Options: Condensate Neutralizer, ScaleCutter, Drain Down Kit, Additional Controller, Recess Box, Pipe Cover, Recirculation Pump, DPS/MIS Switch, EZConnect Cable, Control-R Wi-Fi Module, Wireless Accessory
-
Relief Valve Details: Isolation and Pressure Relief Valve Supplied
-
Tank Dimensions: 18.5 Inch Width x 11.45 Inch Depth x 26.4 Inch Height
-
Temperature Rating: 98 to 140 Deg F
-
Type: Residential, Outdoor
-
Brand Name: SENSEI
-
Manufacturer Part Number Additional: REU-N2934W-US-N
-
Series/Model: RU180
-
Fuel Type: Natural Gas
-
Maximum BTU: 180 MBH
-
Location: Outdoor
-
Wi-Fi Ready: Yes
-
Gas Line Compatible: 1/2 in. (13 mm)
-
Voltage: AC 120 Volts, 60 Hz
-
Mounting: Wall
-
Standards: AHRI, CSA, CEC, Energy Star, Mobile Home Certified
-
Vent Type: Outdoor
-
Temp. Range: 98-185 deg. F
-
Gas Connection: 3/4" MNPT
-
Flow Rate (GPM): 0.26 to 10
-
Additional Features: ENERGY STAR® Qualified with an Energy Factor of 0.96 / Uniform Energy Factor of 0.93
-
Residential / Commercial: Residential
-
Country of Origin (subject to change): Japan
-
DC Voltage: 12 VDC
-
Amperage: 4 A
-
Wattage: 62 W
-
Max. BtuH Input: 180,000
-
Min. BtuH Input: 15,000
-
Depth (Inches): 11.4"
-
Width (Inches): 18-1/2"
-
Height (Inches): 26.4"
-
Flow Range (GPM): 0.26 - 9.0
-
Cold Water Inlet (NPTM): 3/4"
-
Hot Water Outlet (NPTF): 3/4"
-
Flow Rate at 40F Temp Rise (GPM): 8.6
-
Flow Rate at 50F Temp Rise (GPM): 6.9
-
Flow Rate at 60F Temp Rise (GPM): 5.8
-
Flow Rate at 70F Temp Rise (GPM): 4.9
-
Energy Factor: 0.95
-
Temperature Range (F): 98°F to 120°F
-
ENERGY STAR qualified: with Uniform Energy Factor of 0.95
-
Maximum Gallons per Minute: 10
-
Manufacturer Trade Model Number – U.S.: RU180eN
-
Product Depth: 12.0 in / (305 mm)
-
Product Height: 27.9 in / (709 mm)
-
Product Width: 18.5 in / (470 mm)
-
Product Weight: 64 lb / (29 kg)
-
Installation Type: Outdoor Only
-
Recirculation Capable: Yes
-
Residential Energy Star: Yes
-
Uniform Energy Factor: 0.93
-
Domestic Hot Water Flow Rate (Maximum): 10 GPM / (37.9 l/min)
-
SCAQMD Approved: Ultra Low NOx
-
Warranty – Residential Heat Exchanger (months): 180
-
Warranty – Residential Labor (months): 12
-
Warranty – Residential Parts (months): 60
-
Model: RU180EN
-
MPN: MFG# RU180EN
-
Condition: New
