Product Description

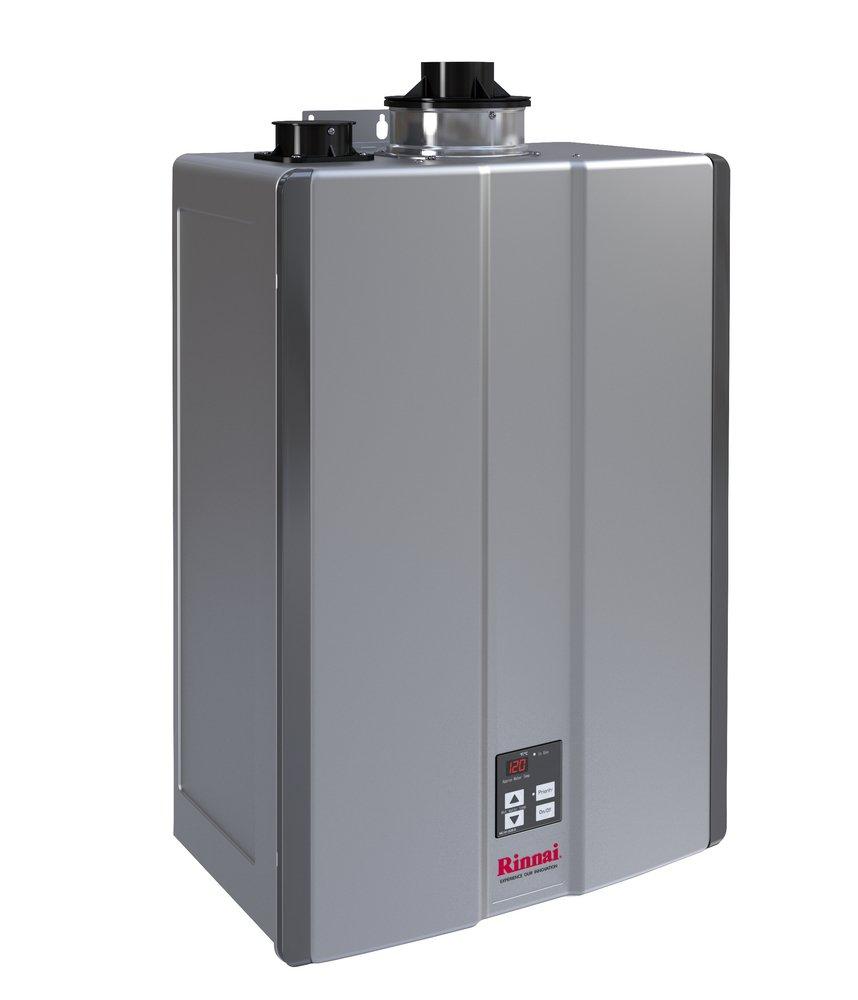

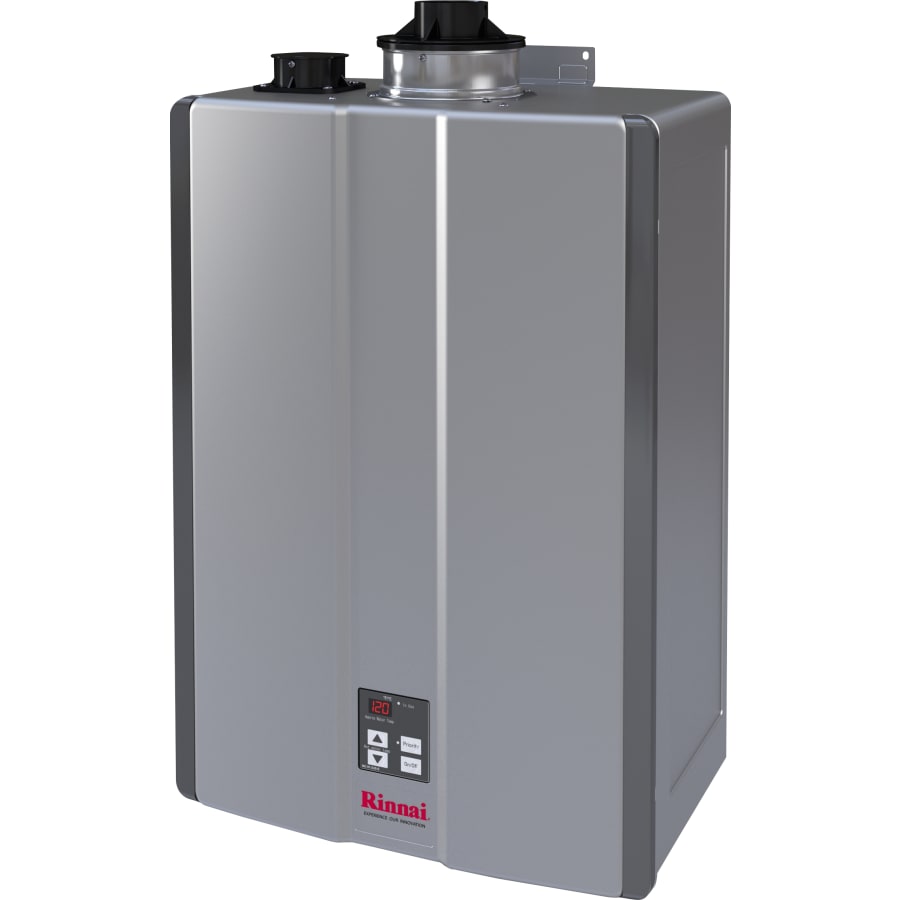

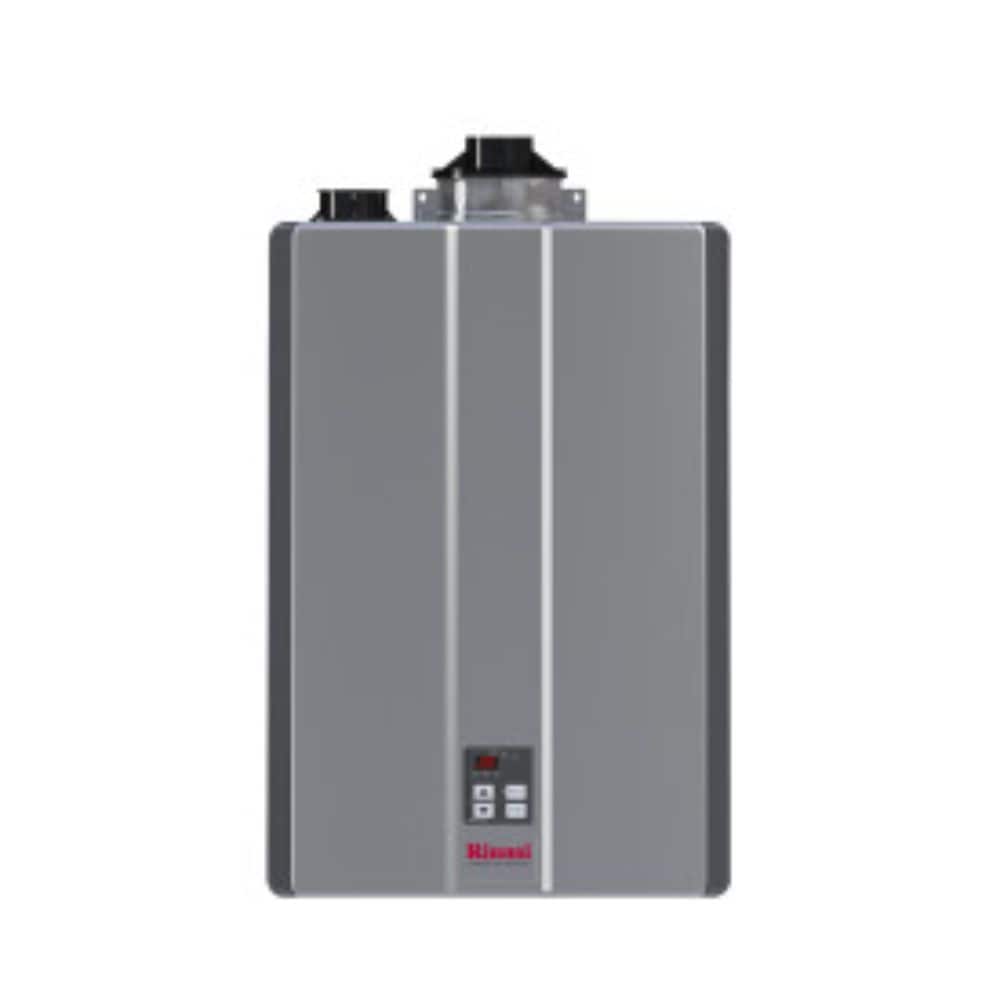

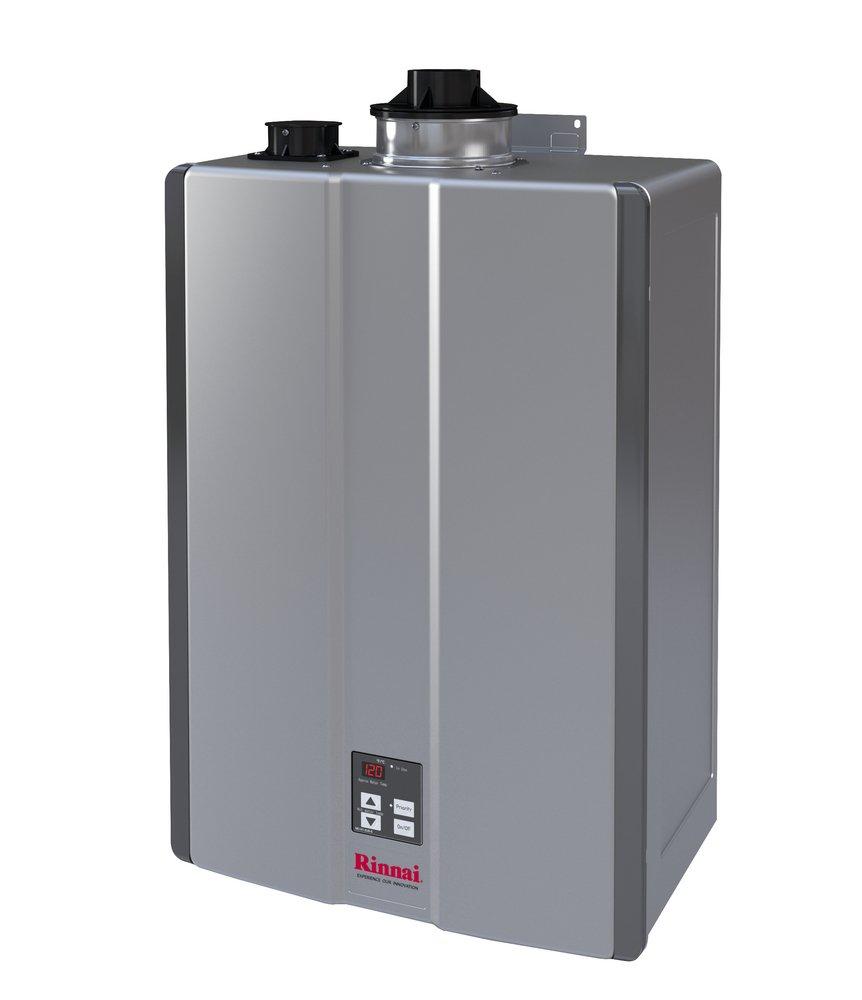

The Rinnai RU160IN Sensei tankless water heater raises the bar in tankless heating technology. This SENSEI™ series provides simple installation, serviceability, efficient performance, and flexible venting options. A corrosion-resistant stainless steel heat exchanger allows for powerful and efficient water heating. It delivers continuous hot water for multiple applications.
- Features a corrosion-resistant stainless steel heat exchanger for reliable and long-lasting operation.
- Offers flexible venting options for new installs and retrofits.
- Is Wi-Fi compatible for remote monitoring and management.
Product Highlights
This Rinnai tankless water heater provides an endless supply of hot water, saving energy by only heating water when needed. It features an enhanced combustion design and simple installation.
Product Information
Standard Information
-
Brand: RINNAI
-
Manufacturer Part Number: RU160IN
-
Country of Origin: Japan
Technical Specifications
-
Fuel Type: Natural Gas
-
Installation Location: Indoor
-
Product Depth: 11.45 in
-
Product Width: 18.5 in
-
Type: Tankless Water Heater
-
Product Height: 31.3 in
-
Medium: Hot Water
-
Cold Water Inlet: 3/4 Inch
-
Hot Water Outlet: 3/4 Inch
-
CSA Listed: Yes
-
AHRI Certified: Yes
-
Vent Type: Concentric, Twin Pipe, Room Air
-
Minimum Flow Rate: 0.4 GPM
-
Gas Connection Size: 3/4 Inch
-
Mount Type: Wall
-
Application: Residential
-
Product Line: Sensei
-
Storage Type: Tankless
-
Energy Star Listed: Yes
-
Includes Pump: No
-
Uniform Energy Factor: 0.92
-
Maximum Input Capacity: 160000 BTU
-
Minimum Input Capacity: 15000 BTU
-
Phase: 1
-
Frequency: 60 Hz
-
AHRI Reference Number: 10595452
-
Maximum Altitude: 10200 Feet
-
Product Sub-line: Super High Efficiency Plus (SE+)
-
Venting Category: IV
-
Primary Vent Pipe Diameter: 2 Inches
-
Combustion Type: Condensing
-
Ultra Low NOx Emissions: Yes
-
Parts Warranty: 5 Years
-
Heat Exchanger Warranty: 15 Years
-
Flow Rate at 40F Temperature Rise: 7.7 GPM
-
Flow Rate at 45F Temperature Rise: 6.8 GPM
-
Flow Rate at 50F Temperature Rise: 6.2 GPM
-
Flow Rate at 60F Temperature Rise: 5.2 GPM
-
Flow Rate at 70F Temperature Rise: 4.4 GPM
-
Brand: Rinnai
-
Series: SE+ Series
-
Maximum BTU: 160 MBH
-
ENERGY STAR® Qualified: Yes
-
Residential warranty: Limited 15-year or 12,000 hrs. on heat exchanger, 5-year on parts, 1-year on labor (5-year optional on labor)
-
Commercial Warranty: Limited 8-year or 12,000 hrs. on heat exchanger, 5-year on parts, 1-year on labor (2-year optional on labor)
-
Energy Factor: 0.95
-
Flow Range (GPM): 0.26 - 8.0
-
Temperature Range (F): 98°F to 140°F
-
BtuH: 160,000
-
Voltage: AC 120 Volts, 60 Hz
-
Mounting: Wall
-
Standards: AHRI, CSA, CEC, Energy Star, Mobile Home Certified
-
Temp. Range: 98-185 deg. F
-
Gas Connection: 3/4" MNPT
-
Additional Features: ENERGY STAR® Qualified with an Energy Factor of 0.95 / Uniform Energy Factor of 0.93
-
Residential / Commercial: Residential / Commercial
-
Country of Origin (subject to change): Japan
-
Manufacturer Trade Model Number - U.S: RU106iN
-
BTU (minimum): 15,000
-
BTU (maximum): 160,000
-
Gas Type: Natural Gas
-
Installation Type: Indoor
-
Recirculation Capable: Yes
-
Residential ENERGY STAR: Yes
-
Domestic Hot Water Flow Rate (Maximum): 9 GPM
-
Wi-Fi Capable: Yes
-
SCAQMD Approved: Ultra Low NOx
-
Venting Required: No
-
Water Heater Features: Digital Display, Wall Mountable, Wi-Fi, Freeze Protection
-
Primary Warranty: 15 Years
-
Max GPM: 9
-
Household Size (People): 4 - 5
-
BTU Rating: 160000
-
Commercial/Residential: Residential
-
Efficiency Level: High
-
WH Connection Location: Bottom
-
WH Profile Type: Tankless
-
Water Connection: 3/4"
-
Water Pressure (Min): 50
-
Water Pressure (Max): 150
-
Temperature (Min): 98
-
Temperature (Max): 140
-
Natural Gas Pressure (Min): 3.5 WC
-
Natural Gas Pressure (Max): 10.5 WC
-
Amperage: 4
-
Activation GPM: 0.4
-
Maximum Flow Rate: 9 GPM
-
Maximum Gas Input: 160000
-
Minimum Gas Input: 15000
-
Altitude Certification: 10200 ft.
-
Default Temperature: 120 °F
