Product Description

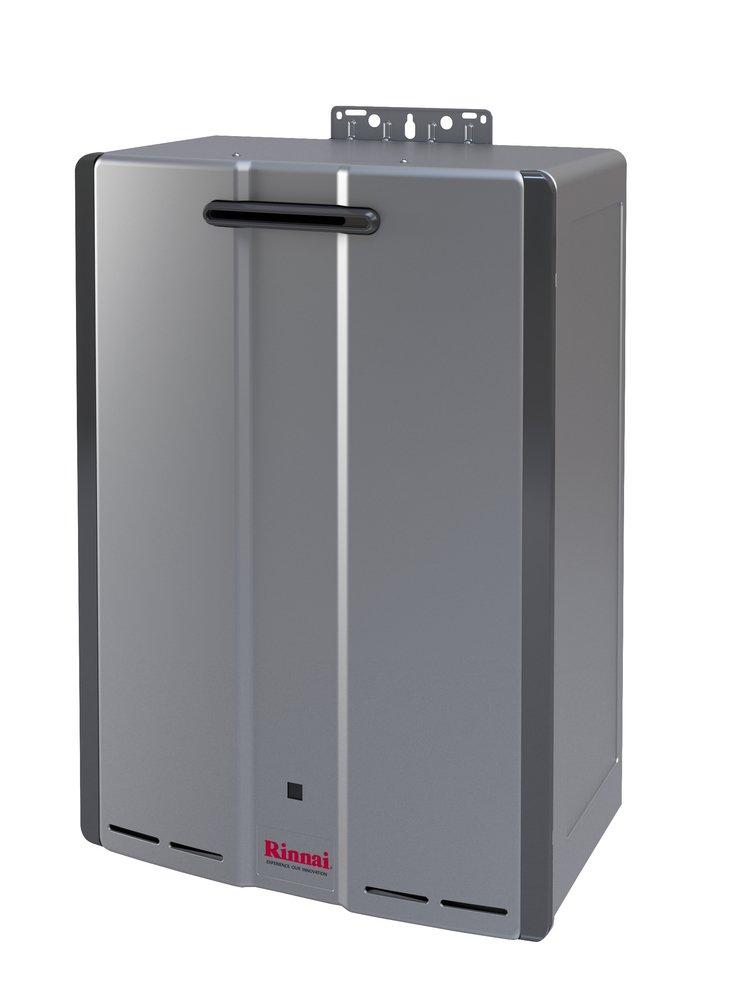

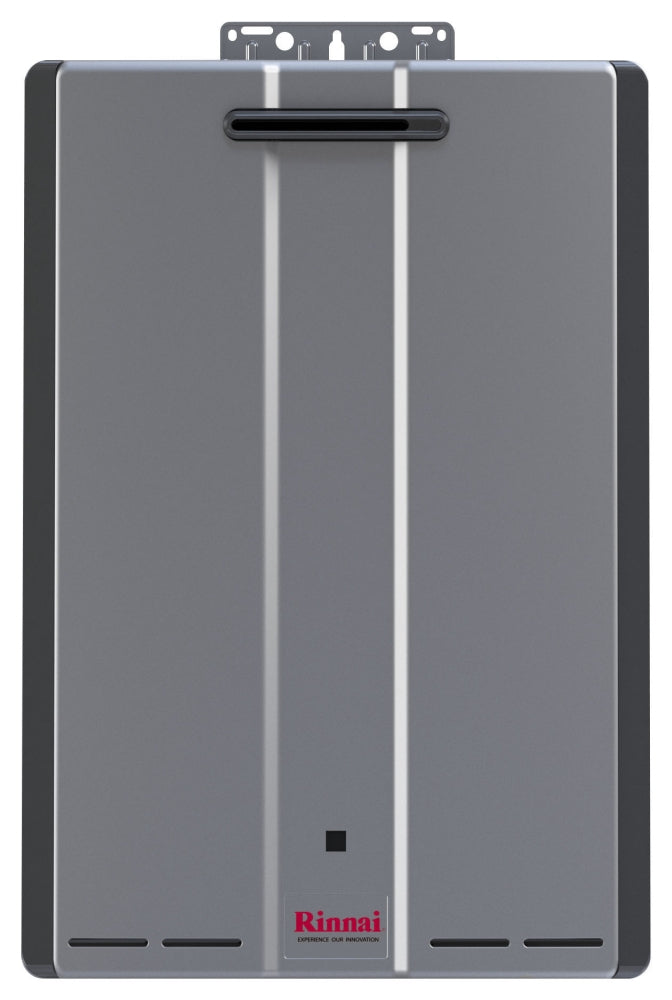

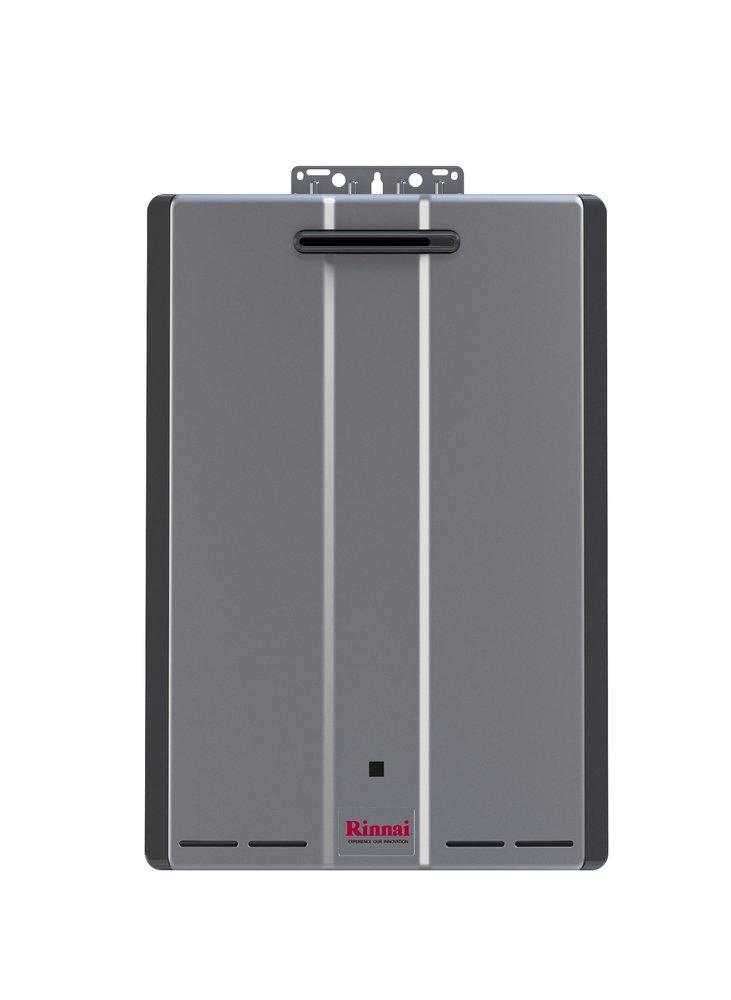

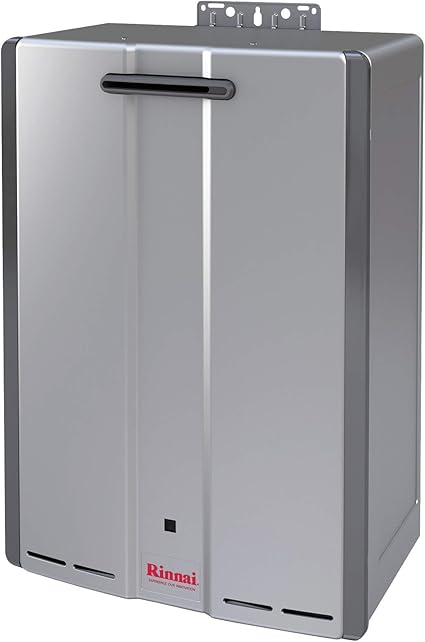

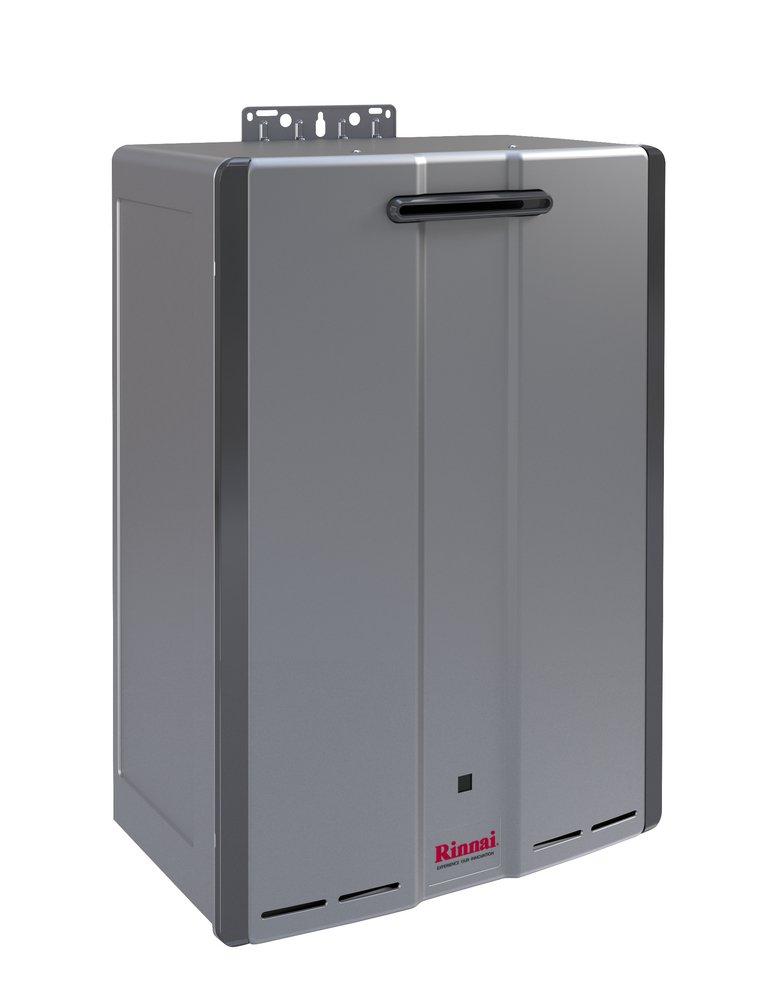

The RINNAI RU160EP is a tankless water heater designed for residential, outdoor use. It features a gas input supply rating of 15000 to 160000 BTU/Hour and an electrical input supply rating of 120 Volt AC at 60 Hertz, 12 Volt DC, 4 Amp, 49 Watt. The unit is lead-free and utilizes direct electronic ignition.
- Easy of Installation and Serviceability
- Compact Design to Save Space
- Wi-Fi Technology for Remote Monitoring and Management
Product Highlights
This tankless water heater provides on-demand hot water, saving energy and space. It is suitable for outdoor locations and offers features like automatic frost protection and boiling protection.
Product Information
Standard Information
-
Brand: RINNAI
-
Manufacturer Part Number: RU160EP
-
Country of Origin: Japan
Technical Specifications
-
Applicable Standard: ANSI Z21.10.3, CSA 4.3, AHRI
-
Electrical Input Supply Rating: 120 Volt AC at 60 Hertz, 12 Volt DC, 4 Amp, 49 Watt
-
Gas Input Supply Rating: 15000 to 160000 BTU/Hour
-
Gas Type: Liquid Propane
-
Ignition Type: Direct Electronic
-
Inclusions/Features: Automatic Frost Protection, Boiling Protection, Combustion Fan RPM Check, Flame Failure-Flame Rod, Over Current Glass Fuse, Remaining Flame, 22 AWG Non-Polarized 2-Core Cable, Integrated Controller, Water Flow Sensor, Electronic Water Control Device
-
Inlet/Outlet Connection: 3/4 Inch Threaded x 3/4 Inch Threaded
-
Options: Condensate Neutralizer, ScaleCutter, Drain Down Kit, Additional Controller, Recess Box, Pipe Cover, Recirculation Pump, DPS/MIS Switch, EZConnect Cable, Control-R Wi-Fi Module, Wireless Accessory
-
Relief Valve Details: Isolation and Pressure Relief Valve Supplied
-
Temperature Rating: 98 to 140 Deg F
-
Type: Residential, Outdoor
-
Energy Factor: 0.95
-
Pressure Rating: 50 to 150 PSI
-
Flow Rating: 8 GPM
-
Sound Level: 52 Decibel
-
Brand: Rinnai
-
Series: SE+
-
Maximum BTU: 160 MBH
-
Location: Outdoor
-
Fuel Type: Propane Gas
-
Compliance: Complies with South Coast Air Quality Management District 14 ng/J or 20 ppm NOx emission levels
-
Voltage: 120 VAC
-
Frequency: 60 Hz
-
DC Voltage: 12 VDC
-
Amperage: 4 A
-
Wattage: 49 W
-
GPM: 8
-
Lead-Free: Yes
-
Application: Residential
-
BTU (Max): 160000
-
BTU (Min): 15000
-
Product Type: Tankless Heater
-
Energy Star Rated: Yes
-
Installation Type: Outdoor Only
-
Temperature Range (F): 98°F to 140°F
-
Flow Rate at 40F Temp Rise (GPM): 7.7
-
Flow Rate at 50F Temp Rise (GPM): 6.2
-
Flow Rate at 60F Temp Rise (GPM): 5.2
-
Flow Rate at 70F Temp Rise (GPM): 4.4
-
MPN: RU160EP
-
Recirculation Capable: Yes
-
Residential Energy Star: Yes
-
Uniform Energy Factor: 0.93
-
Domestic Hot Water Flow Rate (Maximum): 9 GPM / (34.1 l/min)
-
Wi-Fi Capable: Yes
-
SCAQMD Approved: Ultra Low NOx
-
Warranty – Residential Heat Exchanger (months): 180
-
Warranty – Residential Labor (months): 12
-
Warranty – Residential Parts (months): 60
-
Part Number: RUR160EP
-
Item Package Quantity: 1
-
Installation Method: Wall Mounted
