Product Description

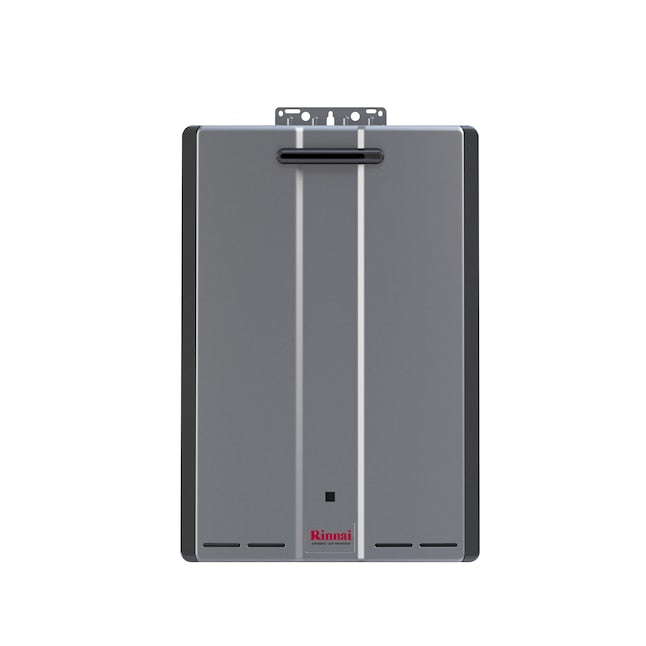

The RINNAI RU160EN Sensei Tankless Water Heater is designed for residential, outdoor use with a gas input supply rating of 15000 to 160000 BTU/Hour. This tankless water heater features direct electronic ignition and automatic frost protection. It has 3/4 Inch Threaded inlet/outlet connections and operates at a sound level of 52 Decibels.
- Easy of Installation and Serviceability
- Compact Design to Save Space
- Wi-Fi Technology for Remote Monitoring and Management
Product Highlights
This tankless water heater provides an endless supply of hot water, is compact, easy to install, and perfect for outdoor locations.
Product Information
Standard Information
-
Brand: RINNAI
-
Manufacturer Part Number: RU160EN
-
Country of Origin: Japan
Technical Specifications
-
Applicable Standard: ANSI Z21.10.3, CSA 4.3, AHRI
-
Electrical Input Supply Rating: 120 Volt AC at 60 Hertz, 4 Amp, 49 Watt
-
Energy Saver Conformance: Yes
-
Gas Input Supply Rating: 15000 to 160000 BTU/Hour
-
Gas Type: Natural Gas
-
Ignition Type: Direct Electronic
-
Inclusions/Features: Automatic Frost Protection, Boiling Protection, Combustion Fan RPM Check, Flame Failure-Flame Rod, Over Current Glass Fuse, Remaining Flame, Integrated Controller, Water Flow Sensor, Electronic Water Control Device
-
Inlet/Outlet Connection: 3/4 Inch Threaded x 3/4 Inch Threaded
-
Options: Condensate Neutralizer, ScaleCutter, Drain Down Kit, Additional Controller, Recess Box, Pipe Cover, Recirculation Pump, DPS/MIS Switch, EZConnect Cable, Control-R Wi-Fi Module, Wireless Accessory
-
Relief Valve Details: Isolation and Pressure Relief Valve Supplied
-
Temperature Rating: 98 to 140 Deg F
-
Type: Residential, Outdoor
-
BTU/Hr: 15000 to 160000
-
Voltage: 120
-
Frequency: 60 Hz
-
Amperage: 4 A
-
GPM: 8
-
Ignition: Direct Electronic Ignition
-
Material: Lead-Free
-
Application: Residential
-
BtuH: 160,000
-
Series: Super High Efficiency Plus
-
Mounting: Wall
-
Standards: AHRI, CSA, CEC, Energy Star, Mobile Home Certified
-
Vent Type: Outdoor
-
Temp. Range: 98-185 deg. F
-
Gas Connection: 3/4" MNPT
-
Flow Rate (GPM): 0.26 to 9
-
Additional Features: ENERGY STAR® Qualified with an Energy Factor of 0.96 / Uniform Energy Factor of 0.93
-
Residential / Commercial: Residential / Commercial
-
Max. BtuH Input: 160,000
-
Min. BtuH Input: 15,000
-
Energy Star Qualified: Yes
-
Wifi Capable: Yes
-
Product Type: Tankless Heater
-
Energy Factor: 0.95
-
Max Flow (GPM): 9
-
Flow Range (GPM): 0.26-6.6
-
Installation Type: Outdoor Only
-
Temperature Range (F): 98°F to 140°F
-
Flow Rate at 40F Temp Rise (GPM): 7.7
-
Flow Rate at 50F Temp Rise (GPM): 6.2
-
Flow Rate at 60F Temp Rise (GPM): 5.2
-
Flow Rate at 70F Temp Rise (GPM): 4.4
-
Depth (Inches): 22"
-
Width (Inches): 15"
-
Height (Inches): 34"
-
Maximum Flow Rate: 9 Gallons Per Minute
-
Efficiency: 0.95 (Uniform Energy Factor)
-
Maximum Operating Pressure: 130 Pound per Square Inch
-
Is Electric: No
-
Manufacturer: Rinnai America Corporation
-
Item model number: RU160eN
-
Size: 9 GPM
-
Installation Method: Wall Mounted
-
Item Package Quantity: 1
-
Certification: Energy Star
-
Special Features: Circ-Logic technology
-
Included Components: Water Heater
-
Batteries Included?: No
-
Batteries Required?: No
-
Warranty Description: Residential Factory Warranty - 120 months (heat exchanger), 12 months (labor), 60 months (parts)
-
Uniform Energy Factor: 0.93
-
Domestic Hot Water Flow Rate (Maximum): 9 GPM / (34.1 l/min)
-
Wi-Fi Capable: Yes
-
SCAQMD Approved: Ultra Low NOx
-
Warranty – Residential Heat Exchanger (months): 180
-
Warranty – Residential Labor (months): 12
-
Warranty – Residential Parts (months): 60
-
BTU (Minimum): 15,000
-
BTU (Maximum): 160,000
-
Product Height: 27.9 in / (709 mm)
-
Product Width: 18.5 in / (470 mm)
-
Product Weight: 62 lb / (28 kg)
-
Recirculation Capable: Yes
-
Residential Energy Star: Yes
-
Brand: Rinnai
-
Model: RU160EN
-
MPN: RU160EN
-
Country of Origin: United States
-
Manufacturer Trade Model Number – U.S.: RU160eN
