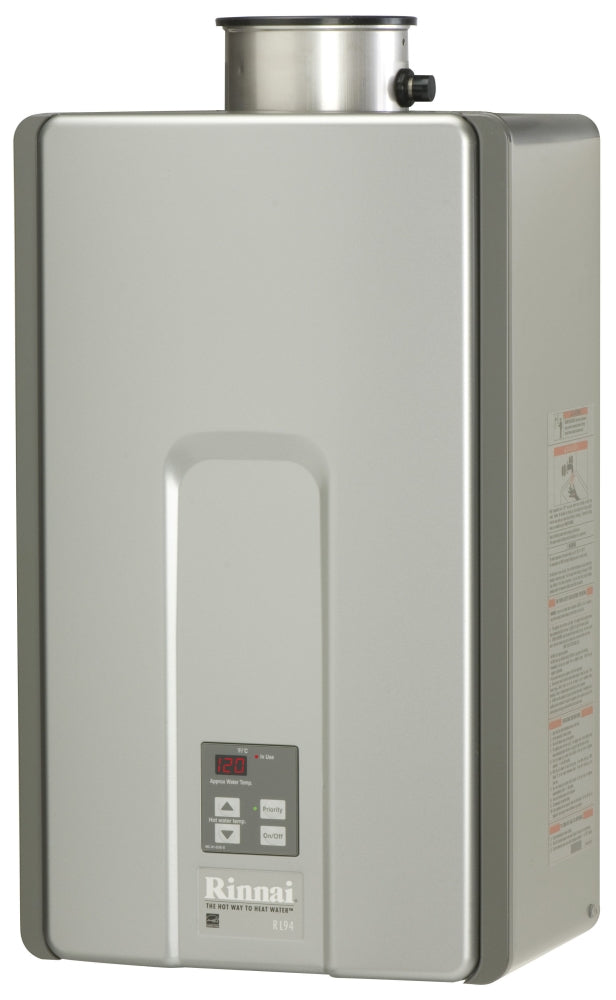

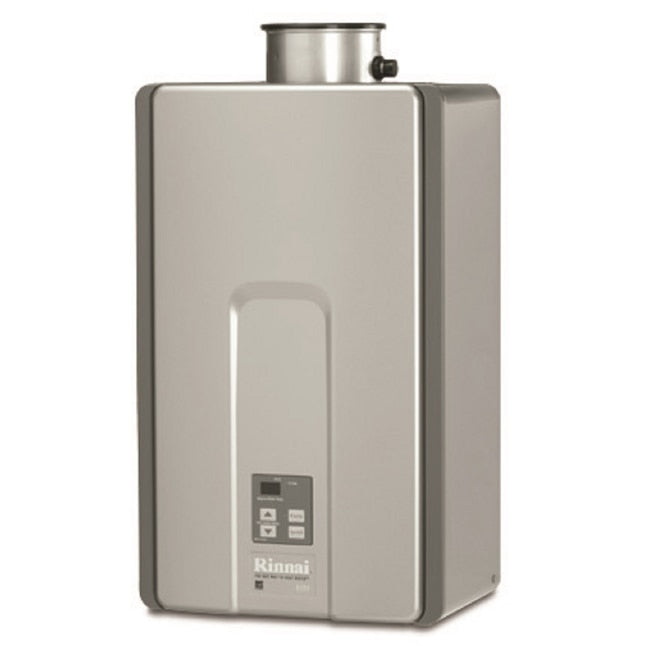

Rinnai RL94IP Tankless Liquid Propane Gas Water Heater 10300 to 199000 BTU/Hr

Product Description

The RINNAI RL94IP is a tankless liquid propane gas water heater with a 3/4" MPT connection and a BTU range of 10300 to 199000 BTU/Hr. It operates at 120 VAC 60 Hz with a power consumption of 97 W. Featuring direct electronic ignition, this lead-free, high-efficiency, non-condensing water heater is suitable for residential and commercial indoor applications.

• Lead-Free
• Direct Electronic Ignition
• High Efficiency
• Non-Condensing

Product Highlights

This Rinnai tankless water heater provides high efficiency and reliable performance for on-demand hot water in residential and commercial settings.

Product Information

Standard Information

• Brand: RINNAI
• Manufacturer Part Number: RL94IP
• Country of Origin: Japan

Technical Specifications

• BTU: 10300 to 199000 BTU/Hour
• Voltage: 120 VAC 60 Hz
• Power Consumption: 97 W
• Ignition Type: Direct Electronic
• Application: Residential/Commercial
• Location: Indoor
• Type: Tankless Liquid Propane Gas Water Heater
• Efficiency: High Efficiency, Non-Condensing
• MPT Size: 3/4"
• Gas Type: Liquid Propane
• Inlet/Outlet Connection: 3/4 Inch Male Threaded
• Temperature Rating: 98 to 120 Deg F
• Applicable Standard: ANSI Z21.10.3, AHRI, CSA (Canada and US), SCAQMD
• Electrical Input Supply Rating: 120 Volt AC 60 Hertz (Appliance), 97 Watt
• Gas Input Supply Rating: 10300 to 199000 BTU/Hour
• Flow Rate: 0.26 to 9.8 GPM
• Uniform Energy Factor: 0.81
• Series: High Efficiency Plus
• Mounting: Wall
• Standards: AHRI, CSA, CEC, Energy Star, Mobile Home Certified
• Vent Type: Concentric
• Temp. Range: 98-185 deg. F
• Gas Connection: 3/4" MNPT
• Additional Features: Energy Factor of 0.82 / Uniform Energy Factor of 0.81
• Residential / Commercial: Residential / Commercial
• Country of Origin (subject to change): Japan
• Product Type: Tankless Heater
• Installation Type: Indoor Only
• Fuel Type: Propane
• Energy Star Rated: Yes
• Energy Factor: 0.82
• BTU (Min): 10300
• BTU (Max): 199000
• Temperature Range (F): 98°F to 140°F
• Hot Water Outlet (NPTF): 3/4"
• Cold Water Inlet (NPTM): 3/4"
• Flow Rate at 40F Temp Rise (GPM): 8.2
• Flow Rate at 70F Temp Rise (GPM): 4.7
• Flow Rate at 50F Temp Rise (GPM): 6.5
• Flow Rate at 60F Temp Rise (GPM): 5.5
• Product Category: Water Heater - Tankless
• Product Line: Luxury Series
• Product Sub-line: High Efficiency Plus (HE+)
• Medium: Hot Water
• Combustion Type: Non-Condensing
• Venting Category: III
• Storage Type: Tankless
• Includes Pump: No
• Gas Conversion Kit: Not Available
• Maximum Input Capacity: 199000 BTU
• Minimum Input Capacity: 10300 BTU
• Flow Rate at 45F Temperature Rise: 6.4 GPM
• Minimum Flow Rate: 0.4 GPM
• Ultra Low NOx Emissions: Yes
• Phase: 1
• Frequency: 60 Hz
• Gas Connection Size: 3/4 Inch
• Cold Water Inlet: 3/4 Inch
• Hot Water Outlet: 3/4 Inch
• Product Height: 22.95 Inches
• Product Width: 14.04 Inches
• Product Depth: 9.27 Inches
• Product Weight: 46.3 Pounds
• CSA Listed: Yes
• AHRI Certified: Yes
• NSF Certified: Yes
• Parts Warranty: 5 Years
• Heat Exchanger Warranty: 12 Years
