Product Description

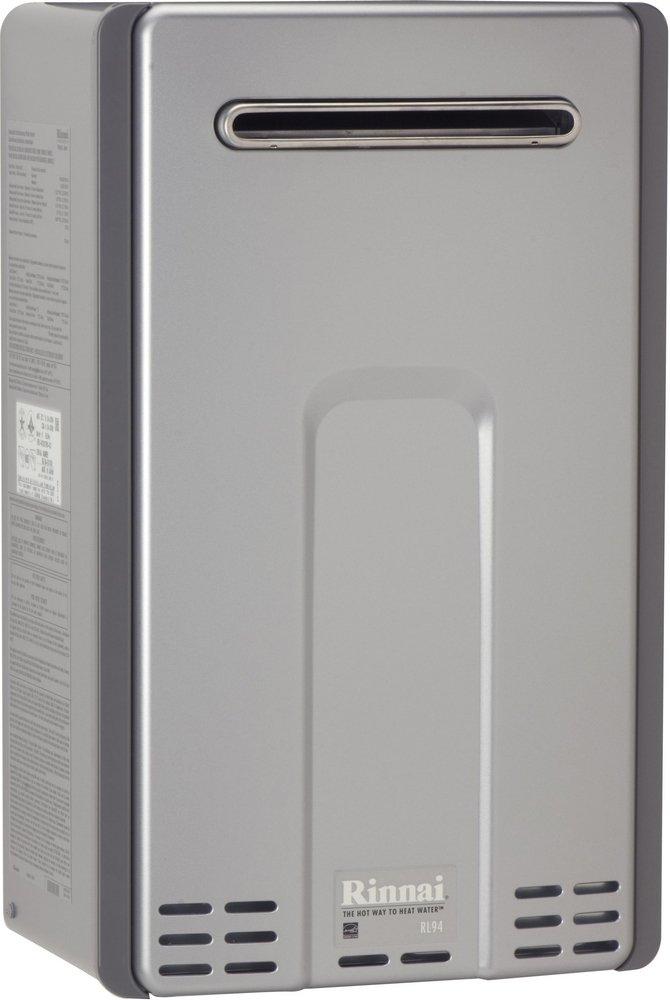

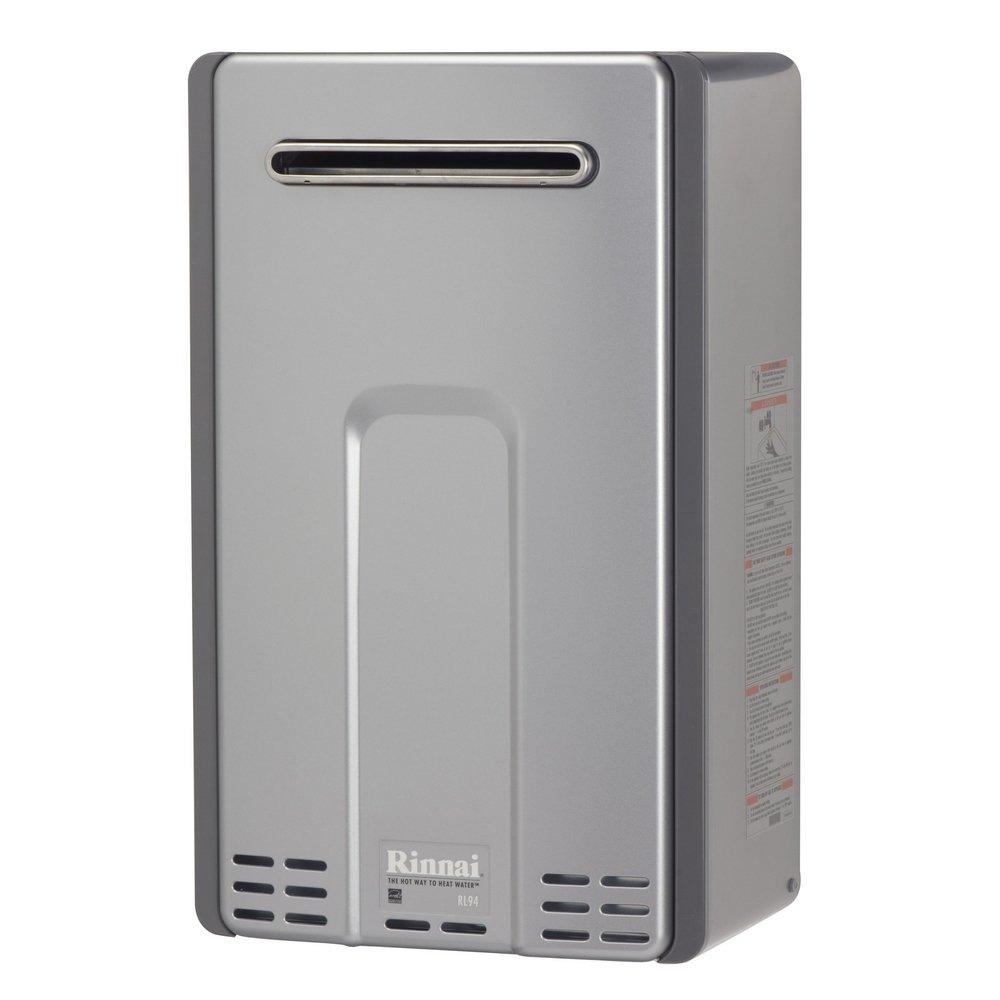

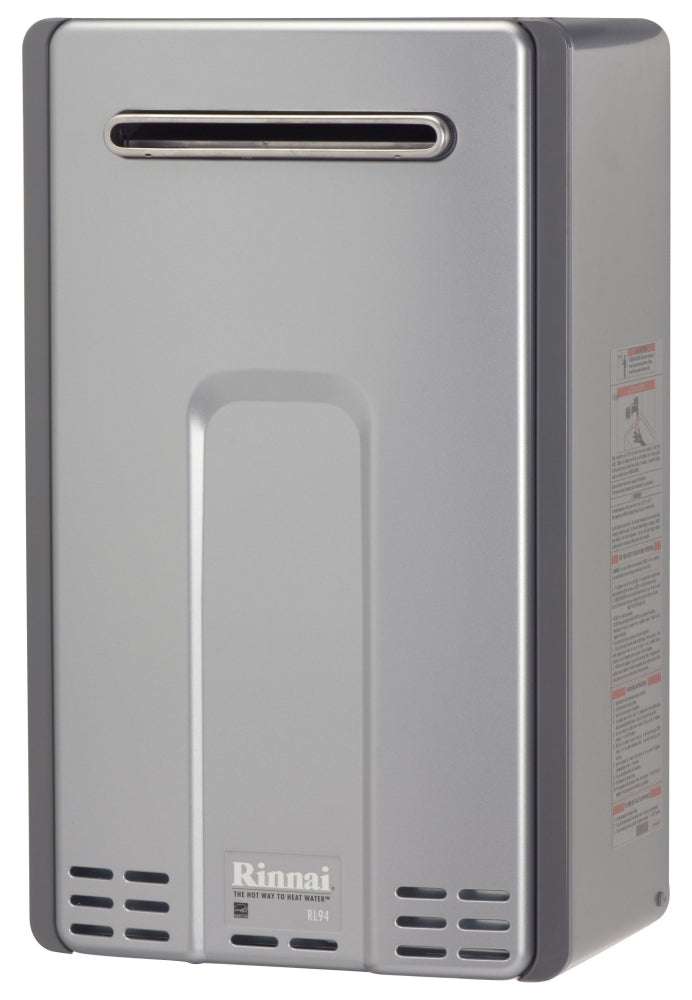

The RINNAI RL94EN is a tankless water heater designed for commercial, residential, and outdoor use. It features direct electronic ignition and operates on natural gas with a gas input supply rating of 10300 to 199000 BTU/Hour. The unit requires an electrical input supply rating of 120 Volt AC at 60 Hertz, 12 Volt DC, 8 Amp, 65 Watt and has a flow rating of 9.8 GPM.
- Easy of Installation and Serviceability
- Compact Design to Save Space
- Wi-Fi Technology for Remote Monitoring and Management
Product Highlights
This tankless water heater provides an endless supply of hot water and is suitable for outdoor locations. It features automatic frost protection, boiling protection, and complies with South Coast Air Quality Management District 14 ng/J or 20 PPM NOx Emission Levels.
Product Information
Standard Information
-
Brand: RINNAI
-
Manufacturer Part Number: RL94EN
-
Country of Origin: Japan
Technical Specifications
-
Applicable Standard: ANSI Z21.10.3, CSA 4.3, AHRI
-
Electrical Input Supply Rating: 120 Volt AC at 60 Hertz, 12 Volt DC, 8 Amp, 65 Watt
-
Gas Input Supply Rating: 10300 to 199000 BTU/Hour
-
Gas Type: Natural Gas
-
Ignition Type: Direct Electronic
-
Inclusions/Features: Automatic Frost Protection, Boiling Protection, Combustion Fan RPM Check, Flame Failure-Flame Rod, Over Current Glass Fuse, Remaining Flame, Water Flow Sensor, Electronic Water Control Device
-
Inlet/Outlet Connection: 3/4 Inch Threaded x 3/4 Inch Threaded
-
Options: Condensate Neutralizer, ScaleCutter, Additional Controller, Recess Box, Pipe Cover, Recirculation Pump, EZConnect Cable, Control-R Wi-Fi Module, Wireless Accessory
-
Relief Valve Details: Isolation and Pressure Relief Valve Supplied
-
Temperature Rating: 98 to 120 Deg F
-
Type: Commercial, Residential, Outdoor
-
Energy Factor: 0.82
-
Pressure Rating: 20 to 150 PSI
-
Flow Rating: 9.8 GPM
-
Sound Level: 55 Decibel
-
Voltage: 120 VAC
-
Frequency: 60 Hz
-
DC Voltage: 12 VDC
-
Amperage: 8 A
-
Wattage: 65 W
-
Material: Lead-Free
-
Application: Residential
-
BtuH: 199,000
-
Series: High Efficiency Plus
-
Mounting: Wall
-
Standards: AHRI, CSA, CEC, Energy Star, Mobile Home Certified
-
Vent Type: Outdoor
-
Temp. Range: 98-185 deg. F
-
Gas Connection: 3/4" MNPT
-
Flow Rate (GPM): 0.26 to 9.8
-
Additional Features: Energy Factor of 0.82 / Uniform Energy Factor of 0.81
-
Residential / Commercial: Residential / Commercial
-
BTU (Max): 199000
-
BTU (Min): 10300
-
Temperature Range (F): 98°F to 140°F
-
Hot Water Outlet (NPTF): 3/4"
-
Cold Water Inlet (NPTM): 3/4"
-
Height (Inches): 23"
-
Width (Inches): 14"
-
Depth (Inches): 9"
-
Flow Rate at 70F Temp Rise (GPM): 4.7
-
Flow Rate at 60F Temp Rise (GPM): 5.5
-
Flow Rate at 50F Temp Rise (GPM): 6.5
-
Flow Rate at 40F Temp Rise (GPM): 8.2
-
Product Category: Water Heater - Tankless
-
Product Line: Luxury Series
-
Product Sub-line: High Efficiency Plus (HE+)
-
Medium: Hot Water
-
Combustion Type: Non-Condensing
-
Storage Type: Tankless
-
Installation Location: Outdoor
-
Includes Pump: No
-
Gas Conversion Kit: Not Available
-
Maximum Input Capacity: 199000 BTU
-
Minimum Input Capacity: 10300 BTU
-
Uniform Energy Factor: 0.81
-
Minimum Flow Rate: 0.4 GPM
-
Ultra Low NOx Emissions: Yes
-
Phase: 1
-
Gas Connection Size: 3/4 Inch
-
Cold Water Inlet: 3/4 Inch
-
Hot Water Outlet: 3/4 Inch
-
CSA Listed: Yes
-
AHRI Certified: Yes
-
NSF Certified: Yes
-
Parts Warranty: 5 Years
-
Heat Exchanger Warranty: 12 Years
-
Collection: RL Series
-
Condensing: No
-
Emission: Ultra-Low NOx
-
Energy Star Compliant: No
-
Flow Rate: 9.8 gpm
-
Fuel Type: Natural Gas
-
Indoor Outdoor: Outdoor
-
MBH: 199
-
Maximum Temperature: 140
-
Minimum Temperature: 98
-
Power Source: Gas
-
Pressure - Low: 20
-
Pressure - Maximum: 150 psi
-
Wireless Communication: Wi-Fi
