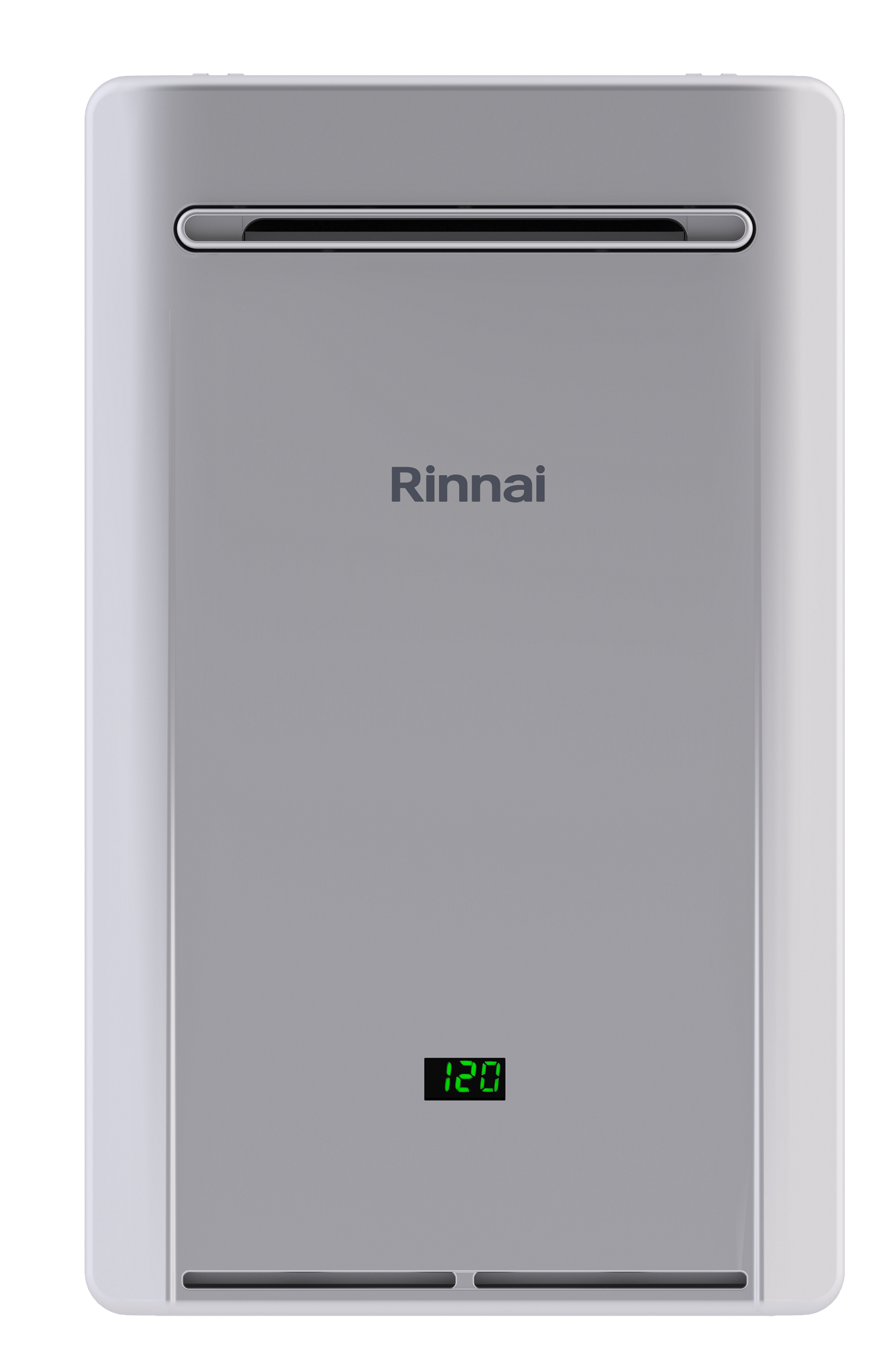

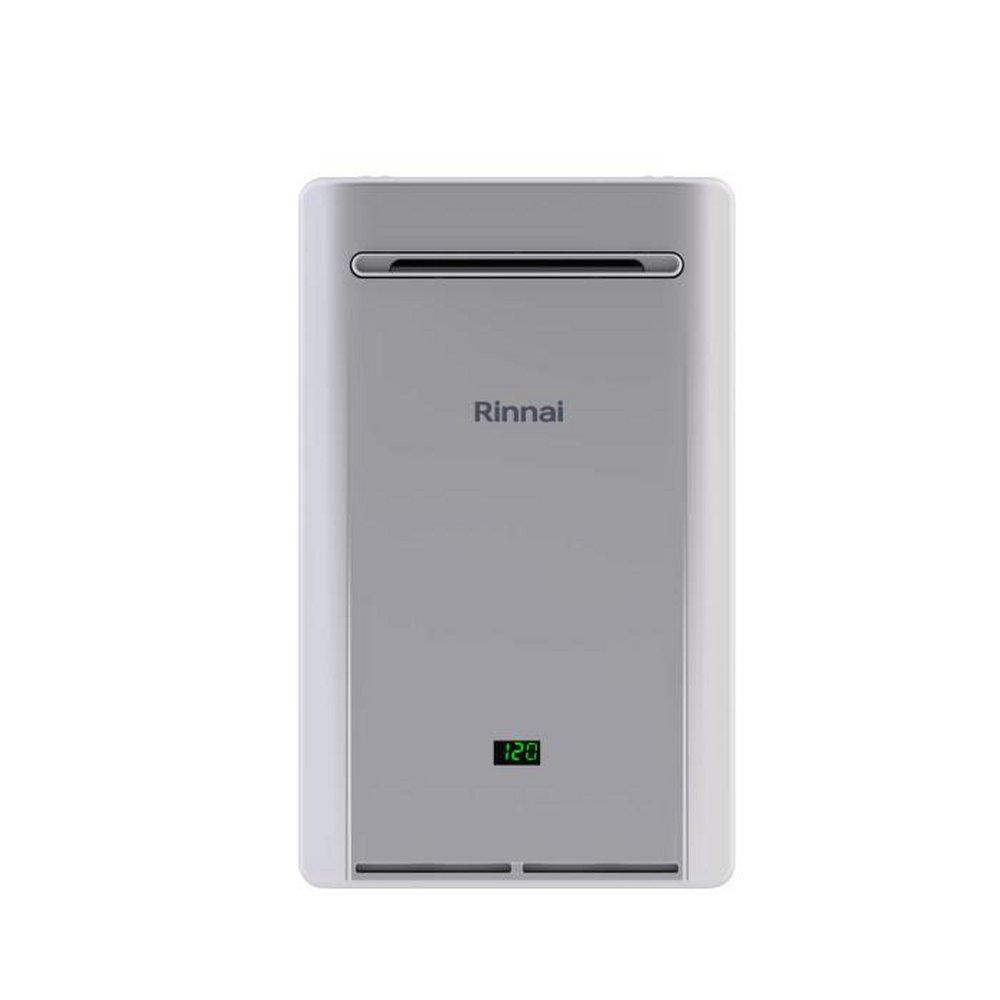

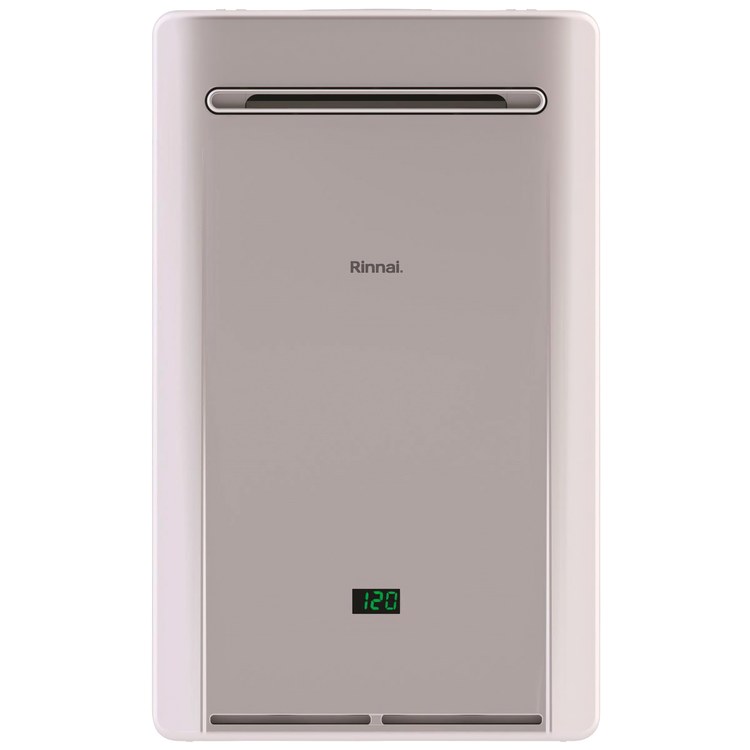

Rinnai REP199EN Model Series 199 MBH Outdoor Natural Gas Tankless Water Heater

Product Description

The RINNAI REP199EN is a Model Series 199 MBH outdoor non-condensing natural gas tankless water heater. It features Wi-Fi technology for remote monitoring, management, and recirculation control. This water heater offers improved gas conversion and a compact design to save space. It also features ultra-low NOx and includes certified isolation valves for potable water.

• Wi-Fi technology for remote monitoring, management and recirculation control
• Improved gas conversion
• Compact design to save space

Product Highlights

This Rinnai tankless water heater is mobile home certified and complies with south coast air quality management district 14 ng/J or 20 ppm NOx emission levels.

Product Information

Standard Information

• Brand: RINNAI
• Manufacturer Part Number: REP199EN
• Country of Origin: USA

Technical Specifications

• Gas Type: Natural Gas

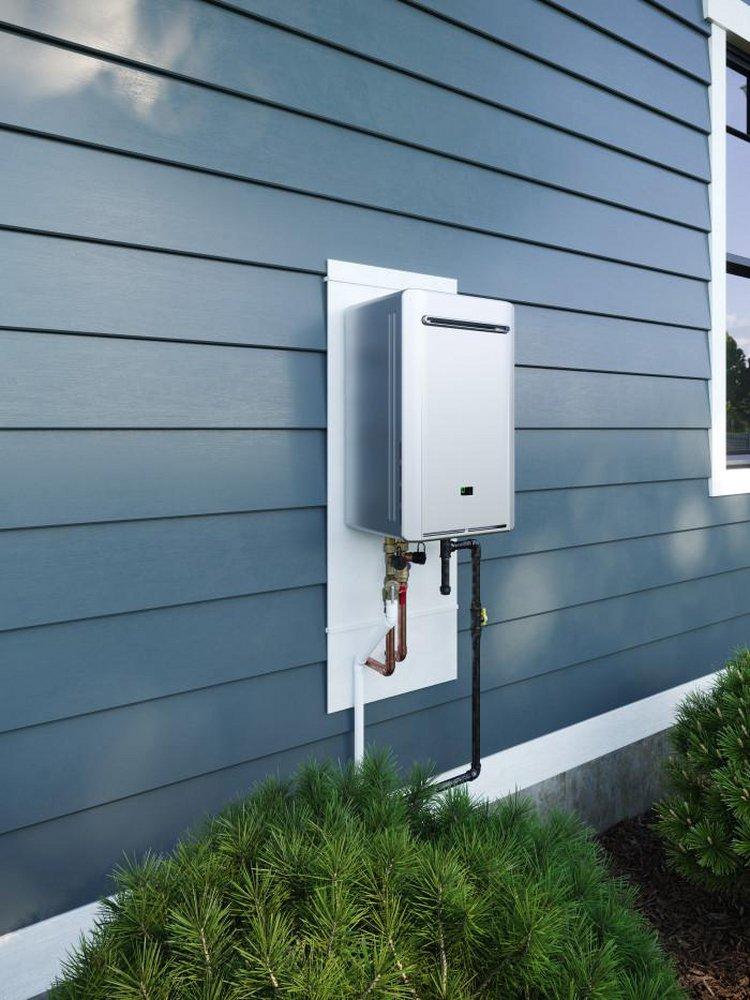

• Installation Type: Outdoor
• Recirculation Capable: Yes
• Uniform Energy Factor (UEF): 0.81
• Wi-Fi Capable: Yes
• Product Depth: 10.77 in / (274 mm)
• Product Height: 24.64 in / (626 mm)
• Product Width: 14.05 in / (357 mm)
• Fuel: Natural Gas
• Style: Non-Condensing
• BTU: 199K BTU
• MPN: REP199EN
• Gas Connection: 3/4"
• Water Connection: 3/4"
• Water Pressure (Min): 20 PSI
• Water Pressure (Max): 150 PSI
• Temperature (Min): 120 °F
• Temperature (Max): 140 °F
• Voltage: 120V
• Frequency: 60 Hz
• Activation GPM: 0.4
• Maximum Flow Rate: 7.9 GPM
• Maximum Gas Input: 199000 BTU/hr
• Minimum Flow Rate: 0.4 GPM
• Control Type: Electronic
• Heating Technology: Non-Condensing
• Indoor Installation: No
• Water Connection Type: MNPT, NPT
• Recirculation: Yes
• Altitude Certification: 10000 ft.
• Amperage: 4 A
• Condensing: No
• Default Temperature: 120 °F
• Energy Factor: 0.81
• Ignition Type: Electric
• Max BTU Input: 199000 BTU/hr
• Power Source: Hardwired
• Wattage: 30 W
• Approved for Commercial Use: No
• Certifications: AHRI, CSA
• Collection: High Efficiency
• Energy Star: No
• Mobile Home Approved: Yes
• Outdoor Approved: Yes
• Product Variation: Whole House Water Heater
• Title 20 Compliant: Yes
• Brand: Rinnai
• Manufacturer: Rinnai
• Capacity: 7.9 Gallons
• Efficiency: High
• Model: High Efficiency BTU Natural Gas Exterior Tankless Water Heater
• Item model number: REU-VEP2737WD-US-N
