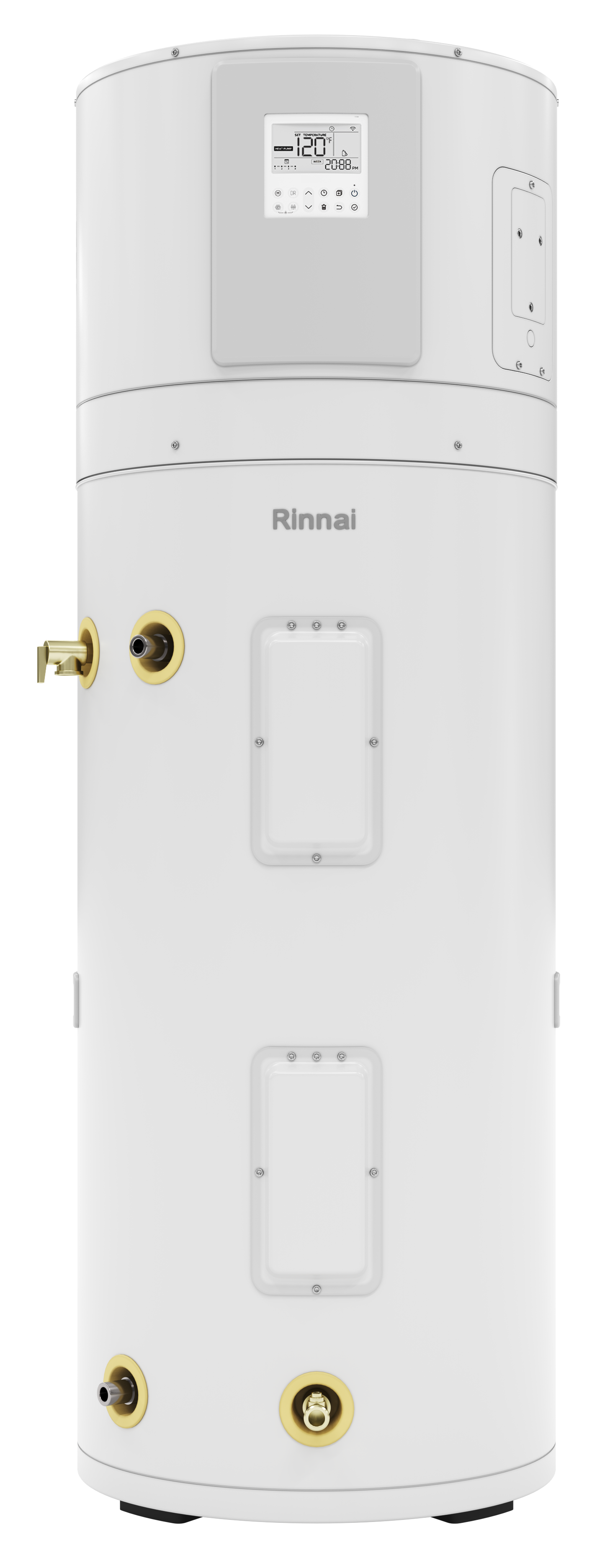

Rinnai REHP65BM Heat Pump Water Heater 65 Gallon

Product Description

The Rinnai REHP65BM heat pump water heater is a hybrid/electric model with a 65-gallon storage volume. It features demand response capabilities to optimize energy consumption and is capable of delivering up to 91 gallons in the first hour. The REHP65BM is designed to meet high-efficiency standards and rebate requirements.

• Features a CTA-2045 port for demand response.
• Offers 5 operating modes to meet various hot water needs.
• Compliant with ENERGY STAR standards.

Product Highlights

This Rinnai heat pump water heater combines efficiency and performance, making it suitable for households looking to reduce energy consumption.

Product Information

Standard Information

• Brand: RINNAI
• Manufacturer Part Number: REHP65BM

Technical Specifications

• Partner: Rinnai America Corporation
• Type: Hybrid/Electric Heat Pump
• Fuel: Electric
• Max. Amps: 24.0
• Input Voltage: 240
• Draw Pattern (Intended Usage): First Hour Rating (gallons)
• Heat Pump Type: 240 Volt Integrated HPWH
• Lower Compressor Cut Off Temperature for HPWH (°F): 37.4
• Upper Compressor Cut Off Temperature for HPWH (°F): 107.6
• Refrigerant Type: R-134a
• Uniform Energy Factor (UEF): 3.9
• Recovery Efficiency (%): 450.0
• Electric Input (kW): 5.5
• Electric Usage (kWh/yr): 1240.0
• Storage Volume (gallons): 65.0
• Tank Diameter (inches): 21.8
• Tank Height (inches): 45.5
• Connected Capable: Yes
• Connects Using: Wi-Fi,CTA-2045
• DR Protocol: CTA-2045-B
• Communication Hardware Architecture: A - Built-in
• Time of Use Schedule: Yes
• ENERGY STAR Certified: Yes
• Market Date Certified: 01/16/2025
• Markets: United States, Canada
• ENERGY STAR Unique ID: 3722798
• Product Type: Water Heater
• AC or DC: AC
• Certification Type: CTA-2045-B Level 1
• Size Gallons: 65
• Maximum Recommended Household Size: 3
• Cool Climate Efficiency CCE: 3.5
• Eco Port CTA 2045 Compliant Communication Port: Yes
• NEEA Tier: 4
• IRA Eligible: Yes
• Plug in: No
