Product Description

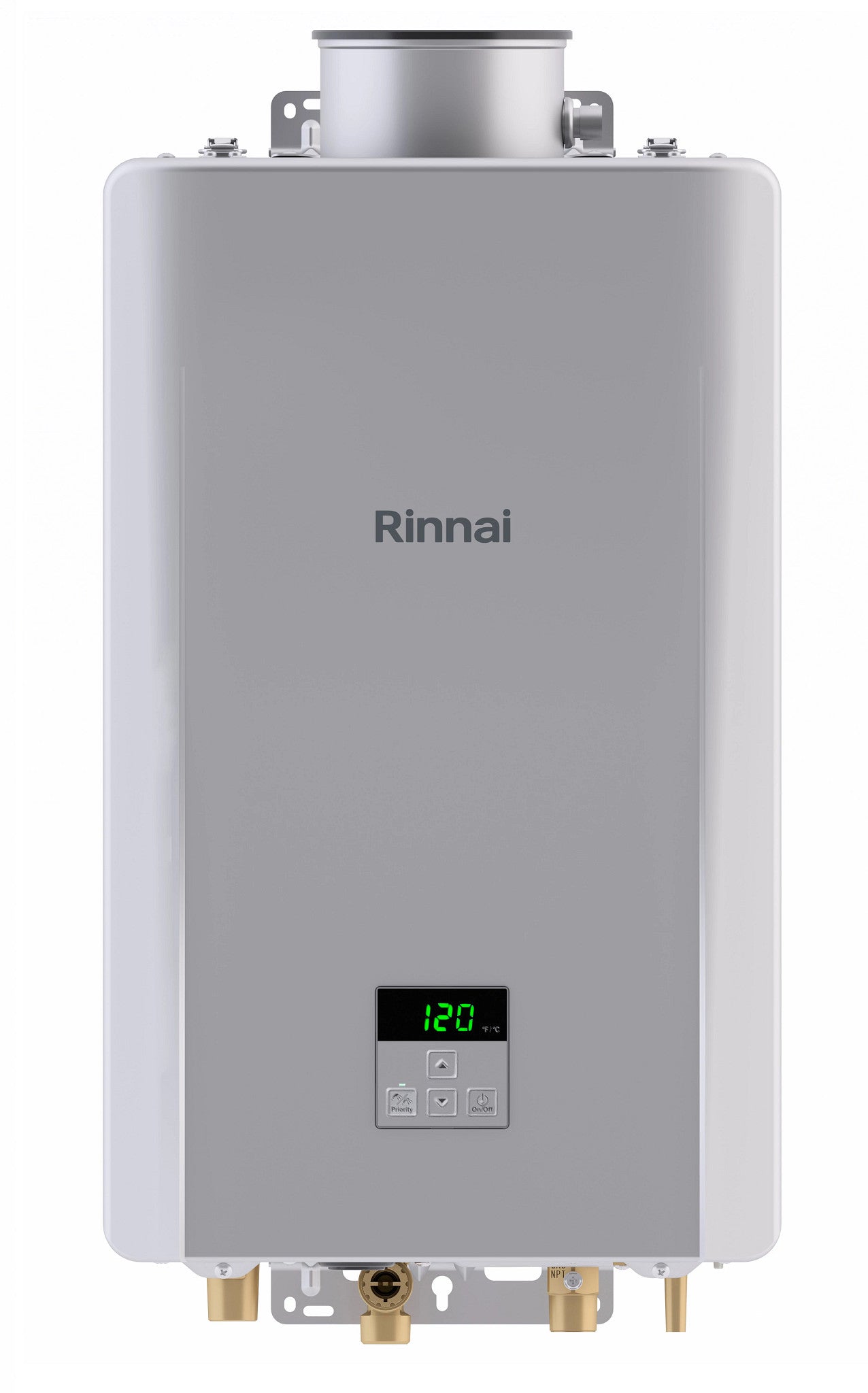

The Rinnai RE160IN is a tankless non-condensing natural gas water heater with 160Kbtu. It features Wi-Fi technology for remote monitoring, management, and recirculation control. Its compact design saves space and complies with south coast air quality management district 14 ng/J or 20 ppm NOx emission levels. Mobile home certified.
- Wi-Fi technology for remote monitoring, management and recirculation control
- Improved gas conversion
- Compact design to save space
Product Highlights
This natural gas tankless water heater is ideal for small to medium homes, offering high efficiency and comfort in a compact, easy-to-install design.
Product Information
Standard Information
-
Brand: RINNAI
-
Manufacturer Part Number: RE160IN
-
Country of Origin: USA
Technical Specifications
-
Type: Non-Condensing
-
Voltage: 120V
-
BTU (Max): 160000
-
BTU (Min): 10400
-
Fuel Type: Natural Gas
-
Vent Type: Direct Vent
-
Application: Residential
-
Product Type: Tankless Heater
-
Energy Factor: 0.81
-
Gas Connection: 3/4"
-
Flow Range (GPM): 0.4 - 7.4
-
Energy Star Rated: No
-
Installation Type: Indoor Only
-
Temperature Range (F): 98°F to 140°F
-
Cold Water Inlet (NPTM): 3/4"
-
Hot Water Outlet (NPTF): 3/4"
-
Flow Rate at 40F Temp Rise (GPM): 6.6
-
Flow Rate at 50F Temp Rise (GPM): 5.3
-
Flow Rate at 60F Temp Rise (GPM): 4.4
-
Flow Rate at 70F Temp Rise (GPM): 3.8
-
Uniform Energy Factor: 0.81
-
Maximum Flow Rate: 6.6 GPM
-
Water Connection: 3/4"
-
Water Pressure (Min): 20
-
Water Pressure (Max): 150
-
Temperature (Min): 98°F
-
Temperature (Max): 140°F
-
Maximum Gas Output: 160,000 BTU
-
Activation GPM: 0.4
-
Minimum Flow Rate: 0.4 GPM
-
Heating Technology: Non-Condensing
-
Indoor Installation: Yes
-
Water Connection Type: NPT
-
Default Temperature: 120 °F
-
Ignition Type: Electric
-
Power Source: Plug-In
-
Approved for Commercial Use: Yes
-
Certifications: AHRI, CSA
-
Heat Exchanger Warranty: 15 Years
-
Made in America: Yes
-
Manufacturer Warranty: 1 Year Labor, 5 Year Parts
-
Mobile Home Approved: Yes
-
Outdoor Approved: No
-
Product Variation: Point-Of-Use Water Heater
-
Title 20 Compliant: Yes
-
Maximum Gallons per Minute (NA): 6.6
-
Product Line: RE Series
-
Product Sub-line: High Efficiency (HE)
-
Product Category: Water Heater - Tankless
-
Medium: Hot Water
-
Combustion Type: Non-Condensing
-
Venting Category: III
-
Storage Type: Tankless
-
Mount Type: Wall
-
Installation Location: Indoor
-
Maximum Altitude: 10200 Feet
-
Includes Pump: No
-
Gas Conversion Kit: Not Available
-
Subscription Eligible: No
-
Maximum Input Capacity: 160000 BTU
-
Minimum Input Capacity: 10400 BTU
-
Flow Rate at 40F Temperature Rise: 6.6 GPM
-
Flow Rate at 45F Temperature Rise: 5.9 GPM
-
Flow Rate at 50F Temperature Rise: 5.3 GPM
-
Flow Rate at 60F Temperature Rise: 4.4 GPM
-
Flow Rate at 70F Temperature Rise: 3.8 GPM
-
Ultra Low NOx Emissions: Yes
-
Phase: 1
-
Frequency: 60 Hz
-
Gas Connection Size: 3/4 Inch
-
Cold Water Inlet: 3/4 Inch
-
Hot Water Outlet: 3/4 Inch
-
CSA Listed: Yes
-
AHRI Certified: Yes
-
NSF Certified: Yes
-
AHRI Reference Number: 208210668
-
Parts Warranty: 5 Years
