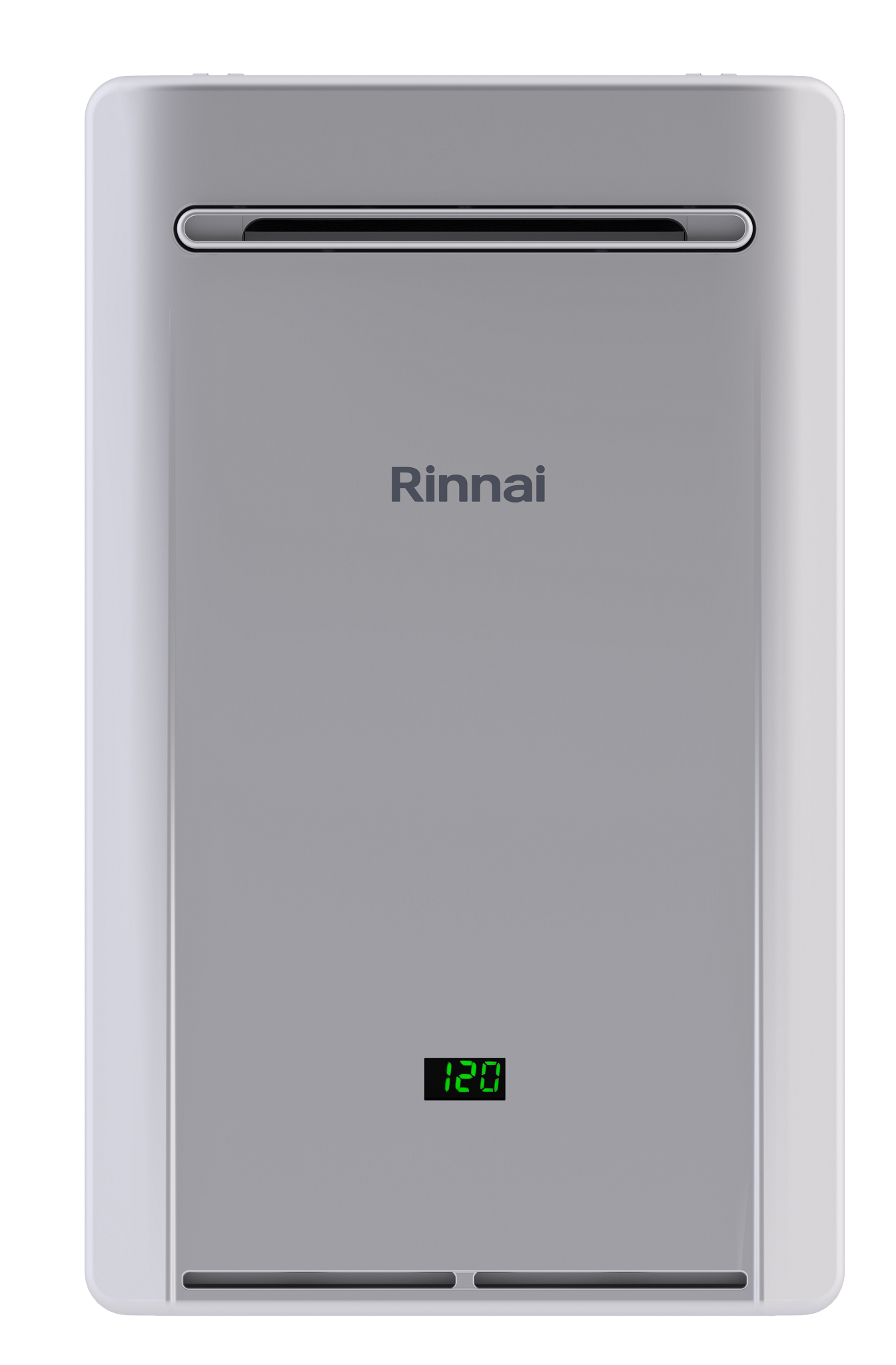

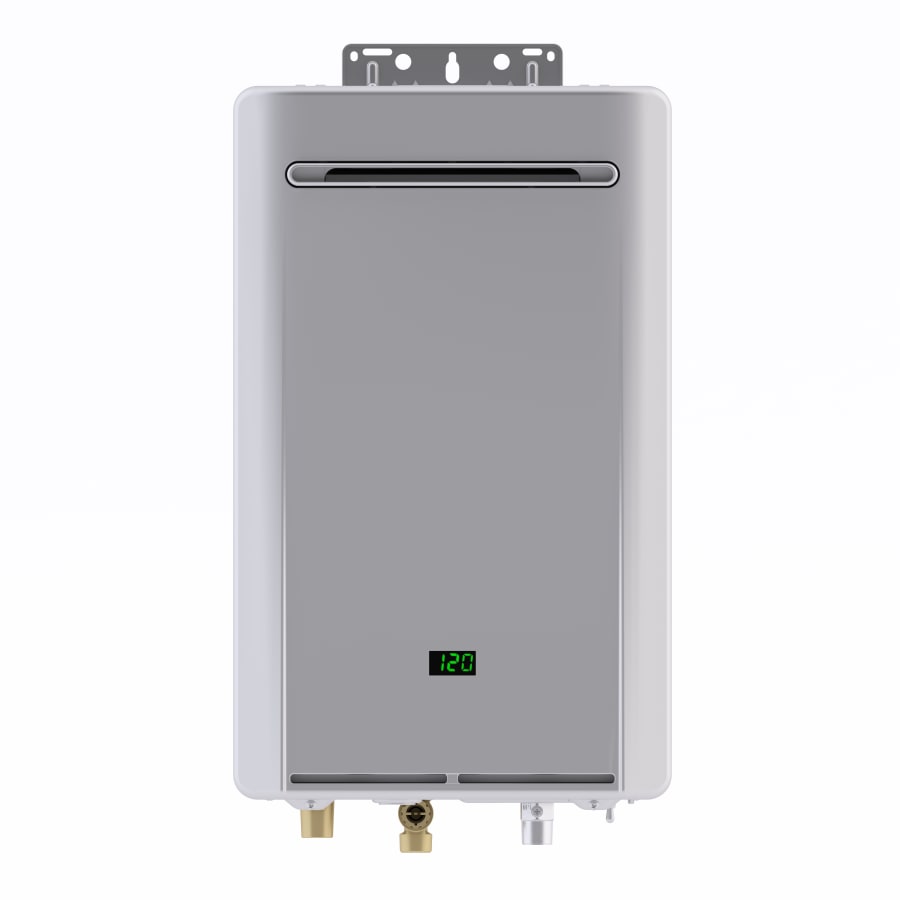

Rinnai RE160eN Non-Condensing Natural Gas Tankless Water Heater 160,000 BTU Up to 6.1 GPM

Product Description

The Rinnai RE160eN is a non-condensing natural gas tankless water heater with an output of up to 6.1 GPM and 160,000 BTU, designed for outdoor installation. This tankless water heater provides an endless supply of hot water, remaining uninterrupted. It saves energy by only heating water when needed and has an electric ignition. It is also Wi-Fi compatible for remote monitoring.

• Continuous Water for Multiple Applications
• Energy Efficient Promise
• Wi-Fi Compatible
• Compact Design

Product Highlights

Ideal for small to medium homes, the Rinnai RE160eN is easy to install, reliable, and perfect for outdoor locations. It offers high efficiency and comfort.

Product Information

Standard Information

• Brand: RINNAI
• Manufacturer Part Number: RE160eN
• Country of Origin: USA

Technical Specifications

• Model: RE160eN
• SKU: 1229385
• Brand: RINNAI
• Type: Tankless Water Heater
• Product Line: RE Series
• Product Sub-line: High Efficiency (HE)
• Product Category: Water Heater - Tankless
• Medium: Hot Water
• Fuel Type: Natural Gas
• Combustion Type: Non-Condensing
• Venting Category: III
• Storage Type: Tankless
• Application: Residential
• Mount Type: Wall
• Installation Location: Outdoor
• Maximum Altitude: 10200 Feet
• Includes Pump: No
• Maximum Input Capacity: 160000 BTU
• Minimum Input Capacity: 10400 BTU
• Flow Rate at 40F Temperature Rise: 6.6 GPM
• Flow Rate at 45F Temperature Rise: 5.9 GPM
• Flow Rate at 50F Temperature Rise: 5.3 GPM
• Flow Rate at 60F Temperature Rise: 4.4 GPM
• Flow Rate at 70F Temperature Rise: 3.8 GPM
• Uniform Energy Factor: 0.81
• Minimum Flow Rate: 0.26 GPM
• Ultra Low NOx Emissions: Yes
• Voltage: 120 Volts
• Phase: 1
• Frequency: 60 Hz
• Gas Connection Size: 3/4 Inch
• Cold Water Inlet: 3/4 Inch
• Hot Water Outlet: 3/4 Inch
• Product Height: 24.65 Inches
• Product Width: 14.04 Inches
• Product Depth: 10.77 Inches
• CSA Listed: Yes
• AHRI Certified: Yes
• NSF Certified: Yes
• AHRI Reference Number: 208210673
• Parts Warranty: 5 Years
• Heat Exchanger Warranty: 15 Years
• Maximum Flow Rate: 6.6 Gallons Per Minute
• Maximum Temperature: 140 Degrees Fahrenheit
• Power Source: Gas Powered
• Gas Connection: 3/4"
• Water Connection: 3/4"
• Water Pressure (Min): 20
• Water Pressure (Max): 150
• Temperature (Min): 98°F
• Activation GPM: 0.4
• Heating Technology: Non-Condensing
• Water Connection Type: NPT
• Default Temperature: 120 °F
• Ignition Type: Electric
• Outdoor Approved: Yes
• Title 20 Compliant: Yes
