Product Description

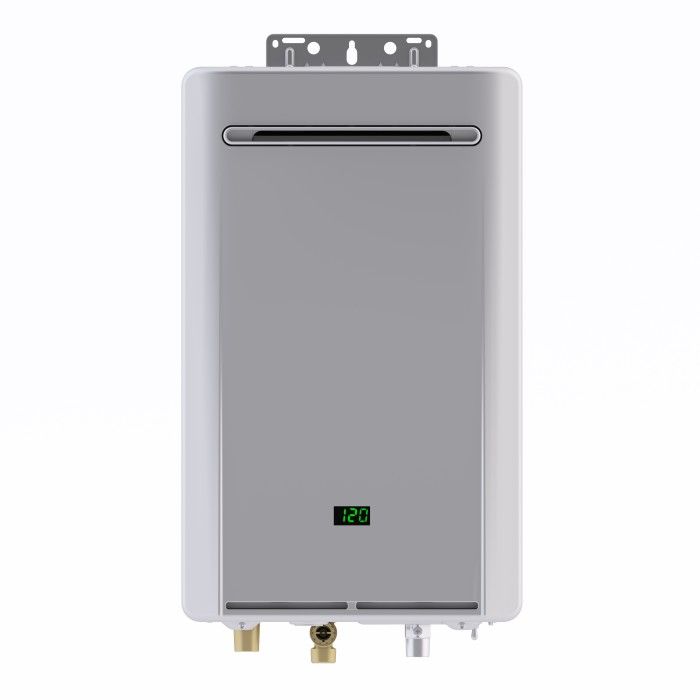

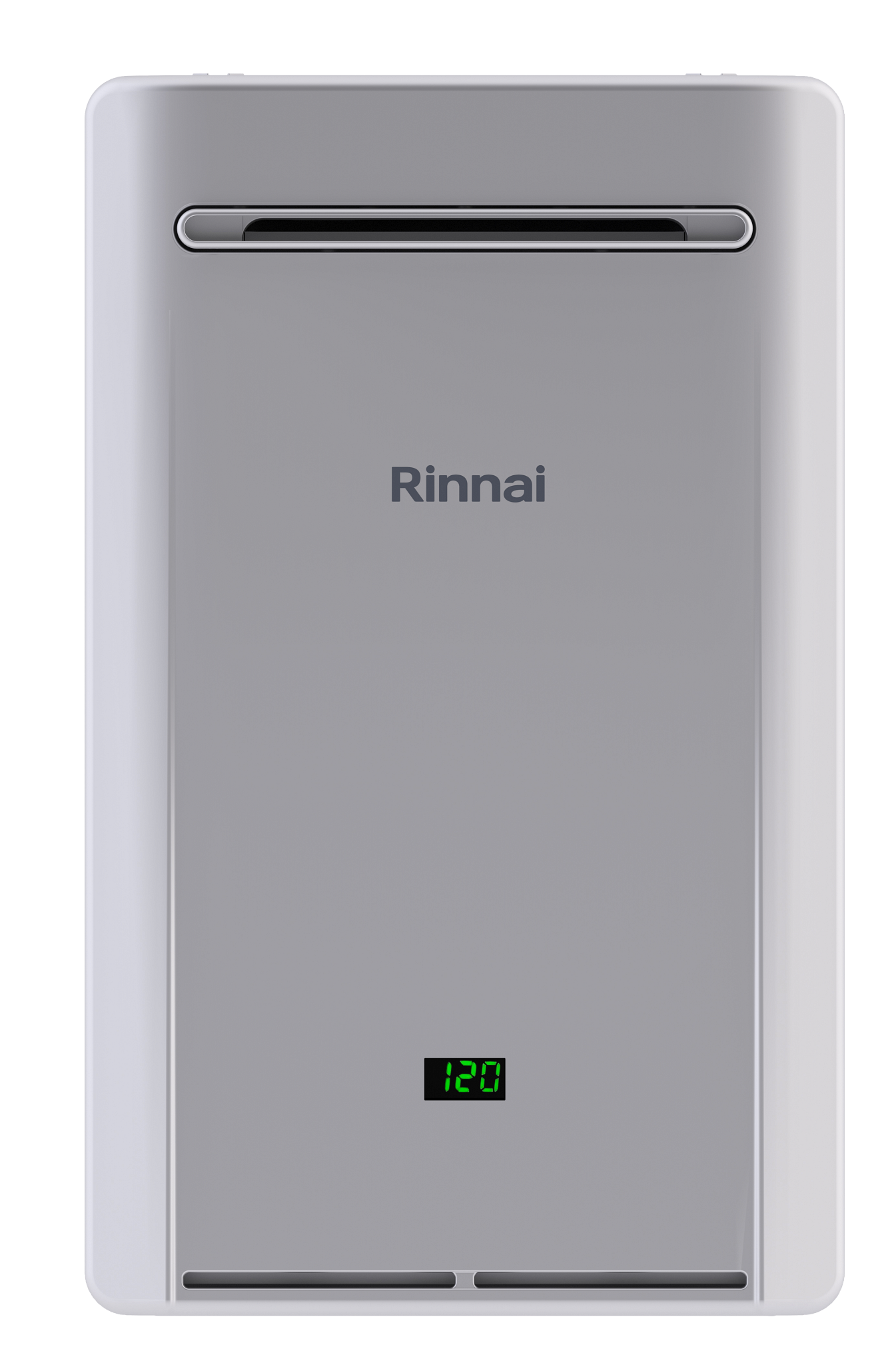

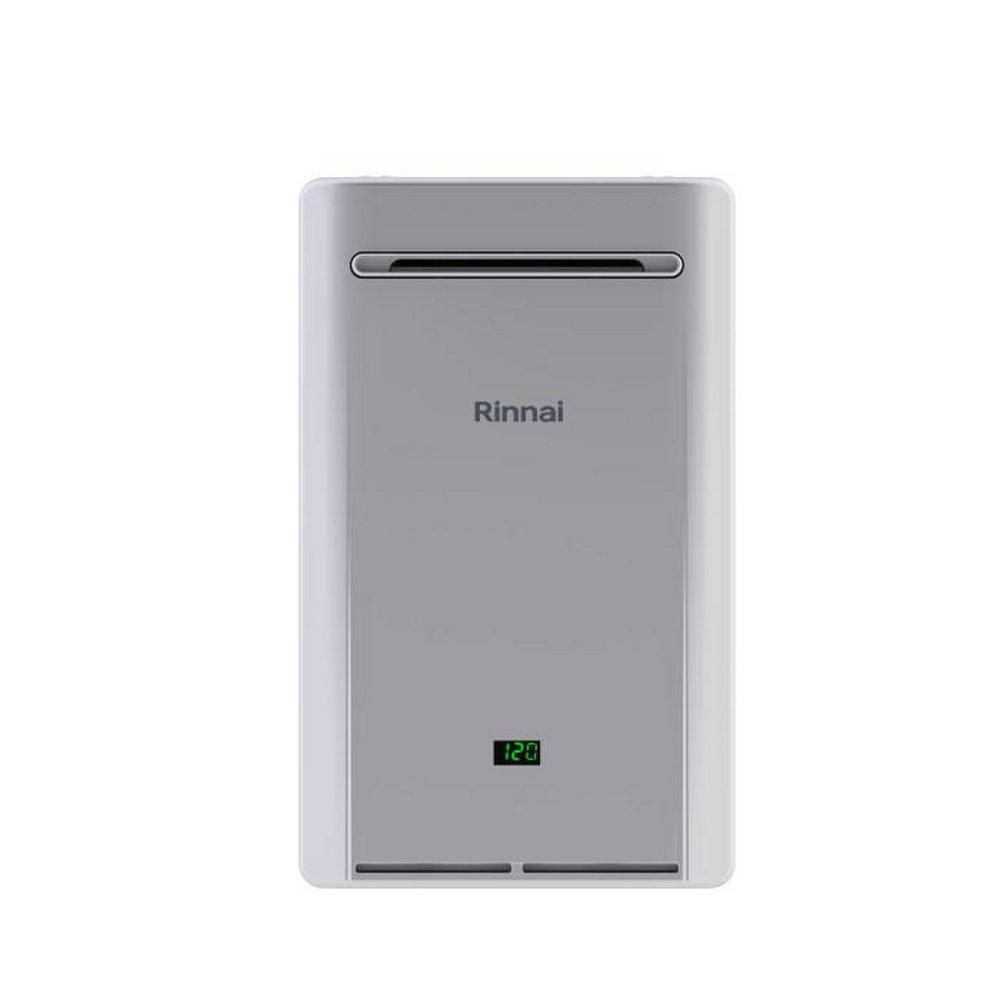

The Rinnai R-RE180eN is a high-efficiency tankless water heater designed for outdoor natural gas use, delivering 8.5-GPM with 180000-BTU. Ideal for small to medium homes, this unit provides hot water on demand, saving energy and reducing utility costs. Its compact design allows for installation in non-traditional spaces, and it is Wi-Fi ready with the addition of a control-r module.
- Provides a uniform energy factor of 0.82.
- Delivers hot water whenever and wherever needed, even for simultaneous use at multiple fixtures.
- Compact size allows for exterior installation in non-traditional spaces.
Product Highlights
This Rinnai tankless water heater offers high efficiency and reliable performance in a compact, space-saving design.
Product Information
Standard Information
-
Brand: RINNAI
-
Manufacturer Part Number: R-RE180eN
-
Country of Origin: USA
Technical Specifications
-
Category: Tankless Water Heater
-
Fuel Type: Natural Gas
-
Brand: Rinnai
-
Uniform Energy Factor (UEF): 0.82
-
BTU (minimum): 10,400
-
BTU (maximum): 180,000
-
Installation Type: Outdoor
-
Recirculation Capable: Yes
-
Wi-Fi Capable: Yes
-
Product Depth: 10.77 in / (274 mm)
-
Product Height: 24.64 in / (626 mm)
-
Product Width: 14.05 in / (357 mm)
-
Product Weight: 42.1 lb / (19.1 kg)
-
Model: R-RE180eN
-
SKU: 1229388
-
Capacity: 8.5 Gallons
-
Power Source: gas_powered
-
Maximum Flow Rate: 8.5 Gallons Per Minute
-
Maximum Temperature: 140 Degrees Fahrenheit
-
Efficiency: 0.82
-
Maximum Operating Pressure: 150 Pound per Square Inch
-
Mounting Type: Wall
-
Is Electric: No
-
Manufacturer: Rinnai
-
Item model number: REU-VE2432WD-US-N
-
Manufacturer Part Number: REU-VE2432WD-US-N
-
Special Features: LED Display
-
ANSI: ANSI Z21.10.3
-
Application: Commercial, Residential
-
BTU: 180000
-
CEC Compliant: For Sale in CA
-
CSA Certified: CSA 4.3
-
Collection: RE Series
-
Condensing: No
-
Flow Rate: 8.5 gpm
-
Indoor Outdoor: Outdoor
-
MBH: 180
-
Pressure - Low: 20
-
Pressure - Maximum: 150 psi
-
Smart Home Enabled: Yes
-
Temperature Range: 110 to 185 Deg F
-
Water Connection Size: 3/4 in
-
Wireless Communication: Wi-Fi
-
Gas Connection Size: 3/4 in.
-
Maximum Gallons Per Minute: 8.5 GPM
-
Maximum Working Temperature: 140 F
-
Minimum Activation Rate: 0.4 GPM
-
Minimum Gallons Per Minute: 0.13 GPM
-
Minimum Working Temperature: 98 F
-
Package Quantity: 1
-
Water Connection Location: Bottom
-
Water Heater Type: Gas Tankless
-
ADA Compliant: ADA Compliant
-
AHRI Certified: CSA Certified, ANSI Compliant, AHRI Certified
-
GSA Approved: GSA Approved
-
TAA/BAA Compliant: TAA/BAA Compliant
-
UL Listed: UL Listed
