Rinnai GTK15 Grundfos Pump with Timer Kit

Product Description

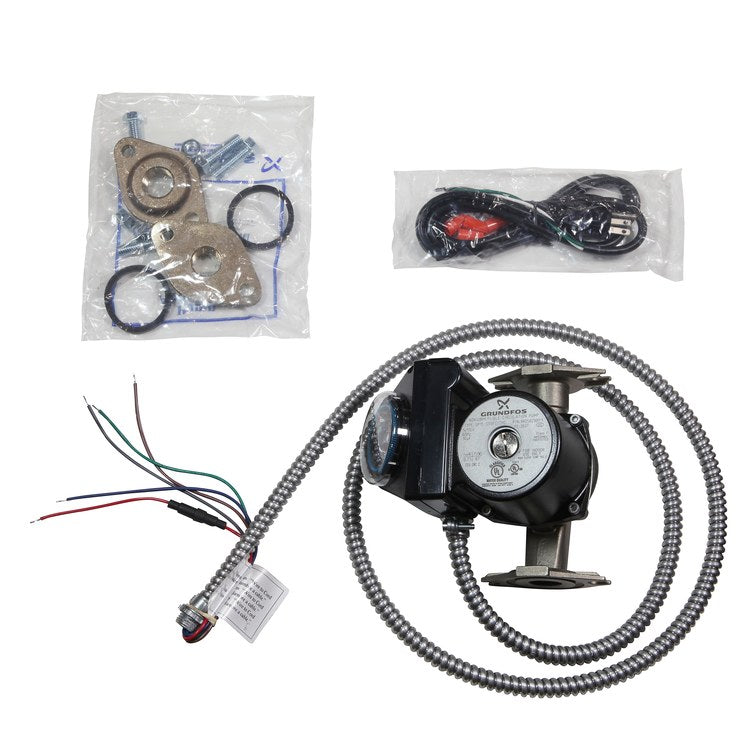

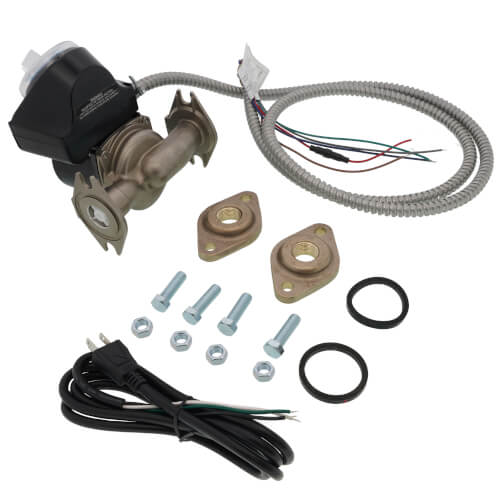

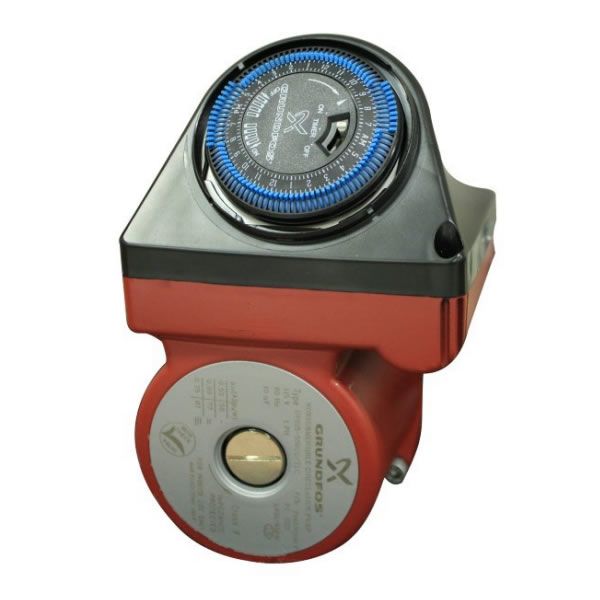

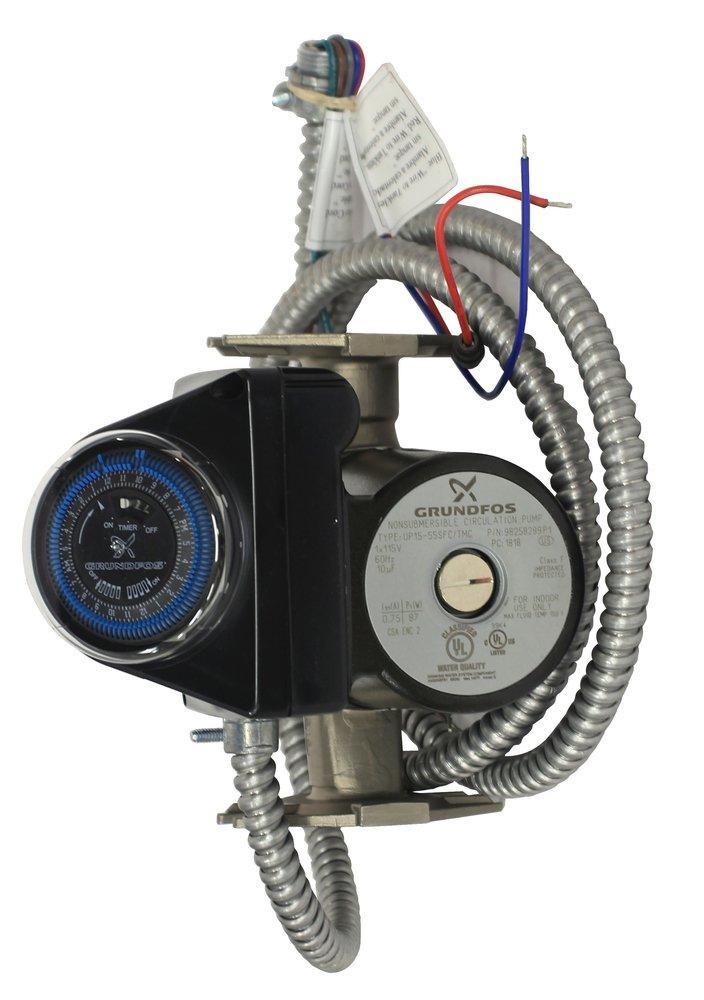

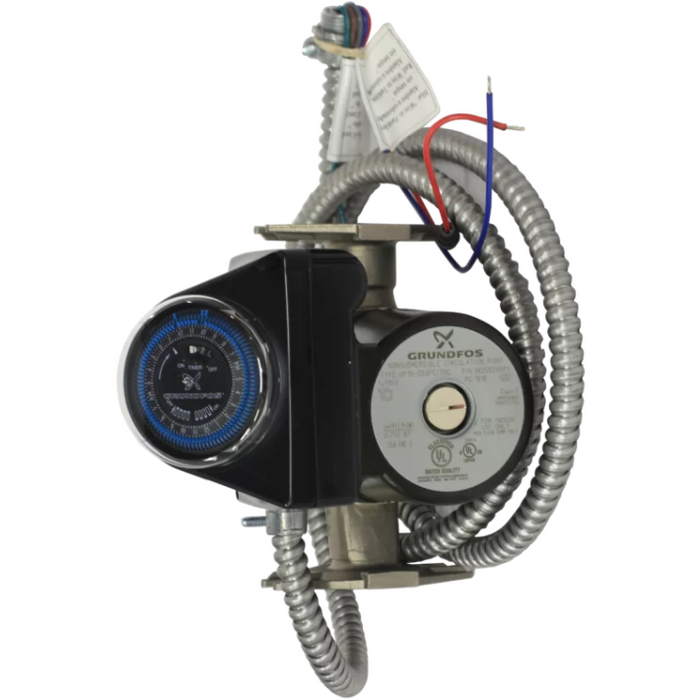

The Rinnai GTK15 Grundfos Pump and Timer Kit improves the performance of Rinnai Tankless Water heaters by ensuring hot water delivery during a preset schedule. Scheduling saves energy by reducing waste during dormant periods. The kit includes a Grundfos 15-55 pump with timer and internal check valve and flange kit.

• Ensures the delivery of a constant stream of hot water during a preset schedule.
• Scheduling for times of use saves money by reducing wasted energy during dormant periods.
• Includes Grundfos 15-55 Pump with Timer and Internal Check Valve

Product Highlights

This kit provides a constant stream of hot water and saves energy by reducing waste. Compatible with Rinnai Luxury and Ultra Series Tankless Water Heaters.

Product Information

Standard Information

• Brand: RINNAI
• Manufacturer Part Number: GTK15
• Country of Origin: Japan

Technical Specifications

• Product Category: Water Heater - Pumps and Controls
• Control Type: Timer
• Connection Type: Flange
• Item Model Number: GTK15
• Part Number: GTK15
• Item Package Quantity: 1.0
• Number of Pieces: 1
• Number of Handles: 1
• Batteries Included?: No
• Batteries Required?: No
• Included Components: 1
• Temperature Range: 98 Degree To 140 DegreeF
• Brand: Rinnai
• Mfr No: GTK15
• Housing Material: Stainless Steel with Check Valve
• Flow Range: 20 GPM
• Head Range: 17 ft
• Max Liquid Temperature: 150 F
• Max System Pressure: 145 PSI
• Input Voltage: 115V
• Frequency: 60 Hz
• Max Amperage: 0.75A
• Connection Size: 3/4" Flange
• Weight (Pump/Flange Kit Combined): 8.9 lbs
• Equivalent pipe length using Grundfos GTK15 pump at 120°F (49° C): Up to 200 Ft (61 m) (3/4” piping)
• Shortest Switching Interval: 15 minute increments
• Speeds: 1
• Water Heater Type: Tankless
• Valve Location: At Water Heater
• Power Required: Yes, At Tank
• Plumbing Type: Dedicated Return Line
• Width (in.): 8.75
• Depth (in.): 9.75
• Height (in.): 11
