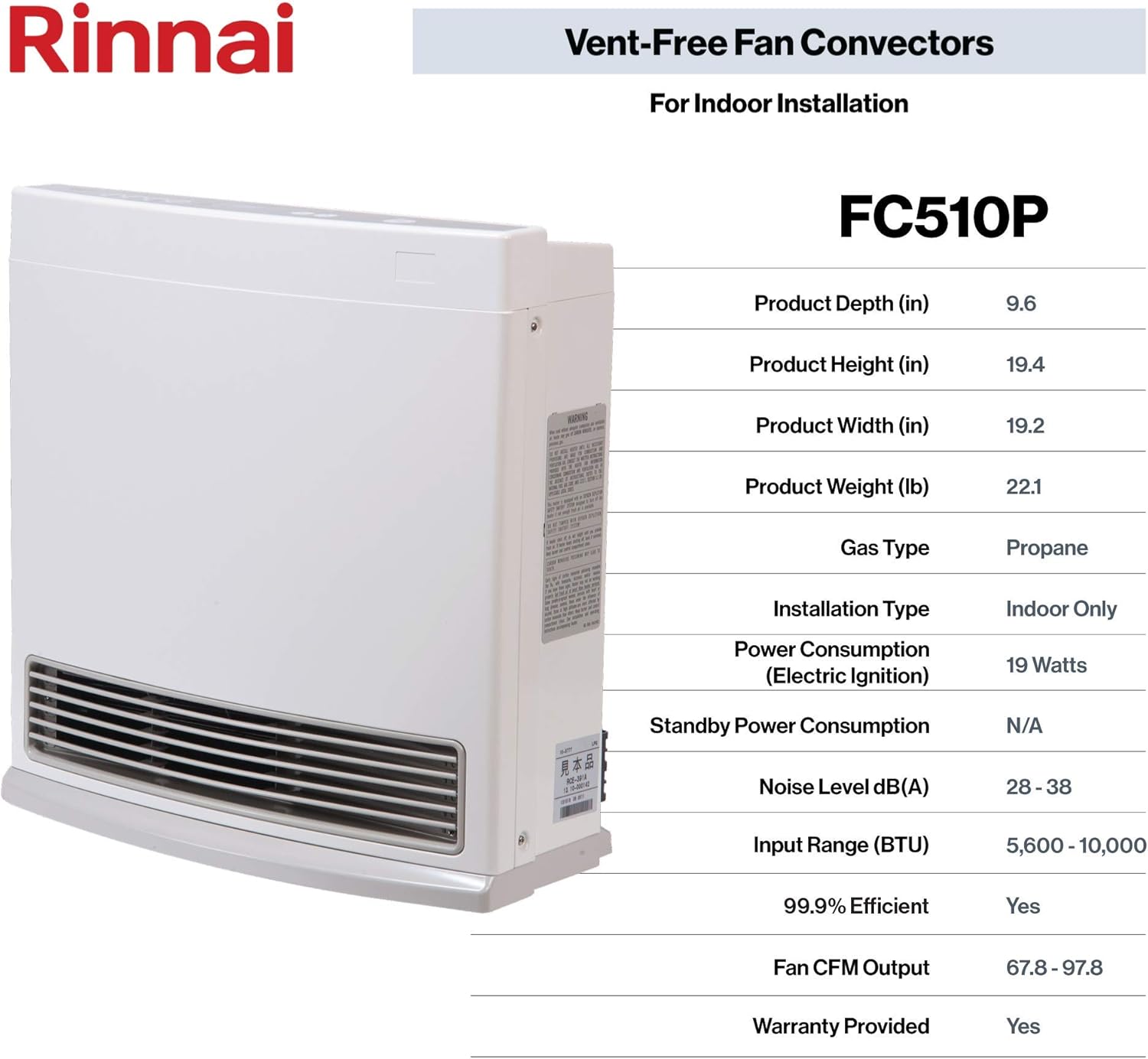

Rinnai FC510P Space Heater with Fan Convector, Propane Gas

Product Description

The Rinnai FC510P space heater with fan convector operates on propane gas. This vent-free fan convector is suited for homes, apartments, and condominiums, in residential or commercial settings. It is also approved for modular/mobile homes. The heater features forced combustion and forced convection.

• Manual operation
• Ceramic Burner Combustion System
• 99.9% Efficient

Product Highlights

The Rinnai FC510P provides supplemental heat with a ceramic burner, is 99.9% efficient, and has a cool-to-the-touch cabinet.

Product Information

Standard Information

• Brand: RINNAI
• Manufacturer Part Number: FC510P
• Country of Origin: Japan

Technical Specifications

• Color: white
• Room Type: Bedroom, Home Office, Study Room
• Mounting Type: Floor Mount
• Special Feature: Manual
• Indoor/Outdoor Usage: Indoor
• Product Dimensions: 3"D x 23"W x 20"H
• Approval: CSA (US), ANSI Z21.11.2
• Heating Capacity: 10000 BTU/Hour
• Power Rating: 19 Watt
• Type: Propane Gas, Indoor, Vent-Free, Cool-To-The-Touch
• Voltage Rating: 120 Volt AC 60 Hertz
• Manufacturer Part Number Additional: RCE-391A-H-P
• Series/Model: FC510
• Voltage Rating REF: 120 VAC
• Product Type: Fan Convector
• Fuel: Propane
• BTU Input: 10K BTU
• Venting: Vent-Free
• Efficiency: 99.9%
• Voltage: 110-120V
• Frequency: 60HZ
• Finish: White
• Ignition Type: Electronic Pushbutton
• Inlet Connection: 1/2IN NPT
• Safety Features: Overheat Switch/Flame Failure Device/Oxygen Depletion Sensor/Tilt Switch/Child Safety Lock
• BtuH: 10,000
• Gas Type: Propane
• Mounting: Wall
• Standards: CSA, Energy Star, Mobile Home Certified
• Vent Type: Vent Free
• Gas Connection: 1/2" FNPT
• Residential / Commercial: Residential / Commercial
• Country of Origin (subject to change): Japan
• Power Consumption: 19 W
• Thermostat: Electronic
• Safety Feature: Cool-To-The-Touch
• Ventilation: Vent-Free
• Heater Type: Fan Convection
• Model / MPN: FC510P
• Number of Items: 1.0
• Wattage [Features]: 25
• Depth (Inches) [Features]: 9-3/5"
• Connection Type [Features]: MNPT
• Height (Inches) [Features]: 19.4"
• Air Flow Capacity (CFM) [Features]: 97.8
• Product Depth: 9 29/48 Inches
• Product Height: 19 19/48 Inches
• Product Width: 19 5/24 Inches
• Product Weight: 22.1 Pounds
• Central Heating Capacity: 10,000 BTU / (2.9 kW)
• Form Factor: Compact Ventless Propane Heater
• Amperage: 0.16 Amps
• Part Number: FC510P
• Item model number: FC510P
• Style: FC510P Propane Gas
• Material: Steel
• Pattern: Heater
• Item Package Quantity: 1
• Number Of Pieces: 1
• Included Components: Heater
• Batteries Included?: No
• Batteries Required?: No
• Maximum Altitude: 5200 Feet
• Gas Conversion Kit: Not Available
• AFUE: 98 %
• Maximum Input Capacity: 10000 BTU
• Minimum Input Capacity: 5600 BTU
• Maximum Air Flow: 98 CFM
• Minimum Air Flow: 67 CFM
• Minimum Sound Level: 28 dB
• Maximum Sound Level: 38 dB
• Phase: 1
• Gas Connection Size: 1/2 Inch
• CSA Listed: Yes
• Parts Warranty: 3 Years
• Installation Type: Floor or Wall Mount
• Installation Kit: Wall and Floor Stand Kits Included
• Type of Venting: Vent Free
• Tilt Switch: Yes
• Heating BTUs: 10000
• CFMs: 67.8 / 97.8 (L / H)
• Blower: Convection Fan
• Flame Type: Burner
• Manifold Pressure (in.): 1.8" w.c. (NG) / 3.2" w.c. (LP)
• Inlet Gas Pressure (Min.): 3.5" w.c. (NG) / 8.0" w.c. (LP)
• Inlet Gas Pressure (Max.): 10.5" w.c. (NG) / 13.0" w.c. (LP)
• Top to Ceiling (in.): 2
• Bottom to Floor (in.): 0
• To Side Wall (in.): 2
• Width (in.): 19.2
• Depth (in.): 9.6
• Height (in.): 19.4
• Net Weight (lbs.): 22.1
• Certifications: CSA
• Model: FC510P
• BTU Range: ~5,500 – 10,000 BTU/h
• Dimensions: approx. 19.3" H × 22.7" W × 9.4" D
• Fan: Variable-speed for steady heat distribution
• Safety: ODS sensor, overheat protection, cool-touch cabinet
• Installation: Vent-free, floor-mount against interior wall
• Warranty: Manufacturer Limited Warranty
• Input Range (Low/High) Natural Gas: 5,500 / 10,000 BTU
• Input Range (Low/High) Propane: 5,600 / 10,000 BTU
• Fan Output (Low/High): 67.8 / 97.8 CFM (1.9 / 2.8 CMM)
• Shipping Depth (inches/mm): 23 in / (584 mm)
• Shipping Height (inches/mm): 23 in / (584 mm)
• Shipping Width (inches/mm): 22 in / (559 mm)
• Shipping Weight (lbs/kg): 26.5 lb / (12 kg)
• Heating Coverage: 285.7 square feet
