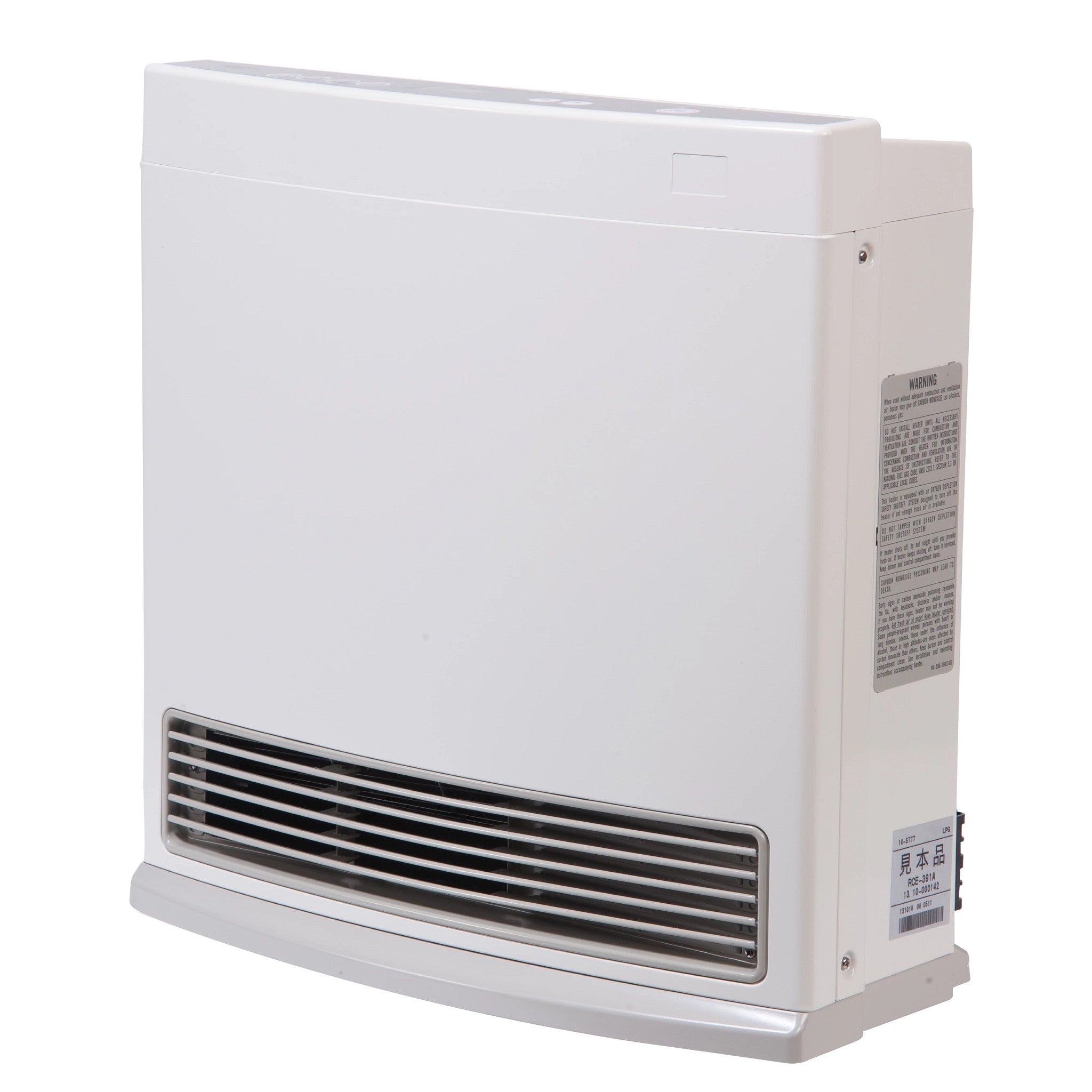

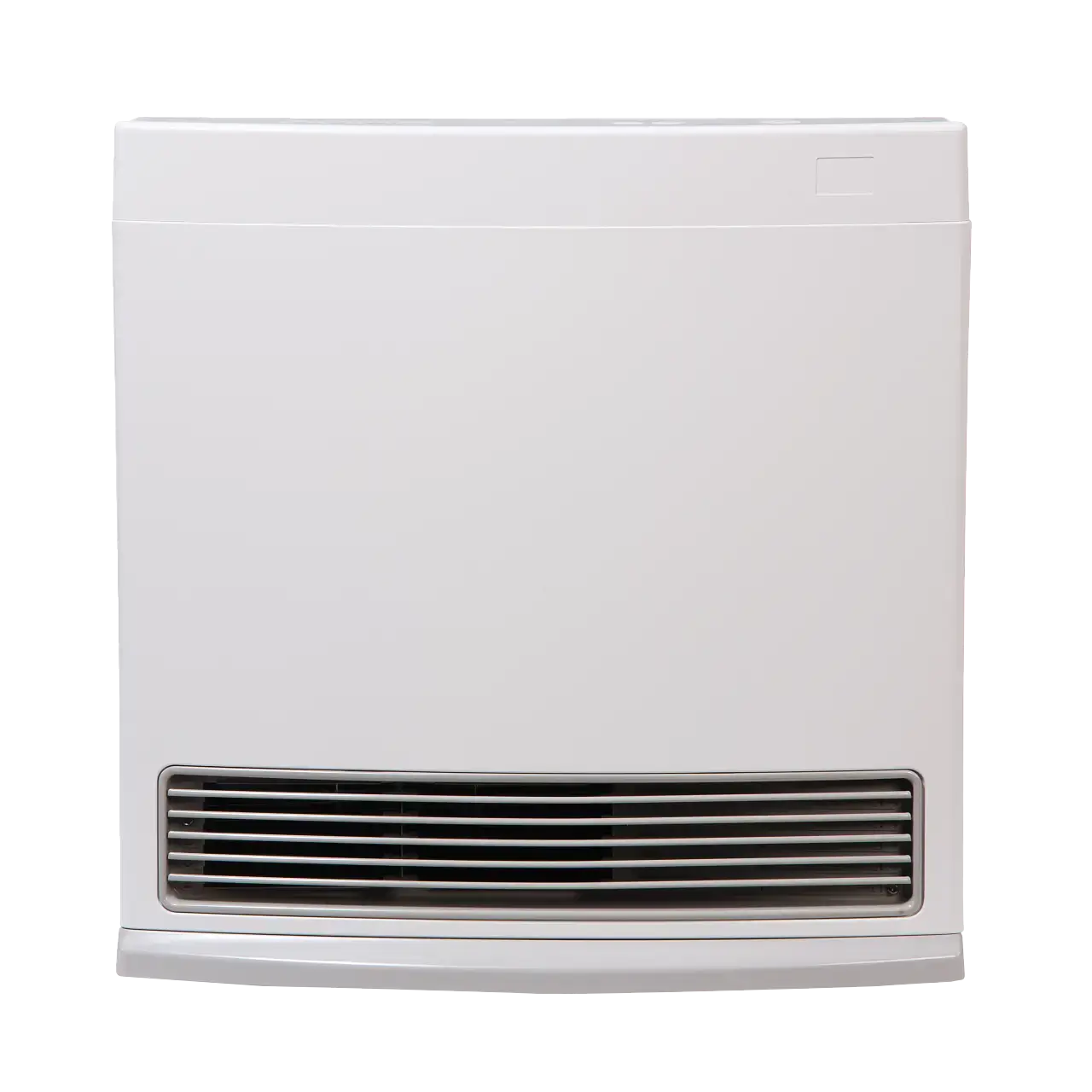

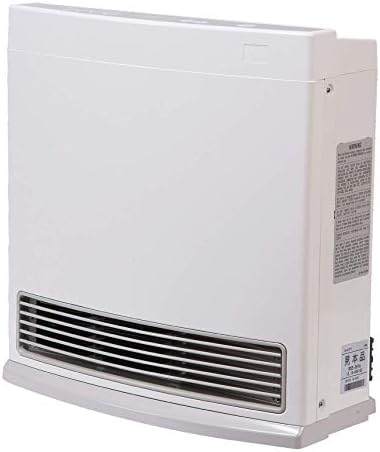

Rinnai FC510 vent free fan convector 10000 BTU

Product Description

The RINNAI FC510 is a vent-free fan convector gas heater suitable for hard-to-heat rooms. It distributes 10,000 BTUs of warmth with a convection fan. Features include modulating technology with a modulating gas valve and variable speed blower, using only the necessary amount of gas. It requires only a gas line and minimum clearances for installation.

• Convection fan for even heat distribution
• Modulating technology with modulating gas valve and variable speed blower
• Vent-free design
• Monitors temperature and regulates automatically

Product Highlights

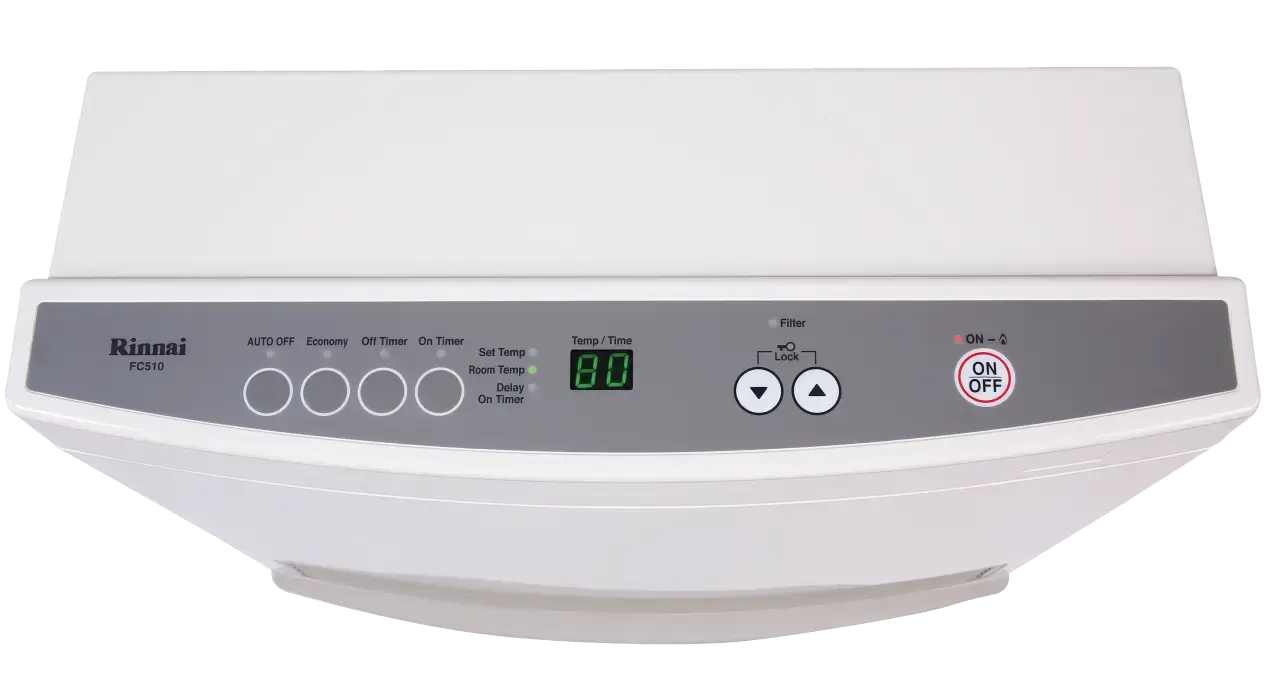

Provides approximately 99.9% efficiency with clean appearance and quiet operation. The control panel features push-button electronic ignition and touch button controls.

Product Information

Standard Information

• Brand: RINNAI
• Manufacturer Part Number: FC510

Technical Specifications

• Product Depth: 9.6 in
• Product Height: 19.4 in
• Product Width: 19.2 in
• Gas Type: Natural Gas
• Central Heating Capacity: 10,000 BTU
• Installation Type: Floor or Wall Mount
• Fuel Type: Choice NG / LP
• Installation Kit: Wall and Floor Stand Kits Included
• Type of Venting: Vent Free
• Tilt Switch: Yes
• Heating BTUs: 10000
• CFMs: 67.8 / 97.8 (L / H)
• Blower: Convection Fan
• Flame Type: Burner
• Ignition Type: Electronic Ignition
• Control Type: Thermostatic
• Gas Connection Size: 1/2"
• Manifold Pressure (in.): 1.8" w.c. (NG) / 3.2" w.c. (LP)
• Inlet Gas Pressure (Min.): 3.5" w.c. (NG) / 8.0" w.c. (LP)
• Inlet Gas Pressure (Max.): 10.5" w.c. (NG) / 13.0" w.c. (LP)
• Top to Ceiling (in.): 2
• Bottom to Floor (in.): 0
• To Side Wall (in.): 2
• Net Weight (lbs.): 22.1
• Certifications: CSA
• Voltage: 110-120V
• Heating Coverage: 285.7 square feet
• Heating Method: Forced Air
• Heating Element: Radiant
• Heat Output: 10000 British Thermal Units
• Amperage: 0.16 Amps
