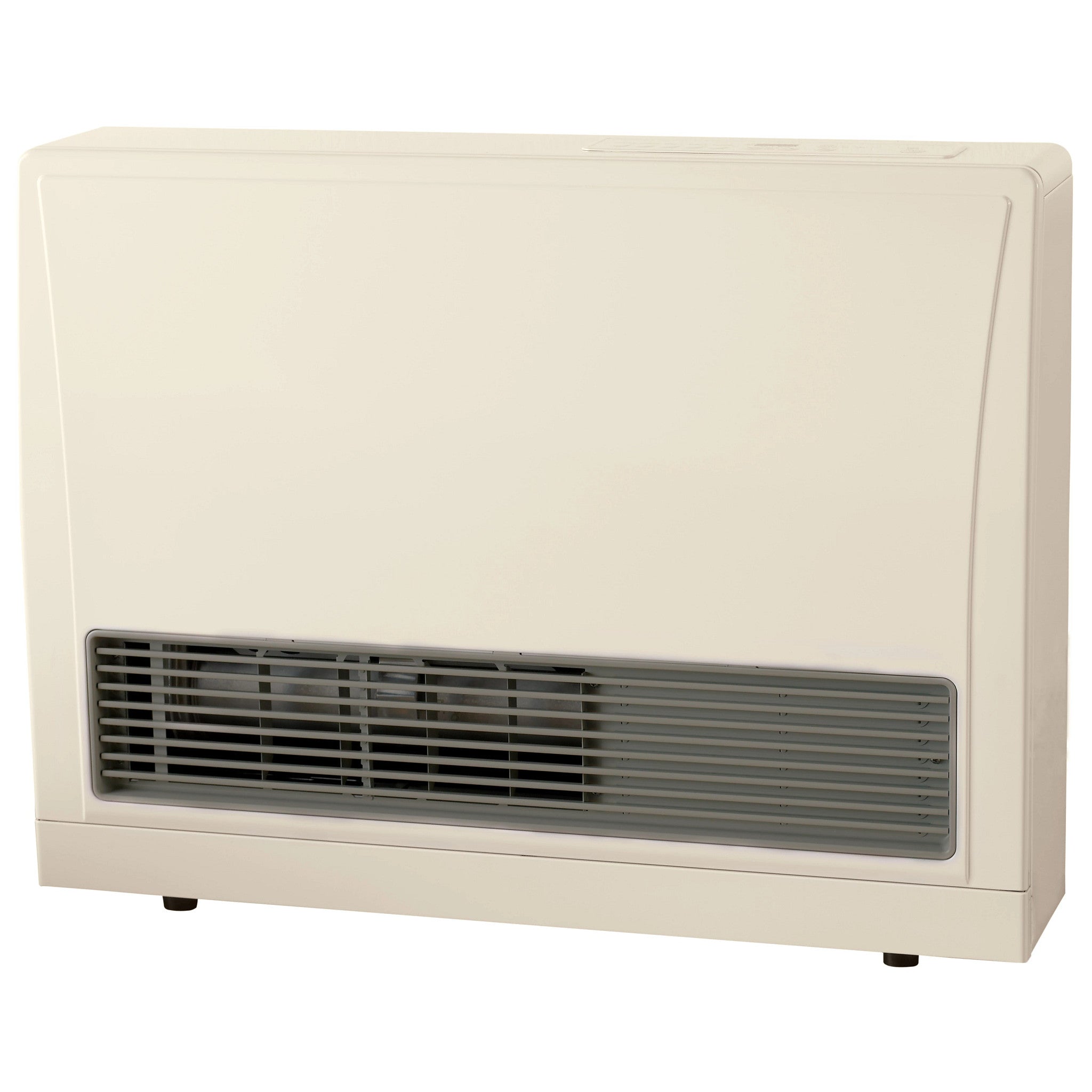

Rinnai EX17DT EX17DTN direct vent wall heater 16,700 BTU

Product Description

The RINNAI EX17DT EX17DTN is a quick and flexible installed ductless, natural gas, direct vent wall heater. It provides a supplemental or specific zone heating solution, targeting cold spots and quickly heating the room for maximum comfort. Features include a built-in programmable thermostat and WiFi enabled thermostat connection.

• Quick, flexible installation
• Built-in, programmable thermostat
• WiFi enabled thermostat compatibility

Product Highlights

This direct vent wall furnace provides supplemental heat and can be installed almost anywhere along an outside wall. It features modulating technology to optimize efficiency.

Product Information

Standard Information

• Brand: RINNAI
• Manufacturer Part Number: EX17DT

Technical Specifications

• Product Depth: 10.1 in / (257 mm)
• Product Height: 22.9 in / (589 mm)
• Product Width: 29.9 in / (760 mm)
• Gas Type: Natural Gas
• Installation Type: Surface Mounted
• Central Heating Capacity: 16,700 BTU / (4.9 kW)
• Fuel Type: Choice NG / LP
• Installation Kit: Vent Kit Included
• Heating BTUs: 16700
• Heating BTUs (Output): 13360
• Type of Venting: Direct Vent
• Vent Connection Size (in.): 3 1/8"
• Blower: Included
• Ignition Type: Electronic
• Control Type: Thermostatic
• Gas Connection Size: 1/2"
• Manifold Pressure (in.): 1.6" w.c. (NG) / 2.7" w.c. (LP)
• Inlet Gas Pressure (Min.): 3.5" w.c. (NG) / 8.0" w.c. (LP)
• Inlet Gas Pressure (Max.): 10.5" w.c. (NG) / 13.0" w.c. (LP)
• Top to Ceiling (in.): 0"
• Bottom to Floor (in.): 0"
• To Side Wall (in.): 2"
• Vent Type: Direct Vent
• Size: 17,000 BTU
