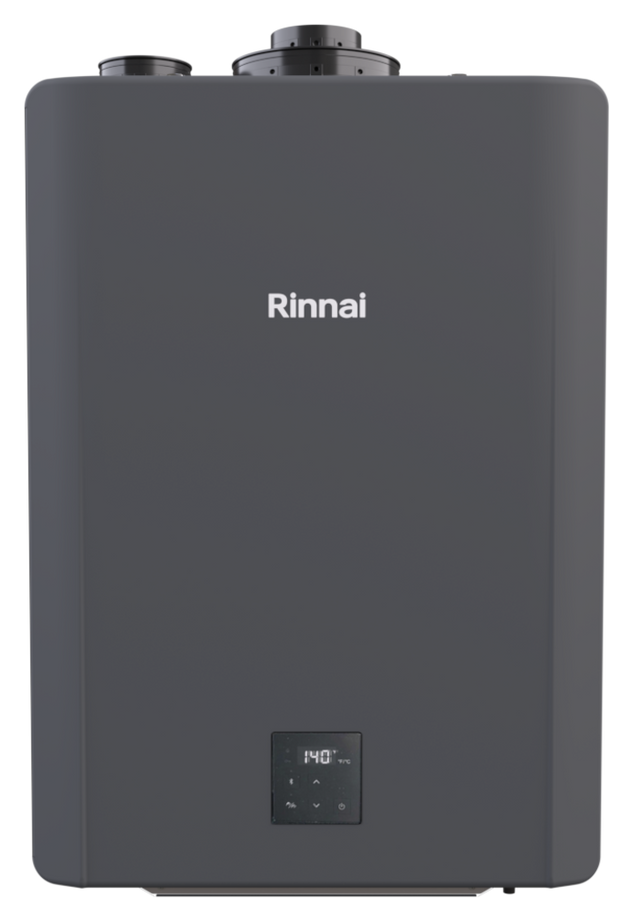

Rinnai CXP160iN Sensei CXP Series Tankless Water Heater 160000 BTU 9 GPM

Product Description

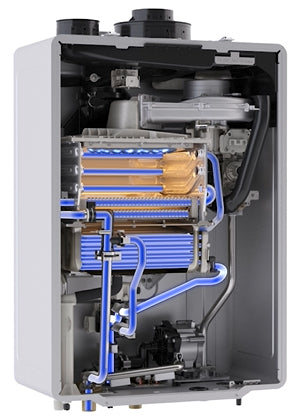

The RINNAI CXP160iN is a high-efficiency plus natural gas interior tankless water heater. This Sensei CXP series model delivers 9 GPM and features a corrosion-resistant stainless steel heat exchanger. It provides continuous hot water and saves energy by only heating water when needed. It also features flexible venting options.

• Internal Multi-Speed Recirculation Pump
• Cascade And Rack System Capability
• Continuous Water for Multiple Applications

Product Highlights

This tankless water heater is energy efficient and mobile home certified. It features adaptive gas valve technology and easy maintenance.

Product Information

Standard Information

• Brand: RINNAI
• Manufacturer Part Number: CXP160IN

Technical Specifications

• Type: Tankless Water Heater
• Product Line: Sensei
• Product Sub-line: Super High Efficiency
• Product Category: Water Heater - Tankless
• Medium: Hot Water
• Fuel Type: Natural Gas (NG)
• Combustion Type: Condensing
• Vent Type: Direct Vent
• Venting Category: IV
• Storage Type: Tankless
• Application: Commercial
• Mount Type: Wall
• Installation Location: Indoor
• Maximum Altitude: 10200 Feet
• Includes Pump: Yes
• Gas Conversion Kit: Not Required
• Maximum Input Capacity: 160000 BTU
• Minimum Input Capacity: 15000 BTU
• Flow Rate at 40F Temperature Rise: 7.8 GPM
• Flow Rate at 45F Temperature Rise: 7.0 GPM
• Flow Rate at 50F Temperature Rise: 6.2 GPM
• Flow Rate at 60F Temperature Rise: 5.2 GPM
• Flow Rate at 70F Temperature Rise: 4.4 GPM
• Uniform Energy Factor: 0.97
• Minimum Flow Rate: 0.5 GPM
• Ultra Low NOx Emissions: Yes
• Phase: 1
• Frequency: 60 Hz
• Primary Vent Pipe Diameter: 2 Inches
• Gas Connection Size: 3/4 Inch
• Cold Water Inlet: 3/4 Inch
• Hot Water Outlet: 3/4 Inch
• Product Height: 30.10 Inches
• Product Width: 18.5 Inches
• Product Depth: 11.40 Inches
• Shipping Weight: 67 Pounds
• Energy Star Listed: Yes
• CSA Listed: Yes
• AHRI Certified: Yes
• AHRI Reference Number: 214067923
• Parts Warranty: 5 Years
• Heat Exchanger Warranty: 8 Years
• Maximum Flow Rate (gallons per minute): 8.9
• Installation Type: Indoor or Outdoor
• Product Use: Commercial Only
• Energy Star: Yes
• Condensing: Yes
• Connectivity: Yes, Module Available (Optional)
• Mobile Home Certified: No
• Gallons Per Minute (GPM): 0.13 - 9.0
• Uniform Energy Factor (UEF): 0.97
• Temperature Setting Range: 98°F - 140°F
• Minimum Gas Consumption (BTUs): 15000
• Maximum Gas Consumption (BTUs): 160000
• Thermal Bypass Valve: No
• Isolation Valve: Included
• Venting: 2" PVC or 3" / 5" Concentric
• Water Connection Size (in.): 3/4" NPT
• Voltage: 110-120V
• Amps: 4
• Circuit Breaker Amps: 10
• Brand: Rinnai
• MPN: CXP160iN
• upc: 766156017339
• Condition: New
