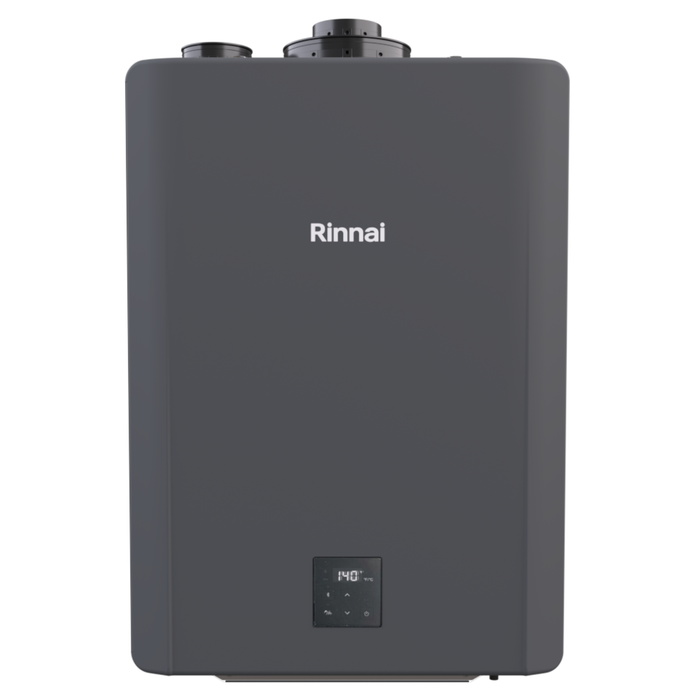

Rinnai CX160iN Sensei CX Series Tankless Water Heater 160000 BTU

Product Description

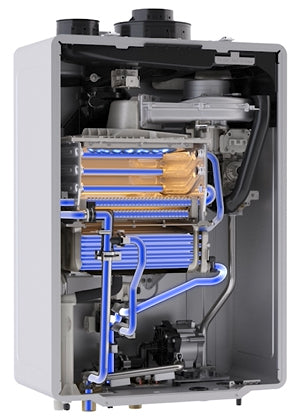

The RINNAI CX160iN Sensei CX Series tankless water heater is a super high-efficiency, Energy Star certified commercial unit. Designed for indoor or outdoor installation, it features a Smart Sense gas valve that adjusts to either natural gas or propane. It boasts 97% thermal efficiency and a heat exchanger built for commercial demands. It delivers hot water with a flow rate ranging from 0.13 to 9.0 GPM.

• Smart Sense gas valve adjusts to either natural gas or propane
• Indoor or outdoor installation. Versa-Vent Cap needed for outdoor
• 97% Thermal Efficiency

Product Highlights

This commercial tankless water heater is designed for high efficiency and versatile installation, offering an endless supply of hot water for commercial applications.

Product Information

Standard Information

• Brand: RINNAI
• Manufacturer Part Number: CX160iN

Technical Specifications

• Maximum Flow Rate (gallons per minute): 8.9
• Installation Type: Indoor or Outdoor
• Product Use: Commercial Only
• Fuel Type: Natural Gas (NG)
• Energy Star: Yes
• Condensing: Yes
• Built-In Re-Circulation Pump: No
• Connectivity: Yes, Module Available (Optional)
• Mobile Home Certified: No
• Gallons Per Minute (GPM): 0.13 - 9.0
• Uniform Energy Factor (UEF): 0.97
• Temperature Setting Range: 98°F - 140°F (185°F override)
• Minimum Gas Consumption (BTUs): 15000
• Maximum Gas Consumption (BTUs): 160000
• Thermal Bypass Valve: No
• Isolation Valve: Included
• Venting: 2" PVC or 3" / 5" Concentric
• Water Connection Size (in.): 3/4" NPT
• Overall Depth (in.): 11.4
• Overall Height (in.): 30.11
• Overall Width (in.): 18.5
• Voltage: 110-120V
• Amps: 4
• Circuit Breaker Amps: 10
• Power Source: Natural Gas
• Flow Rate: 9 Gallons Per Minute
• Maximum Temperature: 185 Degrees Fahrenheit
• Efficiency: High
• Mount Type: Wall
• Is Electric: No
• Smart Home Compatibility: Smart Home Compatible
• Maximum Pressure: 150 Pound per Square Inch
• Style: Silver
• Style Name: CX160iN
• Maximum Gallons per Minute (NA): 9
• ENERGY STAR Certified: Yes
• Manufacturer Trade Model Number - U.S.: CX160iN
• Gas Type: Natural Gas
• Recirculation Capable: Yes
• Residential ENERGY STAR®: Yes
• Domestic Hot Water Flow Rate (Maximum): 9.0 GPM / (34 L/min)
• Wi-Fi Capable: Yes
• SCAQMD Approved: Ultra Low NOx
