Rinnai CHS398100HCXVIN Tank Hybrid

Product Description

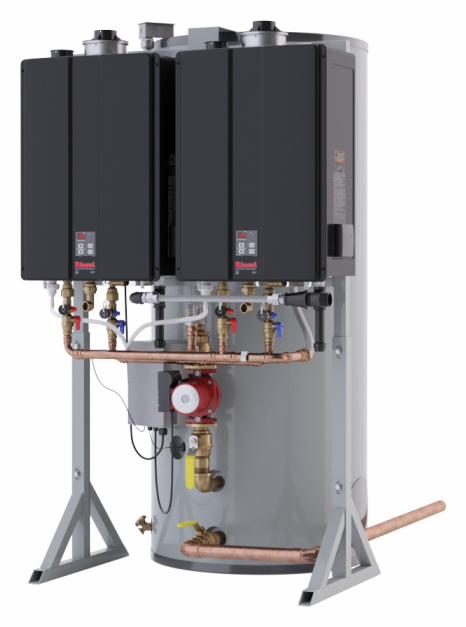

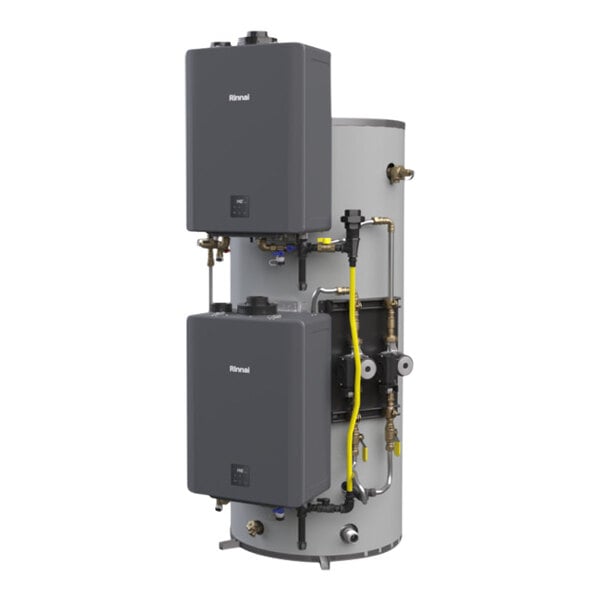

The RINNAI CHS398100HCXVIN tank hybrid water heating system delivers reliable hot water with high performance and efficiency. Rinnai’s hybrid technology ensures a longer service life and saves commercial space. It combines the rapid response of a tankless system with the stored hot water of a traditional tank.

• Up to twice the lifespan of most tanks
• Never run out of hot water
• Compact size to fit every space

Product Highlights

This hybrid water heating system is designed for commercial applications, providing a dependable, high-performance water heating solution.

Product Information

Standard Information

• Brand: RINNAI
• Manufacturer Part Number: CHS398100HCXVIN

Technical Specifications

• Gas Type: Natural Gas
• Installation Type: Indoor
• Recirculation Capable: Yes
• Uniform Energy Factor (UEF): 0.98
• Wi-Fi Capable: Yes
• SCAQMD Approved: Ultra Low NOx
• Tank Capacity: 119 Gallons
• Flow Rate: 9.18 GPM
• Gas Connection Size: 3/4 Inches
• Water Inlet Size: 1 1/2 Inches
• Maximum Pressure: 150 PSI
• Temperature Range: 98 - 185 Degrees F
• Voltage: 120 Volts
• Phase: 1 Phase
• Hertz: 60 Hz
• Amps: 5.5 Amps
• Wattage: 116.6 Kilowatts
• Power Type: Liquid Propane, Natural Gas
• Style: With Tank
• Application: Multiple Points of Use
• Ignition Type: Direct Electronic Ignition
• Venting Type: Concentric, Twin Pipe, Room Air, Common Vent
• Condensate Connection: 1/2" NPT
• Energy Star: No
• Horse Power (HP): 1/3
• BTU's: 398000
• Capacity: 450 L
• Features-Water Heaters: Condensing
• Fuel Type: Natural Gas
• High Altitude?: true
• Tank Diameter: 28-5/16"
