Rinnai CHS19980HCXIN Demand Duo Hybr 199,000Btu 80G

Product Description

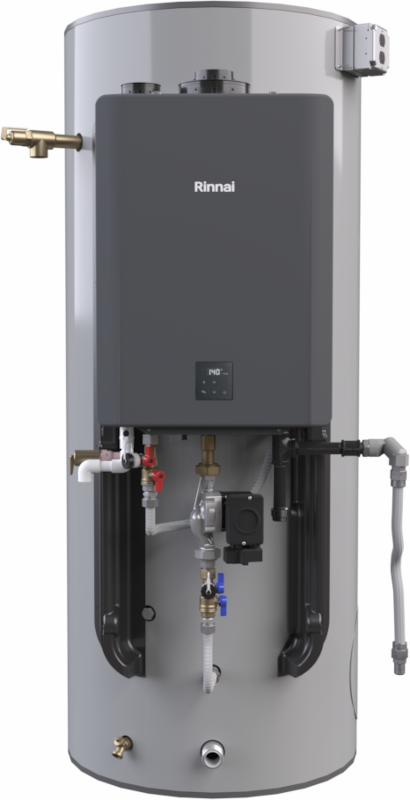

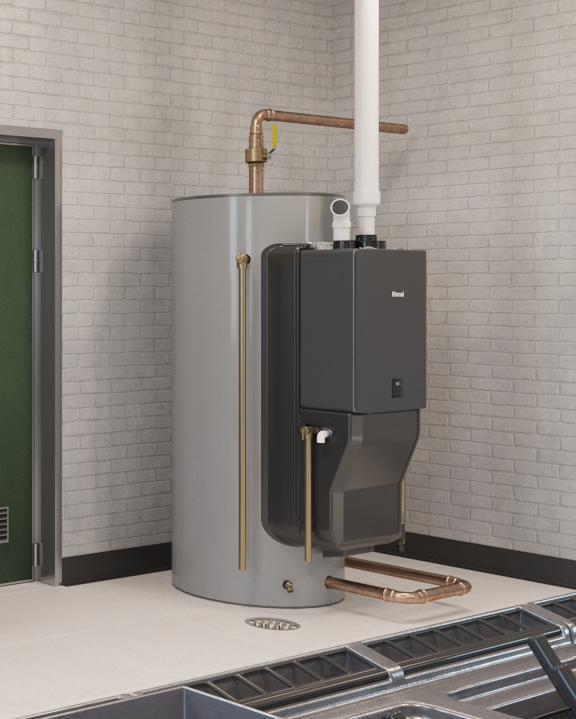

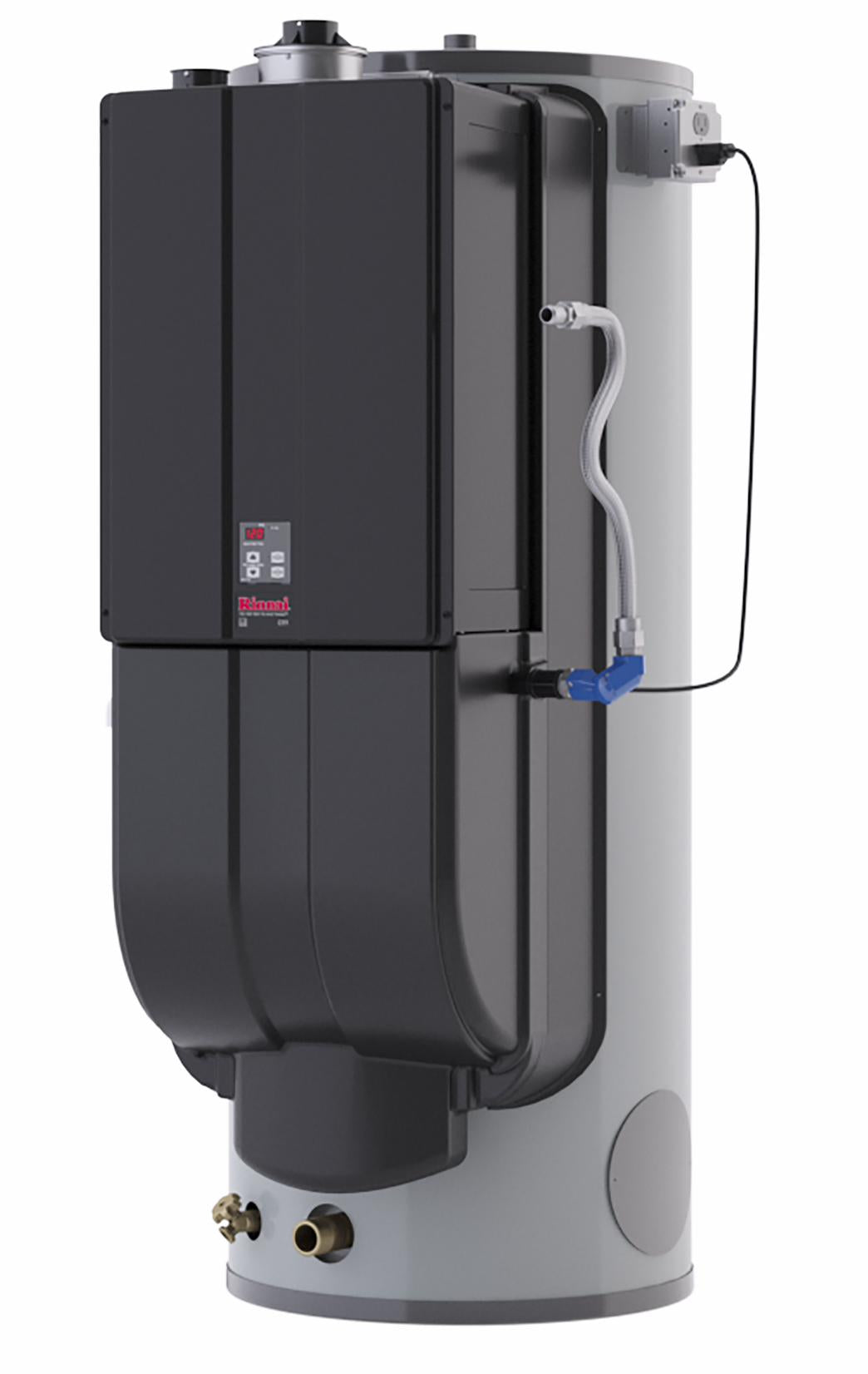

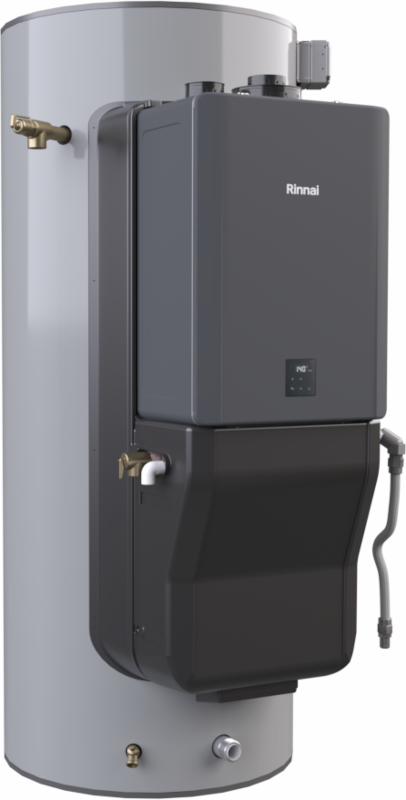

The Rinnai CHS19980HCXIN Demand Duo H-Series is a hybrid water heating system designed for high-performance and efficiency. This unit reduces the cost of ownership and ensures a longer service life than traditional high-efficiency tanks. It provides abundant hot water for peak commercial hours, combining an 80-gallon tank with a powerful tankless water heater for commercial applications.

• Offers up to twice the lifespan compared to most traditional tanks.
• Provides abundant hot water for peak commercial demands.
• Hybrid design integrates an 80-gallon tank with a 199,000 BTU tankless unit.

Product Highlights

This hybrid water heating system offers high thermal efficiency and recirculation capability, ensuring continuous hot water for commercial applications.

Product Information

Standard Information

• Brand: RINNAI
• Manufacturer Part Number: CHS19980HCXIN

Technical Specifications

• Uniform Energy Factor (UEF): 0.97
• Minimum BTU: 15,000
• Maximum BTU: 199,000
• Installation Type: Indoor
• Recirculation Capable: Yes
• Wi-Fi Capable: Yes
• SCAQMD Approved: Ultra Low NOx
• Water Heater Features: Condensing
• High Altitude Approved: Yes
• Tank Diameter: 24-1/4 inches
• Venting Style: Concentric Vent, Direct Vent, Non-Direct Vent
• Control Wattage: 265
• Thermal Efficiency: 97%
• Amperage: 5.5 Amps
• Frequency: 60 Hz
• Phase: 1 Phase
• Voltage: 120 Volts
• Application: Multiple Points of Use
• Flow Rate: 4.83 GPM
• Gas Connection Size: 3/4 inches
• Max Water Supply Pressure: 150 PSI
• Style: With Tank
• Tank Capacity: 80 Gallons
• Temperature Range: 98 - 185 Degrees F
• Product Type: Water Heater
• Water Inlet Size: 1 1/2 inches
• Fuel Type: Natural Gas, Liquid Propane
