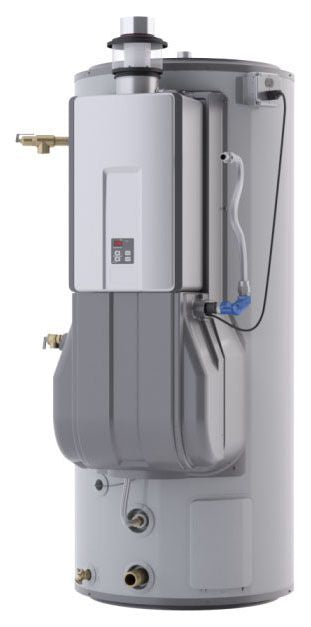

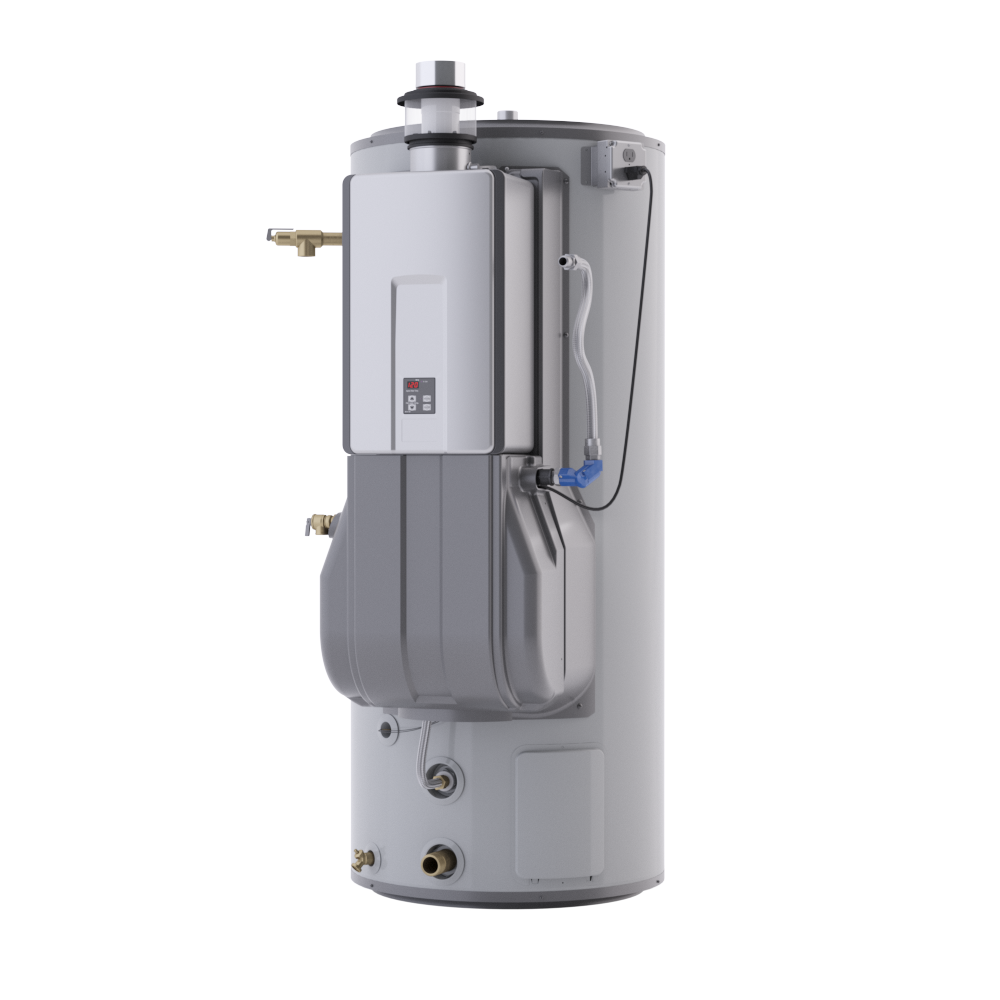

Rinnai CHS199100RiN Water Heater Rlr94In with 119 Gallon Tank Hybrid System

Product Description

The RINNAI CHS199100RiN Water Heater Rlr94In is a hybrid system with a 119-gallon tank. Designed as a smart, simple replacement for traditional tanks, it vents into existing 6" B Vent, saving on installation. The system delivers reliable performance and longer service life. It operates on 120V and natural gas, with a BTU rating of 21,500 - 199,000.

• Hybrid Design uses 119 gallon tank and 199,000 BTU tankless unit to provide First Hour Delivery up to 276 gallons 100°F Δ T
• Optimized performance delivers abundant hot water even during peak hours
• Vent into 6" B Vent exhaust connector

Product Highlights

The Rinnai hybrid water heating system offers optimized performance, easy installation, and a longer service life, reducing the total cost of ownership.

Product Information

Standard Information

• Brand: RINNAI
• Manufacturer Part Number: CHS199100RiN
• Country of Origin: United States

Technical Specifications

• Brand: Rinnai
• Type: Indoor
• MBTU/hr: 199000 BTUs
• Voltage: 120V
• Collection: Demand Duo
• Fuel Source: Natural Gas
• Model Number: CHS199100RiN
• Application Class: Commercial
• Manufacturer Name: RINNAI
• BTU Rating: 21,500 - 199,000
• Pressure Rating: 150
• Gas Type: Natural Gas
• Recirculation Capable: Yes
• Wi-Fi Capable: Yes
• MPN: RINCHS199100RIN
• Minimum Gas Consumption Btu/h (kW/h): 15,200 (4.5)
• Maximum Gas Consumption Btu/h (kW/h): 199,000 (58.3)
• Tank Volume: 119 Gallons (450 Liters)
• Thermal Efficiency (C199i): 96%
• First Hour Delivery: 315 Gallons (1192 Liters)
• Temperature Setting: 98° F (37° C) to 185° F (85° C)
• Noise level: 52 dB
• By-Pass Control: Electronic
• Gas Supply Pressure Natural Gas: 4.0 - 10.5 inch W.C
• Ignition System: Direct Electronic Ignition
• MFR Part No: CHS199100RIN
• Fuel Type: Natural Gas
• Tank Capacity: 119 gallon
• Capacity: 119 Gallons
• Warranty: 6 Years
• Thermal Efficiency: 80%
• Installation: Indoor Only
