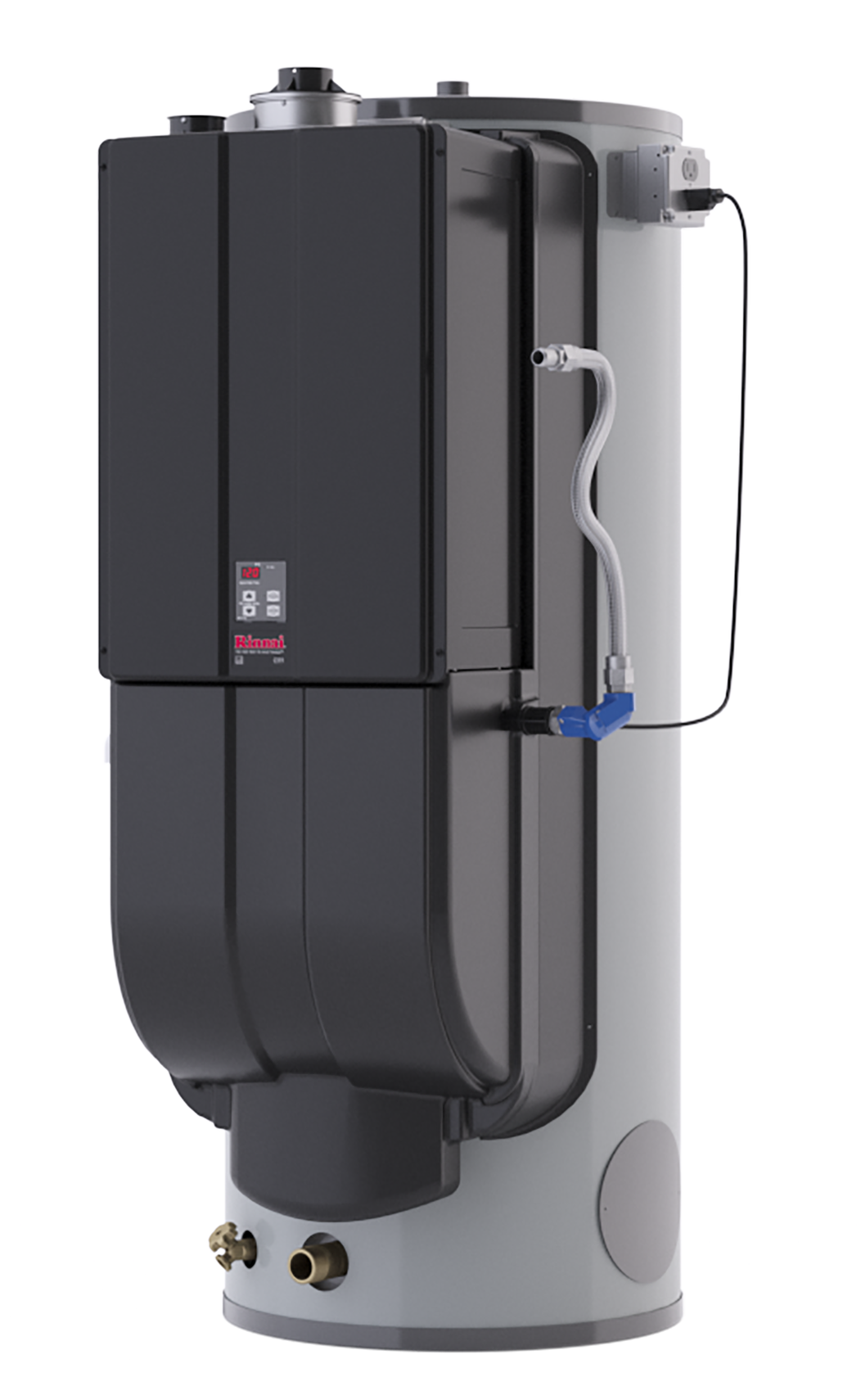

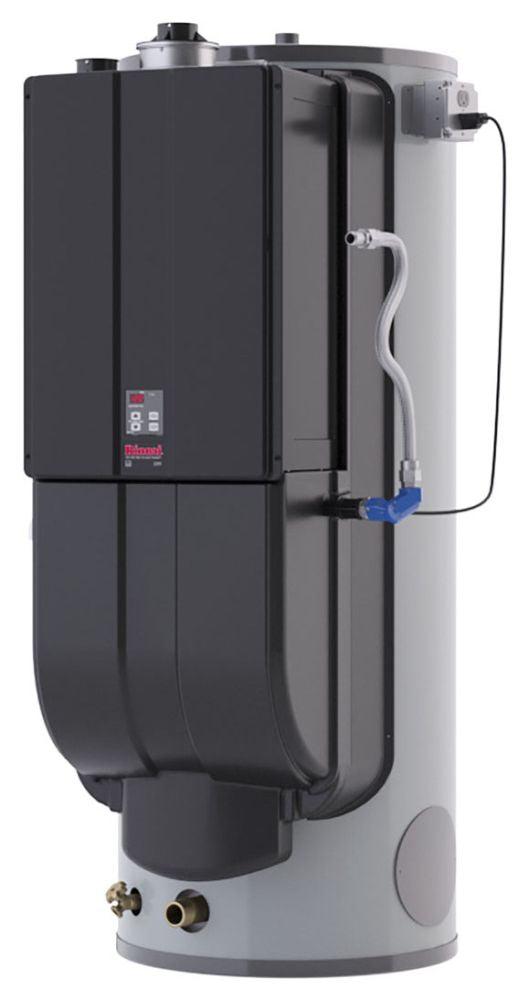

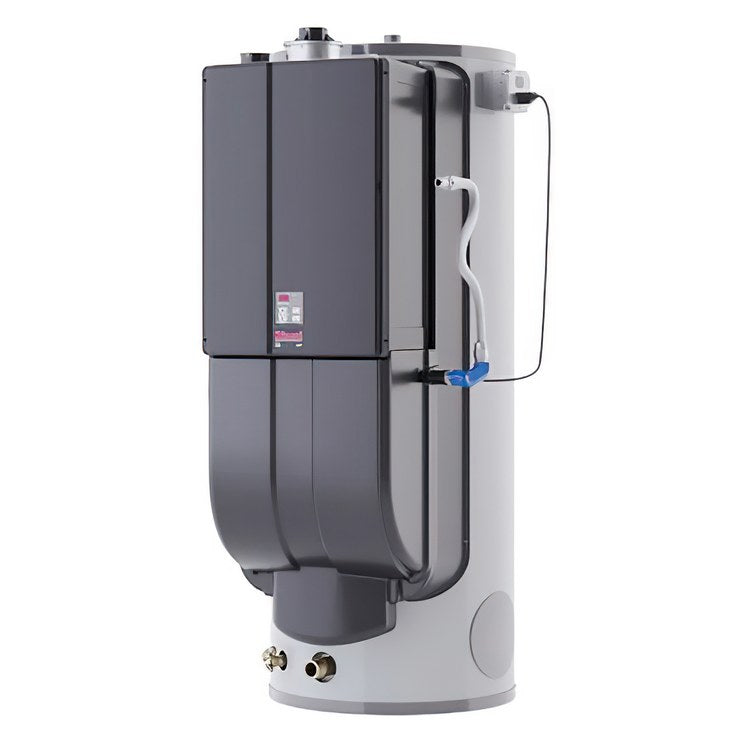

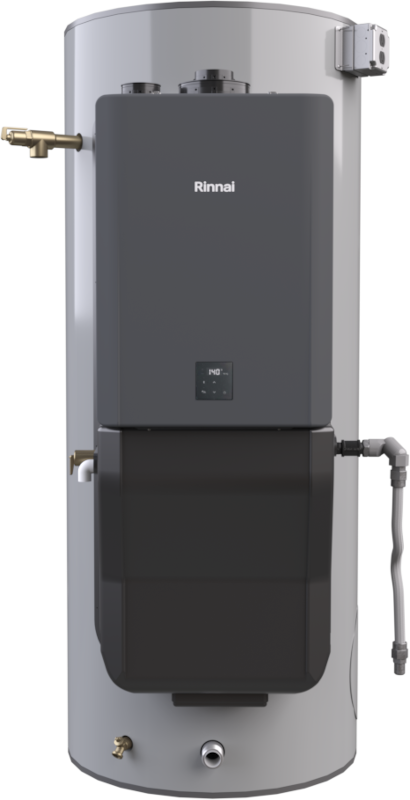

Rinnai CHS199100HiN Demand Duo H-Series Hybrid Water Heating System Indoor, Natural Gas, BTU, 119 Gallon

Product Description

The Rinnai CHS199100HiN Demand Duo H-Series is a hybrid water heating system designed for indoor use. It combines a 119-gallon tank with a 199,000 BTU tankless unit, offering a reliable hot water supply with high performance and efficiency. This system uses natural gas and features direct electronic ignition.

• Hybrid design provides a first-hour delivery of up to 317 gallons at 100°F Δ T.
• Features a 97% thermal efficient CU199, compliant with Ultra Low NOX standards and ENERGY STAR.
• Tank-tankless design reduces thermal stress on the tank, extending its service life and minimizing downtime.

Product Highlights

This hybrid water heating system offers a reliable and efficient solution for commercial hot water needs, reducing cost of ownership and ensuring a longer service life.

Product Information

Standard Information

• Brand: RINNAI
• Manufacturer Part Number: CHS199100HiN
• Country of Origin: United States

Technical Specifications

• Brand: Rinnai
• Fuel Type: Natural Gas
• BTU Rating: 15,000 - 199,000
• Voltage: AC 120 Volts
• Pressure Rating: 150
• Model: CHS199100HiN
• SKU: 1118580
• Max Heating Input (Btu/h): 199,000
• Tank Capacity/First Hour Delivery (Gallons): 119 / 315
• Thermal Efficiency (or UEF): 97% (N/A)
• Product Type: Tankless Heater
• BTU (Min): 15000
• BTU (Max): 199000
• Width (Inches): 30.8
• Depth (Inches): 69.3
• Height (Inches): 34.5
• Efficiency: 97%
• Gas Type: Natural Gas
• Recirculation Capable: Yes
• Wi-Fi Capable: Yes
• SCAQMD Approved: Ultra Low NOx
• Uniform Energy Factor (UEF): 0.98
• Installation Type: Indoor
• ANSI: ANSI Z21.10.3
• Application: Commercial
• BTU: 199000
• CEC Compliant: For Sale in CA
• CSA Certified: Yes
• Capacity: 119 gal
• Collection: Demand Duo™
• Depth: 69-3/10 in
• Emission: Ultra-Low NOx
• Energy Star Compliant: Yes
• Height: 34-1/2 in
• MBH: 199
• NSF Certified: No
• Power Source: Gas
• Pressure - High: 150
• Temperature Range: 98 to 185 Deg F
• UL Listed: No
• UPC: 766156014192
• Vent Type: Concentric
• Volts: 120V
• WIFI Enabled: Yes
• Water Heater Capacity Range: Greater than 100 gal
• Water Heater Type: Hybrid
• Tank Capacity: 119 gallon
