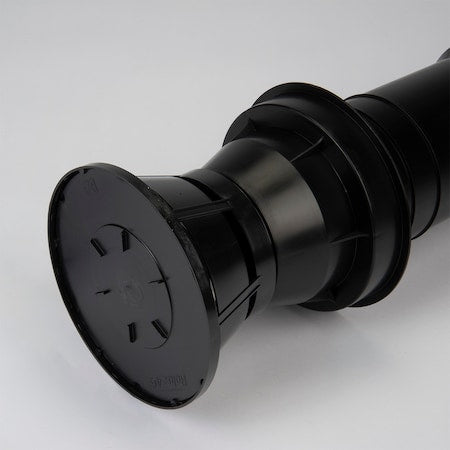

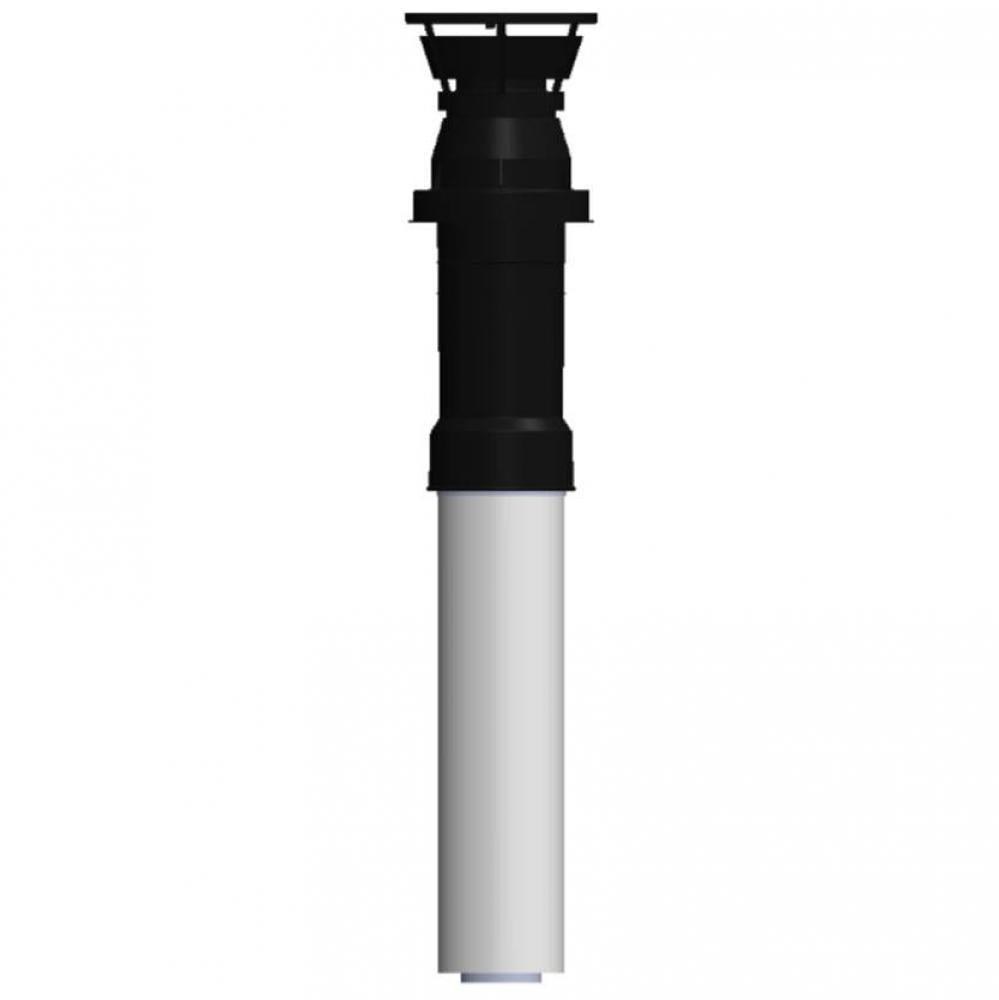

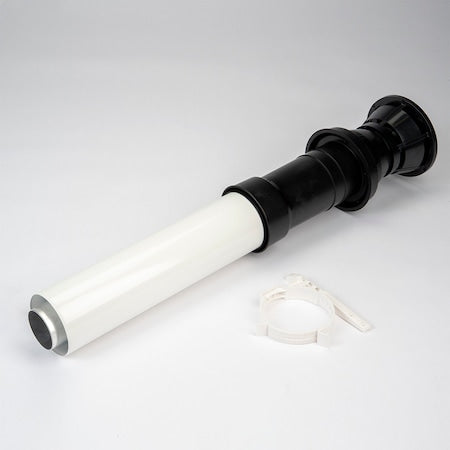

Rinnai 184127 Roof Discharge Termination 18 inches Above Roof

Product Description

Rinnai 184127 is an 18-inch roof discharge termination designed for non-condensing tankless water heater venting. The unit provides concentric venting with a metal outer intake and an aluminum inner exhaust, intended for vertical termination 18 inches above the roof. It requires a single roof penetration and is specified for use with compatible Rinnai HE and HE Plus non-condensing systems.

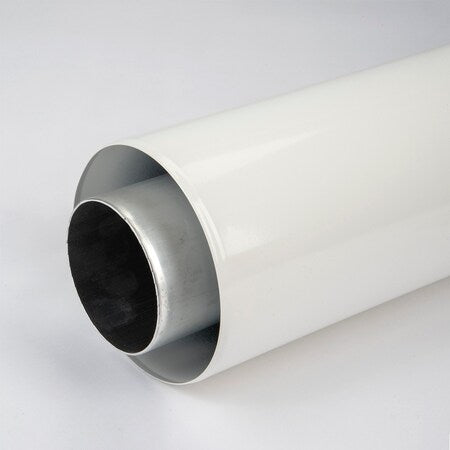

• Concentric 3 x 5 inch vent configuration with outer intake and inner exhaust
• Designed for vertical termination 18 inches above the roof; requires one roof penetration
• Outer metal construction with aluminum inner vent; GSA approved for specified installations

Product Highlights

Concentric 3x5 venting; 18 in above-roof termination; metal outer, aluminum inner

Product Information

Standard Information

• Brand: RINNAI
• Manufacturer Part Number: 184127
• Country of Origin: Netherlands

Technical Specifications

• Brand: Rinnai
• Manufacturer Part Number: 184127
• Product Type: Roof Discharge Termination
• Vent Type: Non-Condensing
• Vent Configuration: Concentric
• Vent Intake Diameter: 5 in.
• Vent Exhaust Diameter: 3 in.
• Mounting Location: Above roof (vertical termination)
• Height Above Roof: 18 in.
• Outer Material: Metal (outer vent for intake)
• Inner Material: Aluminum (inner vent for exhaust)
• Overall Dimensions: 38.5 x 8.7 x 8.1 inches
• Item Weight: 7.02 lb
• Compatible With: Rinnai non-condensing tankless water heaters (HE and HE Plus series)
• Approval: GSA approved
• Country of Origin: The Netherlands
• Certifications: CSA
• Seal Ring Max Temperature: 400 F (approx. 200 C)
• Finish: White semi-gloss (where specified)
• UPC: 8713645117768
• Status: Discontinued (manufacturer discontinued June 25, 2024)
