RIKON P10-324-3D Bandsaw 1-1/2 HP 14-Inch Replacement MPN

Product Description

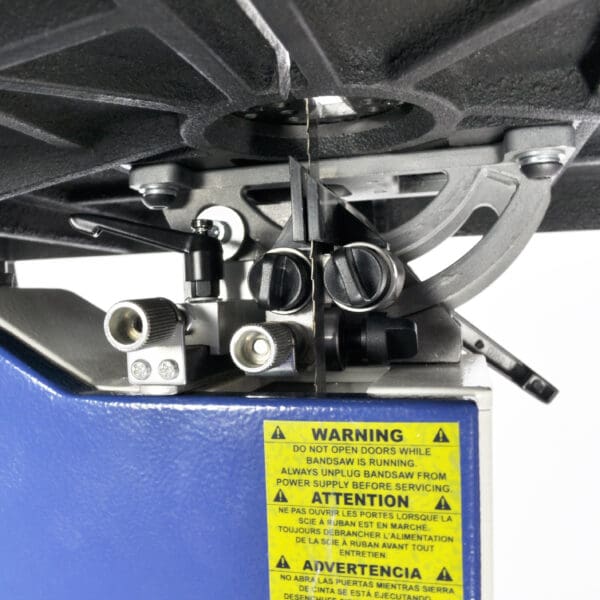

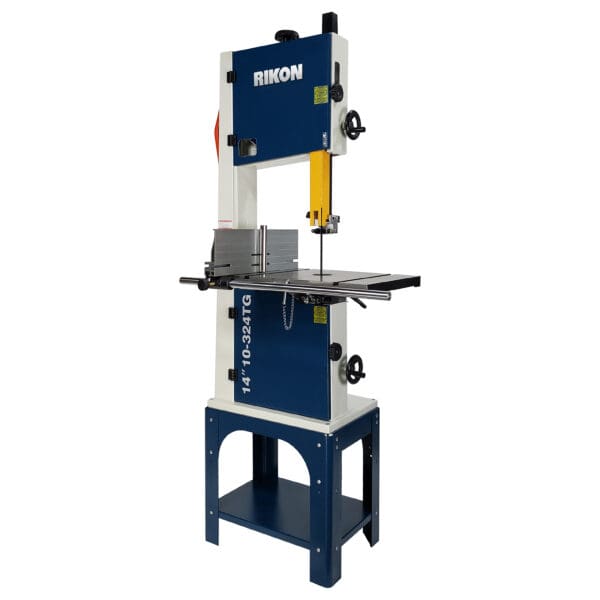

The RIKON P10-324-3D is a fourteen-inch bandsaw featuring tool-less blade guides and a quick-release blade tension lever. This model includes a hinged safety blade guard with a sight window, high work table height, and a base stand with additional storage. A six-inch tall rip fence with a re-saw bar is part of the package. Pre-lubricated, sealed thrust and side ball bearing guides deliver support for the blade.

• Tool-less blade guides facilitate quick adjustments.
• Quick-release blade tension lever enhances convenience.

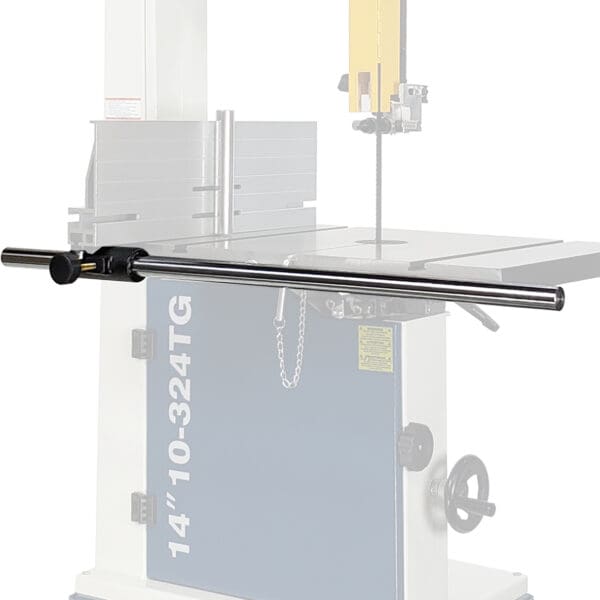

• Includes a robust rip fence for accurate cuts.

Product Highlights

The RIKON P10-324-3D bandsaw is ideal for woodworkers needing precision and efficiency. It provides reliable cutting capabilities for various materials while ensuring user safety with its design features.

Product Information

Standard Information

• Brand: RIKON
• MPN: P10-324-3D

Technical Specifications

• Motor Horsepower: 1-1/2 HP TEFC
• Motor Amps: 14/7
• Input Voltage: 115/230V, 60Hz, 1Ph
• Blade Speed: 1,445/2,950 FT/MIN
• Cutting Capacity Height: 13 inches
• Cutting Capacity Width: 13-5/8 inches
• Blade Width: 3/16 inch to 3/4 inch
• Blade Length: 111 inches
• Table Size: 21-1/2 inches x 15-3/4 inches
• Table Left Tilt: -5 degrees
• Table Right Tilt: 45 degrees
• Table Miter Gauge 'T' Slot: (2) 3/4 inches x 3/8 inches
• Table Height to Floor: 39-1/2 inches
• Table Height to Base: 20 inches
• Table Fence Size: 18-3/4 inches x 1-3/4 inches x 6 inches
• Wheel Material: Cast Aluminium
• Blade Guide Type: Tool-less
• Table Trunnion: Cast Aluminum
• Overall Height: 74-1/2 inches
• Overall Width: 30 inches
• Overall Depth: 25 inches
• Overall Base Size: 21-5/8 inches x 14-3/4 inches
• Dust Port: 1-1/4 inches
• Overall Net Weight: 218 lbs.
• Warranty: 5 Years
