Product Description

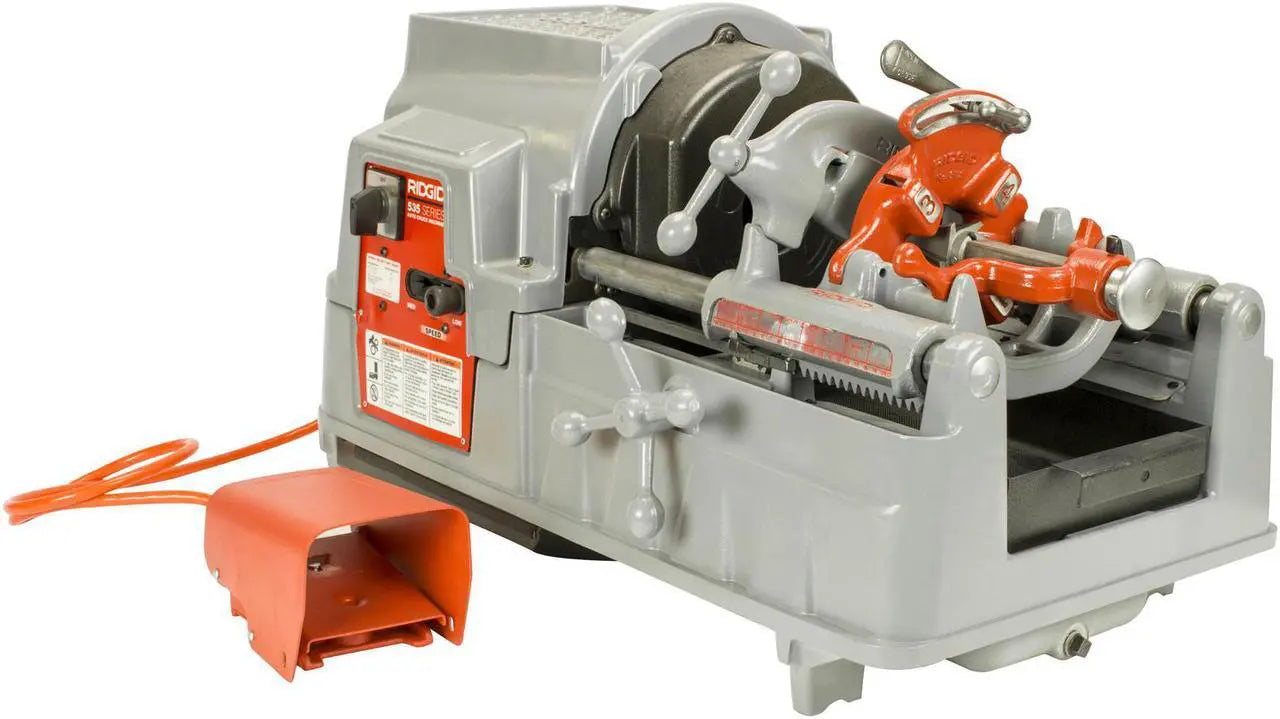

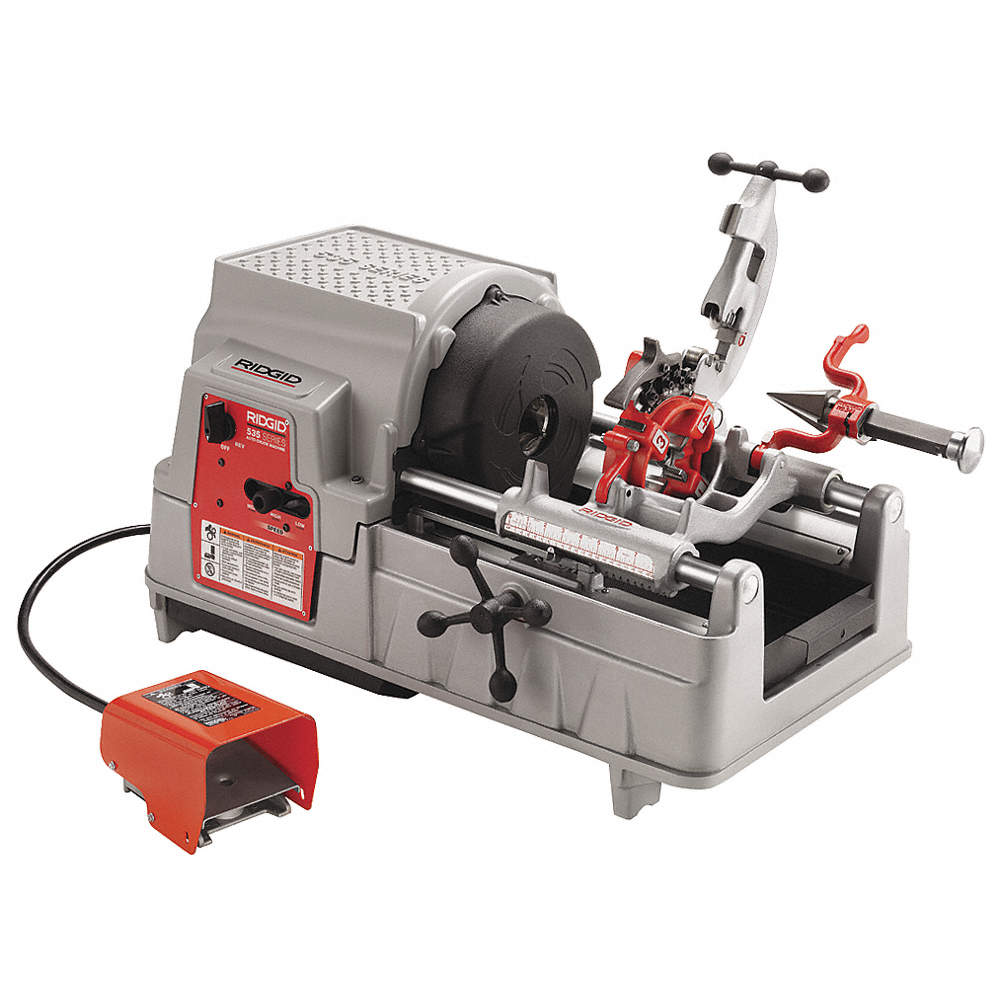

The RIDGID TOOLS 84097 535A-NPT-811A is an electric motor-driven machine that centers and chucks pipe, conduit, and bolt stock, rotating it for cutting, reaming, and threading. It features an automatic chuck for gripping and centering pipe. An integral oiling system floods the work with thread-cutting oil during operation.
- Large 1.75 gal oil reservoir
- Large chip tray

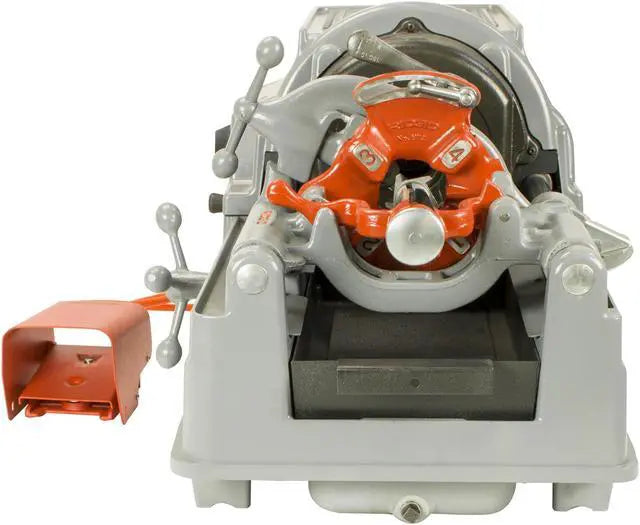

- Automatic chuck with reversible forged jaws centers and grips work piece instantly
Product Highlights
The 535A Threading Machine maintains ruggedness while enhancing threading productivity with a large chip tray and oil reservoir for longer, uninterrupted use.
Product Information
Standard Information
-
Brand: RIDGID TOOLS
-
Manufacturer Part Number: 84097
-
Country of Origin: United States
Technical Specifications
-
Amperage Rating: 18 A
-
Bare Tool/Kit: Kit
-
Bolt Size: 1/4 to 2 in
-
Control Type: Forward/Off/Reverse/Integral Foot Switch
-
Horsepower: 2 hp
-
Overall Length: 37 in
-
Overall Width: 29 in
-
Pipe Capacity: 1/8 in. to 2 in. (3 mm to 50 mm)
-
Reversing: Yes
-
Speed: 16/46/58 rpm
-
Voltage Rating: 120 VAC
-
Manufacturer: RIDGID TOOLS
-
Controls: Rotary Type Forward/Off/Reverse Switch; Switch Shifter knob for speed selection; integral foot switch
-
Chuck: Automatic with four reversible forged jaws
-
Rear Centering Device: Automatic, centering only
-
Cutter: Self-centering, full floating 820 wheel-type cutter
-
Reamer: 1/8 in. to 2 in. (3 mm to 50 mm), RH, five-flute cone
-
Oil Pump: Self-priming gerotor oil pump
-
Operating Speeds: 16/46/58 RPM
-
Motor: 2 HP, single-phase, 120 V, 60 Hz, 16/46/58 RPM
-
Motor Type: Single Phase
-
Electrical Voltage: 120 Volt
-
Material: Steel
-
Motor Size: 2 HP
-
Power: Corded
-
Product: Pipe Threader
-
Size: 2"
-
Speed Selection: 3 Speed
-
Trade Tool Type: Plumbing
-
Use: Plumbing Applications
-
Minimum Compatible Pipe Size: 1/8 in
-
Free Speed: 16 RPM, 46 RPM, 58 RPM
-
Includes: (2) Hex Wrenches, 1 gal Extreme Performance Thread Cutting Oil, Reamer, Cutter, Cutter Wheel, Universal Die Head
-
Phase: Single-Phase
-
Through-the-Head Oiling: Yes
-
Maximum Bolt Size: 2 in
-
Die Head Sizes: 1/2 in to 2 in
-

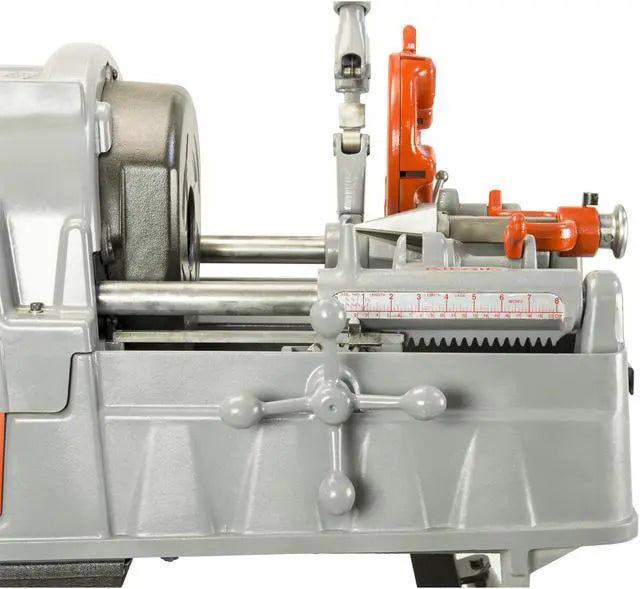

Features: Length Gauge
-
Kit Contents: Bare Tool
-
Mount Type: Stand
-
Overall Height: 21 in
-
Power Output: 1,500 W
-
Pump Type: Self-Priming Constant Flow Gerotor
-
Standards: CSA Approved And Approved To Ul Standard, Nrtlc
-
Threading Equipment Included: (2) Die Sets, Cutter, Die Head, Reamer
-
Maximum Compatible Pipe Size: 2 in
-
Number of Speeds: 3
-
Tool Series: 535A
-
Voltage: 120 V
-
Chuck Type: Automatic
-
Thread Standard of Included Dies: NPT
-
Minimum Bolt Size: 1/4 in
-
Current: 18 A
-
Frequency: 60 Hz
-
Machine Type: Stationary Power Threading Machine
-
Oil Capacity: 1.75 gal
-
Plug Type: Three-Prong
-
Power Source: Corded
-
Reversible: Yes
-
Switch Type: Forward/Off/Reverse and Integral Foot Switch
-
Tool Weight: 350 lb
-

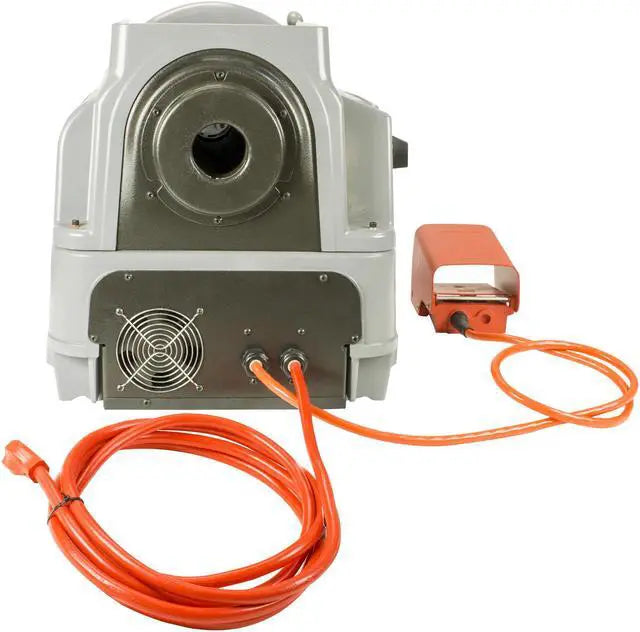

Motor Control: Reverse/Off/Forward controlled by a foot switch
-
Oiling Pump: Self-priming gerotor
-
Stand Adapter: Attach old-style 535 Automatic machines to new stand
-
For use with: 816/817 semi-automatic, 815 Self-opening, or 811A Quick-Opening Die Heads
